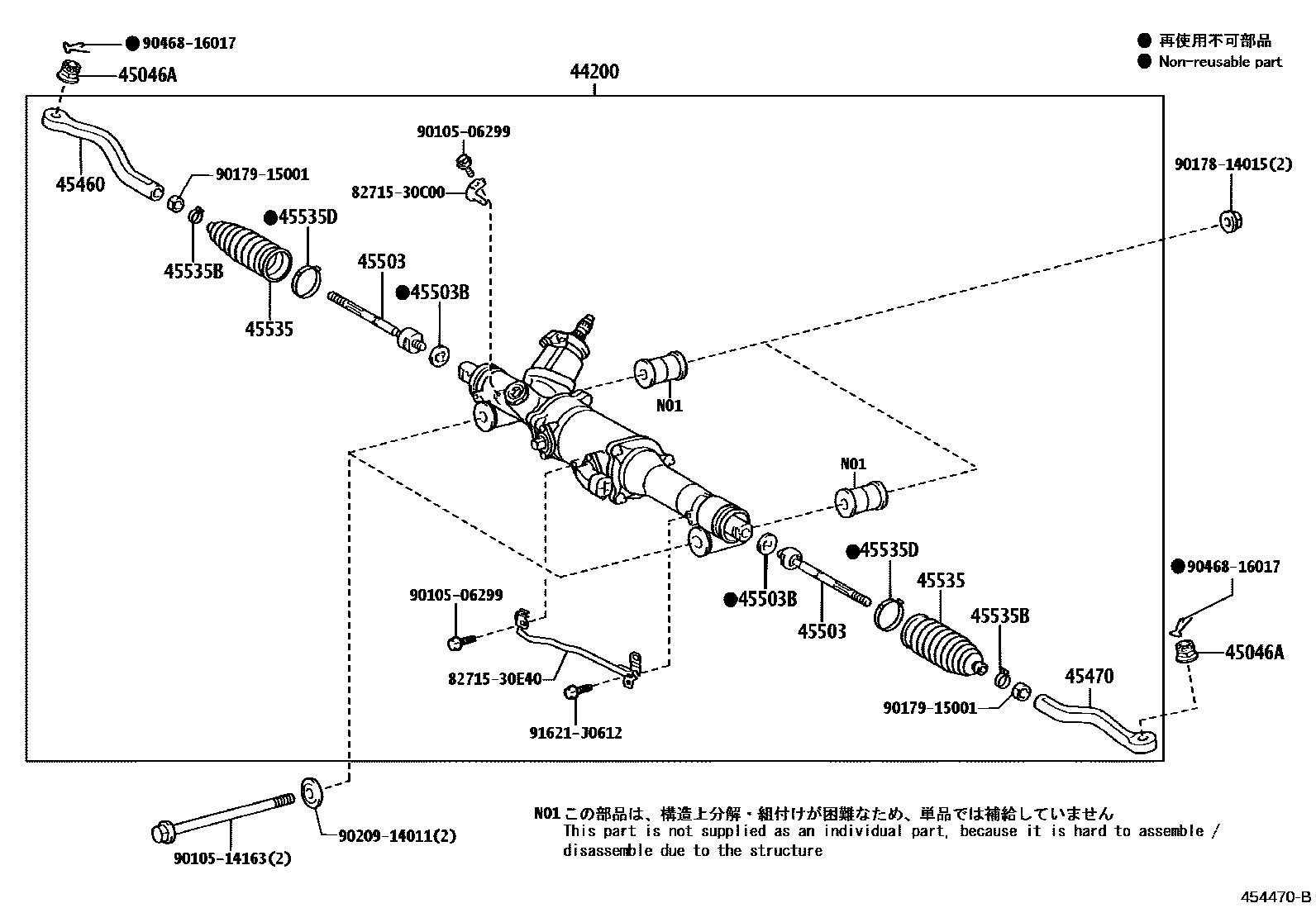

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1W(ACTIVE STABILIZER SUSPENSIO

44200LINK ASSY, POWER STEERING

main44200-30440iGWS191..RHD200602-200607

main44200-30450iGWS191..LHD200602-200608

main44200-30540iGWS191..RHD200608-200709

main44200-30550iGWS191..LHD200609-200709

main44200-30650iGWS191..RHD200709-201109

main44200-30660iGWS191..LHD200709-201109

main44200-30B00iGWS191..RHD201110-201112

main44200-30B10iGWS191..LHD201110-201112

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002iGWS191200602-200709

45460ROD ASSY, TIE, RH

main45463-30130iGWS191200602-200709

45470ROD ASSY, TIE, LH

main45464-30060iGWS191200602-200709

45503END SUB-ASSY, STEERING RACK

main45503-30070iGWS191200602-200709

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14011iGWS191200602-200709

OD=40

45535BOOT, STEERING RACK, NO.1

main45535-30030iGWS191200602-201110

main45535-59045iGWS191201110-201112

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iGWS191200602-200709

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016iGWS191200602-200709

8271530C00BRACKET,WIRING HARNESS CLAMP

main82715-30C00

8271530E40BRACKET,WIRING HARNESS CLAMP

main82715-30E40

9010506299

main90105-06299

9010514163

main90105-14163

9017814015

main90178-14015

9017915001

main90179-15001

9020914011

main90209-14011

9046816017

main90468-16017

91621J0612

main91621-J0612

18 parts on this diagram · 4 diagrams in section
