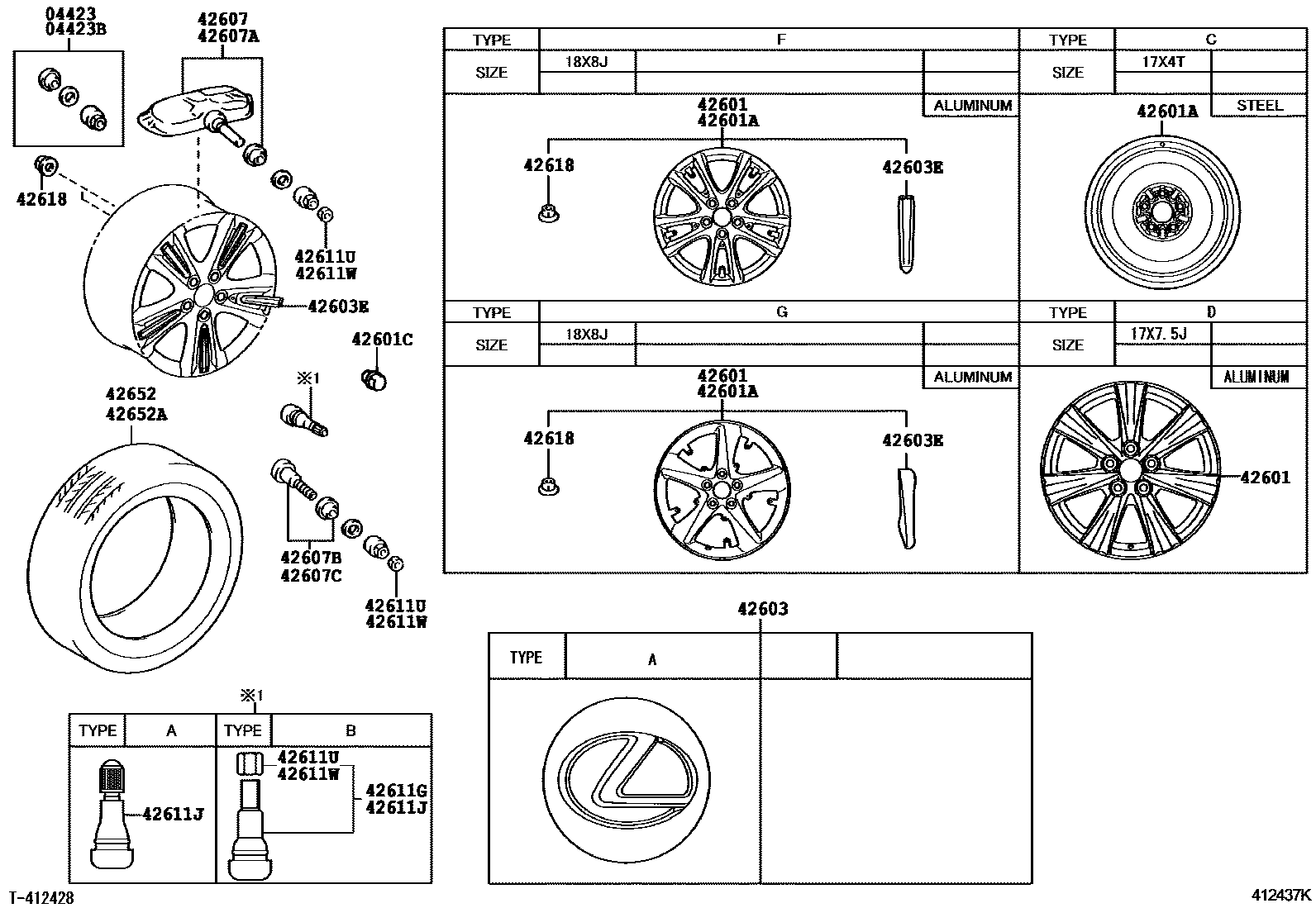

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030×4i200607-200709

sub04423-33060

main04423-35020×4i200602-200604

main04423-42010×4i200604-200607

04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)

main04423-33030i200709-200801

sub04423-33060

42601WHEEL, DISC

main42601-30050×4i200709-200909

18X8J, #,SERBIA,BOSNIA & HERZEGOVINA,BELARUS SPEC&SPARE TIRE-GROUND TIRE(ALUMI),TYPE F:REFER ILLUST.

main42601-30040×4i200602-200709

18X8J, #,AUSTRALIA SPEC,TYPE F:REFER ILLUST.

main42601-30070×4i200804-200909

18X8J,RUSSIA SPEC,TYPE F:REFER ILLUST.

main42601-30080×4i200909-201112

18X8J, #,TAIWAN SPEC,TYPE G:REFER ILLUST.

main42601-30100×4i201101-201112

18X8J, #,RUSSIA SPEC&SPARE TIRE-GROUND TIRE(ALUMI),TYPE G:REFER ILLUST.

sub42601-30101

main4261A-30020×4supersedes 42601-30090i200909-201002

17X7.5J, #,TIRE & DISC WHEEL-225/50R17 SUMMER TIRE 7.5J,TYPE D:REFER ILLUST.

main4261A-30110×4supersedes 42601-30050i201003-201112

17X7.5J, #,TIRE & DISC WHEEL-225/50R17 SUMMER TIRE 7.5J,TYPE D:REFER ILLUST.

sub4261A-30111

42601AWHEEL, DISC (FOR SPARE)

main42611-30A60i200709-200908

17X4T,SERBIA,BOSNIA & HERZEGOVINA,BELARUS SPEC&SPARE TIRE-GROUND TIRE(ALUMI),TYPEC:REFER ILLUST.

main42611-53320i200909-201112

17X4T,SERBIA,BOSNIA & HERZEGOVINA,BELARUS SPEC&SPARE TIRE-GROUND TIRE(ALUMI),TYPEC:REFER ILLUST.

sub42611-53321

main42601-30040i200809-200909

18X8J, #,CHINA SPEC,TYPE F:REFER ILLUST.

main42601-30070i200809-200909

18X8J,RUSSIA SPEC,TYPE F:REFER ILLUST.

main42601-30080i200909-201112

18X8J, #,SINGAPORE SPEC,TYPE G:REFER ILLUST.

main42601-30090i200909-201101

18X8J, #,UKRAINE SPEC&SPARE TIRE-GROUND TIRE(ALUMI),TYPE G:REFER ILLUST.

sub42601-30091

main42601-30100i200909-201101

18X8J, #,RUSSIA SPEC&SPARE TIRE-GROUND TIRE(ALUMI),TYPE G:REFER ILLUST.

sub42601-30101

42601CNUT, HUB (FOR AXLE)

main90942-01033×20i200602-200709

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30540×4i200602-200709

*ALU,TYPE A:REFER ILLUST.

main42603-30590×4supersedes 42603-50300i200909

*CHR,TIRE & DISC WHEEL-225/50R17 SUMMER TIRE 7.5J,TYPE A:REFER ILLUST.

main42603-30660×4i200802-200909

*ALU,RUSSIA SPEC,TYPE A:REFER ILLUST.

main42603-50340×4i200909

*ALU,RUSSIA SPEC,TYPE A:REFER ILLUST.

42603EGARNISH SUB-ASSY, WHEEL HUB

main42603-30620×20i200602-200709

main4260B-30010×20i200709-200909

SERBIA,BOSNIA & HERZEGOVINA,BELARUS SPEC&SPARE TIRE-GROUND TIRE(ALUMI)

main4260B-30030×20i200909-201111

SERBIA,BOSNIA & HERZEGOVINA,BELARUS SPEC&SPARE TIRE-GROUND TIRE(ALUMI)

main4260B-30020×25i200809-200909

RUSSIA SPEC

main4260B-30040×25i200909-201111

RUSSIA SPEC&SPARE TIRE-GROUND TIRE(ALUMI)

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-30040×4i200602-200607

sub42607-30041

main42607-50010×4i200709-200908

SERBIA,BOSNIA & HERZEGOVINA,BELARUS SPEC&SPARE TIRE-GROUND TIRE(ALUMI)

main42607-50011×4i200909-201112

SERBIA,BOSNIA & HERZEGOVINA,BELARUS SPEC&SPARE TIRE-GROUND TIRE(ALUMI)

sub42607-50012

main42607-33021×4i200709-201112

TAIWAN SPEC

sub42607-33022

42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)

main42607-50010i200809-200908

TURKEY SPEC

main42607-50011i200909

SOUTH AFRICA SPEC

sub42607-50012

42607BVALVE SUB-ASSY, TIRE PRESSURE BALANCER

main42607-35020×4i200909-201001

UKRAINE SPEC&SPARE TIRE-GROUND TIRE(ALUMI)

sub90942-05041

42607CVALVE SUB-ASSY, TIRE PRESSURE BALANCER (FOR SPARE)

main42607-35020i200909-201001

UKRAINE SPEC&SPARE TIRE-GROUND TIRE(ALUMI)

sub90942-05041

42611GVALVE (FOR TUBELESS TIRE)

main90942-05028×4i201001

SINGAPORE SPEC,TYPE B:REFER ILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i200709-201112

SERBIA,BOSNIA & HERZEGOVINA,BELARUS SPEC&SPARE TIRE-GROUND TIRE(ALUMI)

main90942-05028i201001-201112

SINGAPORE SPEC

42611UCAP, TIRE VALVE

main90942-05037×4i200602-200709

main90942-05029×4i200809-201111

SINGAPORE SPEC

42611WCAP, TIRE VALVE (FOR SPARE)

main90942-05029i200809-201111

SINGAPORE SPEC

main90942-05037i200809-200909

TURKEY SPEC

42618RETAINER, WHEEL CAP

main42618-24010

42652TIRE

main42652-58050

main42652-24333

main42652-24341

main42652-24343

main42652-24344

main42652-24351

main42652-24353

main42652-24354

main42652-24372

main42652-30801

main42652-30811

main42652-30812

main42652-30830

main42652-30831

main42652-30840

main42652-30841

main42652-30842

main42652-30A31

main42652-30A51

main42652-30A52

main42652-30A60

main42652-30A61

main42652-30A70

main42652-30A71

main42652-30A72

main42652-30C00

main42652-30C10

main42652-30C20

main42652-30D10

main42652-30D11

main42652-30D20

main42652-30D21

42652ATIRE (FOR SPARE)

main42652-30C00supersedes 42652-30C00i200602-200709

T155/70D17,*T/Y

main42652-58050supersedes 42652-58050i200709-201112

T155/70D17,*D/L

18 parts on this diagram · 2 diagrams in section
