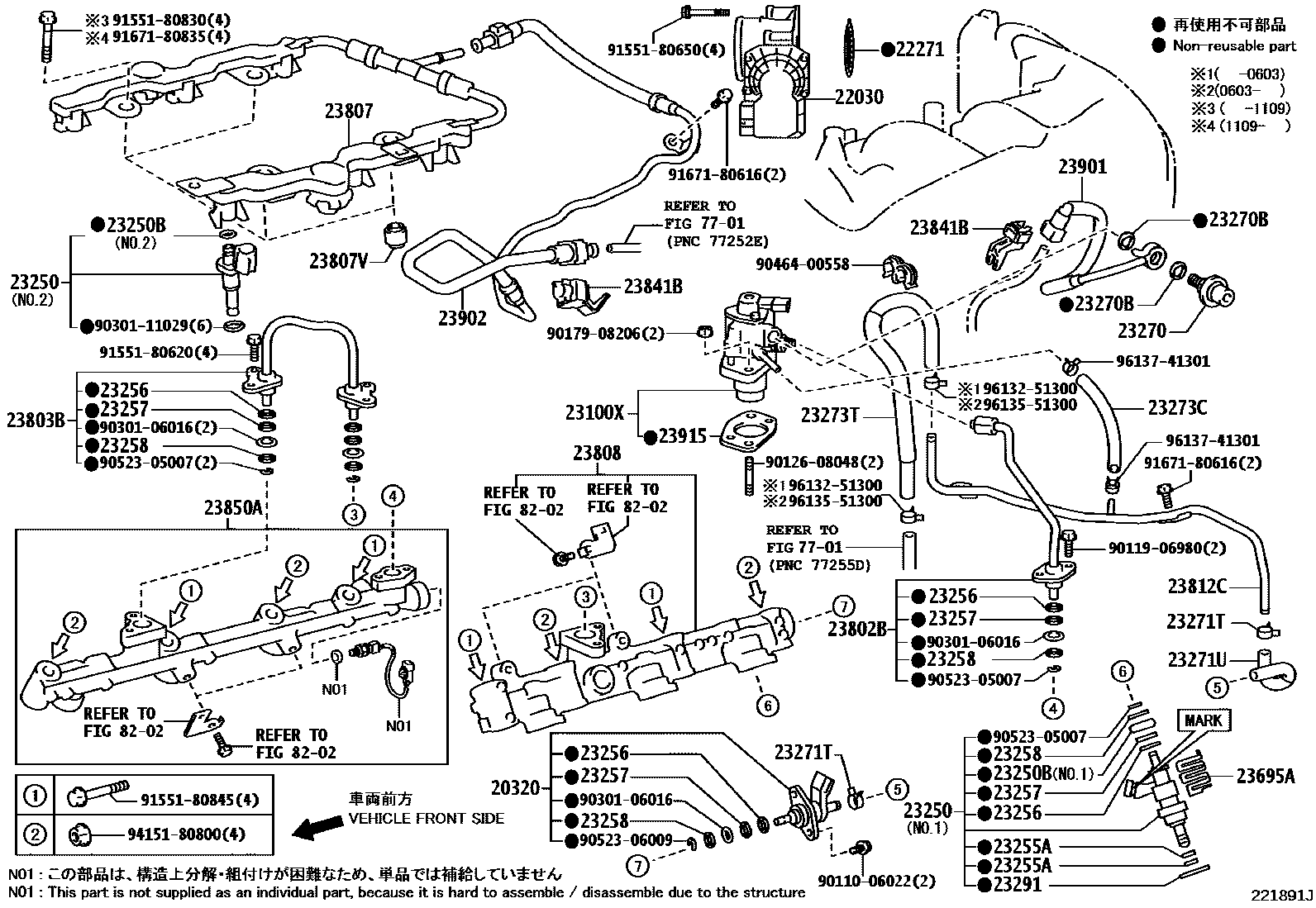

FUEL INJECTION SYSTEM

20320VALVE ASSY, FUEL RELIEF

main20320-31020i2GRFSE..GWS191200709-201112

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31040i2GRFSE..GWS191200602-200709

22271GASKET, THROTTLE BODY

main22271-31020i2GRFSE..GWS191200602-200709

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23100-39617i2GRFSE..GWS191200602-200709

main23100-39618i2GRFSE..GWS191200909-201108

main23100-39645i2GRFSE..GWS191201108-201111

23250INJECTOR ASSY, FUEL

main23209-31070×6i2GRFSE..GWS191200709

NO.2

main23209-39105-A0×6i2GRFSE..GWS191200602-200608

MARK BLACK,NO.1

main23209-39105-B0×6i2GRFSE..GWS191200602-200608

MARK BROWN,NO.1

main23209-39155-A0×6i2GRFSE..GWS191200709

MARK YELLOW,NO.1

main23209-39155-B0×6i2GRFSE..GWS191200608-200709

MARK BLACK,NO.1

main23209-39155-C0×6i2GRFSE..GWS191200709

MARK BROWN,NO.1

main23209-39155-D0×6i2GRFSE..GWS191200608-200709

MARK GREEN,NO.1

23250BRING, O(FOR FUEL INJECTOR)

main90301-06017×6i2GRFSE..GWS191200709

NO.2

main90301-06018×6i2GRFSE..GWS191200709

NO.1

23255ASEAL, FUEL INJECTOR

main23255-31010×12i2GRFSE..GWS191200602-200709

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-74010×10i2GRFSE..GWS191200602-200709

23257RING, FUEL INJECTOR BACK-UP, NO.2

main23257-74010×10i2GRFSE..GWS191200602-200709

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-28011×10i2GRFSE..GWS191200602-200709

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-31010i2GRFSE..GWS191200602-200709

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23279-74010×2i2GRFSE..GWS191200602-200709

23271TCLAMP OR CLIP(FOR FUEL HOSE)

main96137-51501×2i2GRFSE..GWS191200602-200709

23271UHOSE, FUEL, NO.1

main23271-31070i2GRFSE..GWS191200602-200709

23273CHOSE, FUEL, NO.2

main23273-31050i2GRFSE..GWS191200602-200709

23273THOSE, FUEL, NO.3

main23273-31080i2GRFSE..GWS191200602-200709

23291INSULATOR, INJECTOR VIBRATION

main23291-31011×6i2GRFSE..GWS191200602-200709

23695ACLAMP, NOZZLE HOLDER

main23695-31010×6i2GRFSE..GWS191200602-200709

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31042i2GRFSE..GWS191200602-200611

main23802-31043i2GRFSE..GWS191200611-200709

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-31012i2GRFSE..GWS191200602-200611

main23803-31013i2GRFSE..GWS191200611-200709

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31061i2GRFSE..GWS191200602-200709

main23807-31062i2GRFSE..GWS191201111-201112

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08023×4i2GRFSE..GWS191200602-200709

23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2

main23808-31040i2GRFSE..GWS191200602-200709

main23808-31080i2GRFSE..GWS191201008-201112

23812CPIPE, FUEL, NO.2

main23812-31030i2GRFSE..GWS191200709-201111

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050×2i2GRFSE..GWS191200705-200709

main23841-28010×2i2GRFSE..GWS191200602-200704

23850APIPE ASSY, FUEL DELIVERY W/SENSOR, RH

main23850-31010i2GRFSE..GWS191200602-200709

23901TUBE SUB-ASSY, FUEL

main23901-31110i2GRFSE..GWS191..LHD200602-200709

main23901-31140i2GRFSE..GWS191..RHD200602-200709

main23901-31310i2GRFSE..GWS191..RHD201110-201112

23902TUBE SUB-ASSY, FUEL

main23902-31031i2GRFSE..GWS191200602-200709

main23902-31032i2GRFSE..GWS191201111-201112

23915INSULATOR, FUEL PUMP

main23915-46011i2GRFSE..GWS191200602-200709

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8202WIRING & CLAMP

→ Go to FIG 82-02

9011006022

main90110-06022

9011906980

main90119-06980

9012608048

main90126-08048

9017908206

main90179-08206

9030106016

main90301-06016

9030111029

main90301-11029

9046400558

main90464-00558

9052305007

main90523-05007

9052306009

main90523-06009

9155180620

main91551-80620

9155180650

main91551-80650

9155180830

main91551-80830

9155180845

main91551-80845

9167180616

main91671-80616

9167180835

main91671-80835

9415180800

main94151-80800

9613251300

main96132-51300

9613551300

main96135-51300

9613741301

main96137-41301

50 parts on this diagram · 1 diagram in section
