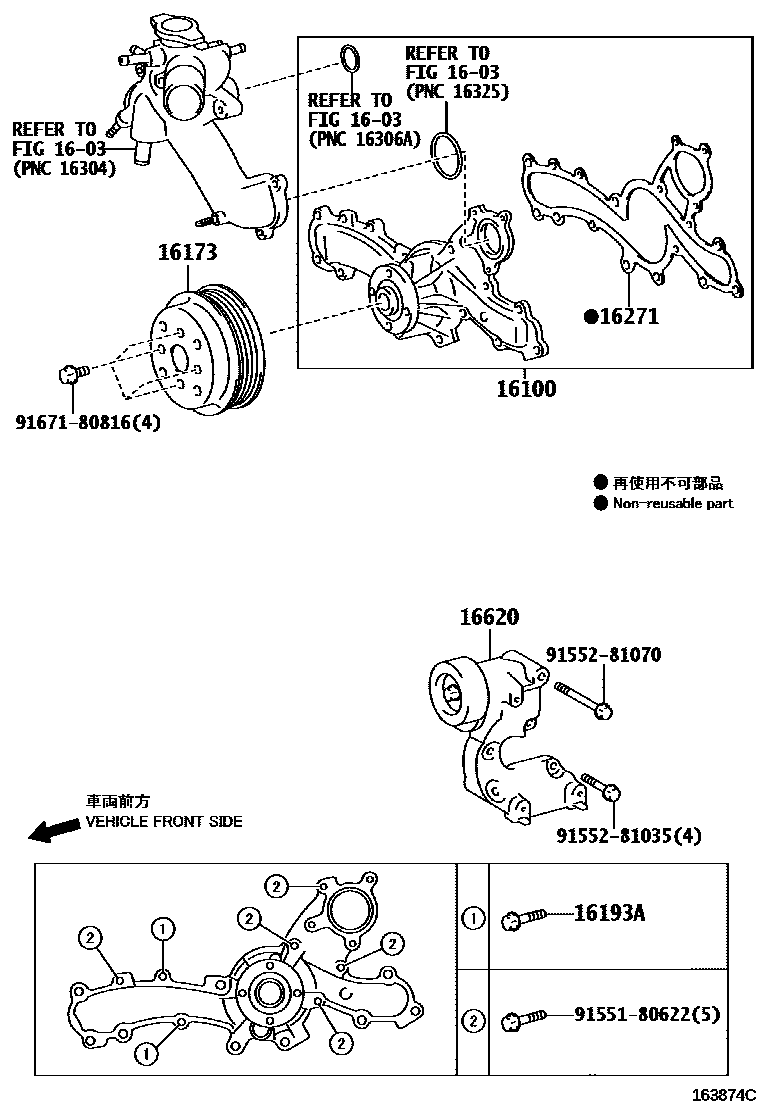

WATER PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-39435i2GRFSE..GWS191200602-200709

main16100-39436i2GRFSE..GWS191200903

16173PULLEY, WATER PUMP

main16173-31010i2GRFSE..GWS191200602-200709

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080×2i2GRFSE..GWS191200602-200709

16271GASKET, WATER PUMP

main16271-31020i2GRFSE..GWS191200602-200709

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31060i2GRFSE..GWS191200602-200709

9155180622

main91551-80622

9155281035

main91552-81035

9155281070

main91552-81070

9167180816

main91671-80816

10 parts on this diagram · 1 diagram in section
