ENGINE OVERHAUL GASKET KIT

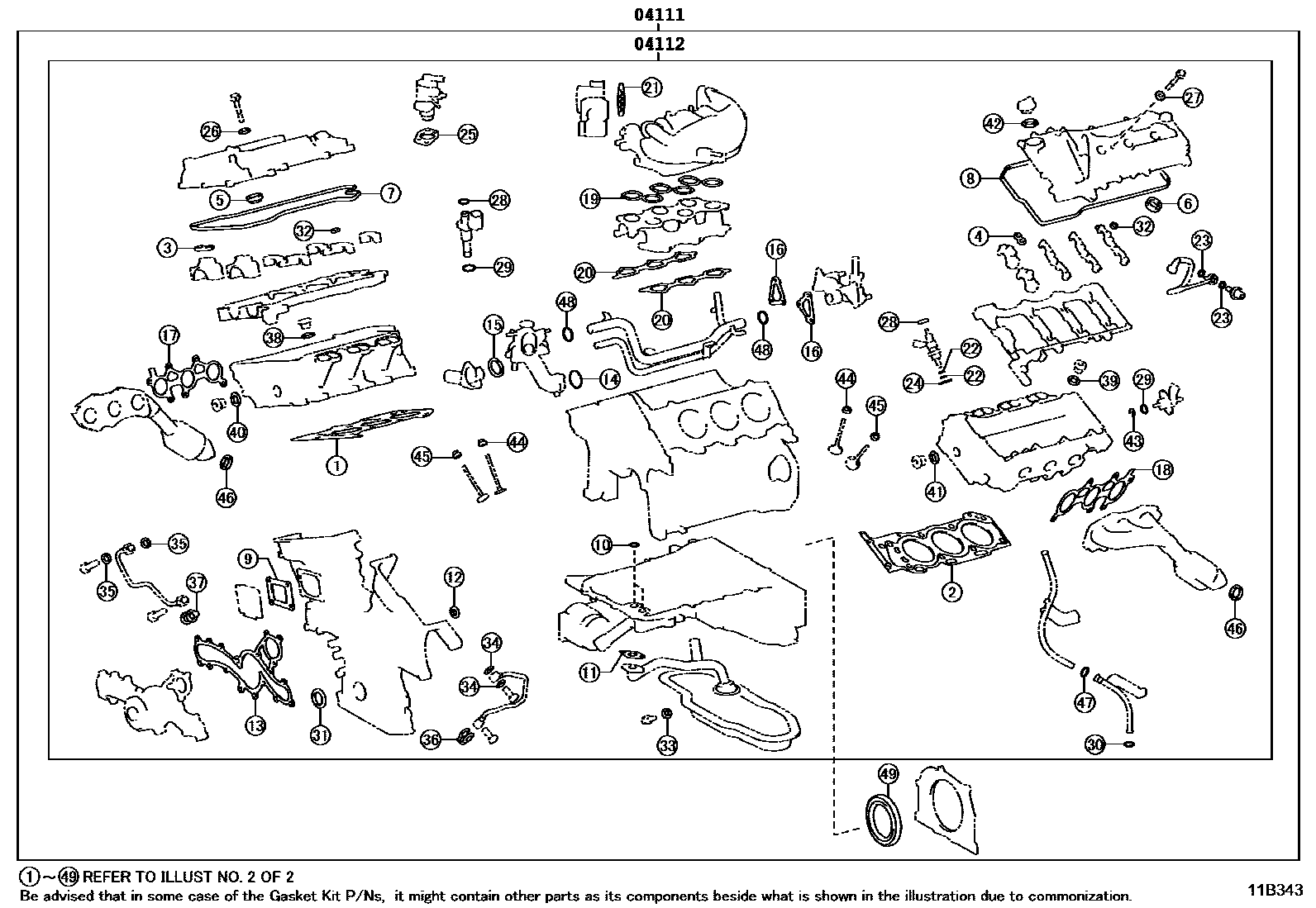

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-31610i200602-200802

main04111-31770i200802-201108

main04111-31771i201108-201112

04112GASKET KIT, ENGINE VALVE GRIND

main04112-31390i200602-201108

main04112-31391i201108-201112

2 parts on this diagram · 2 diagrams in section
