SLOPE & POWER LIFT

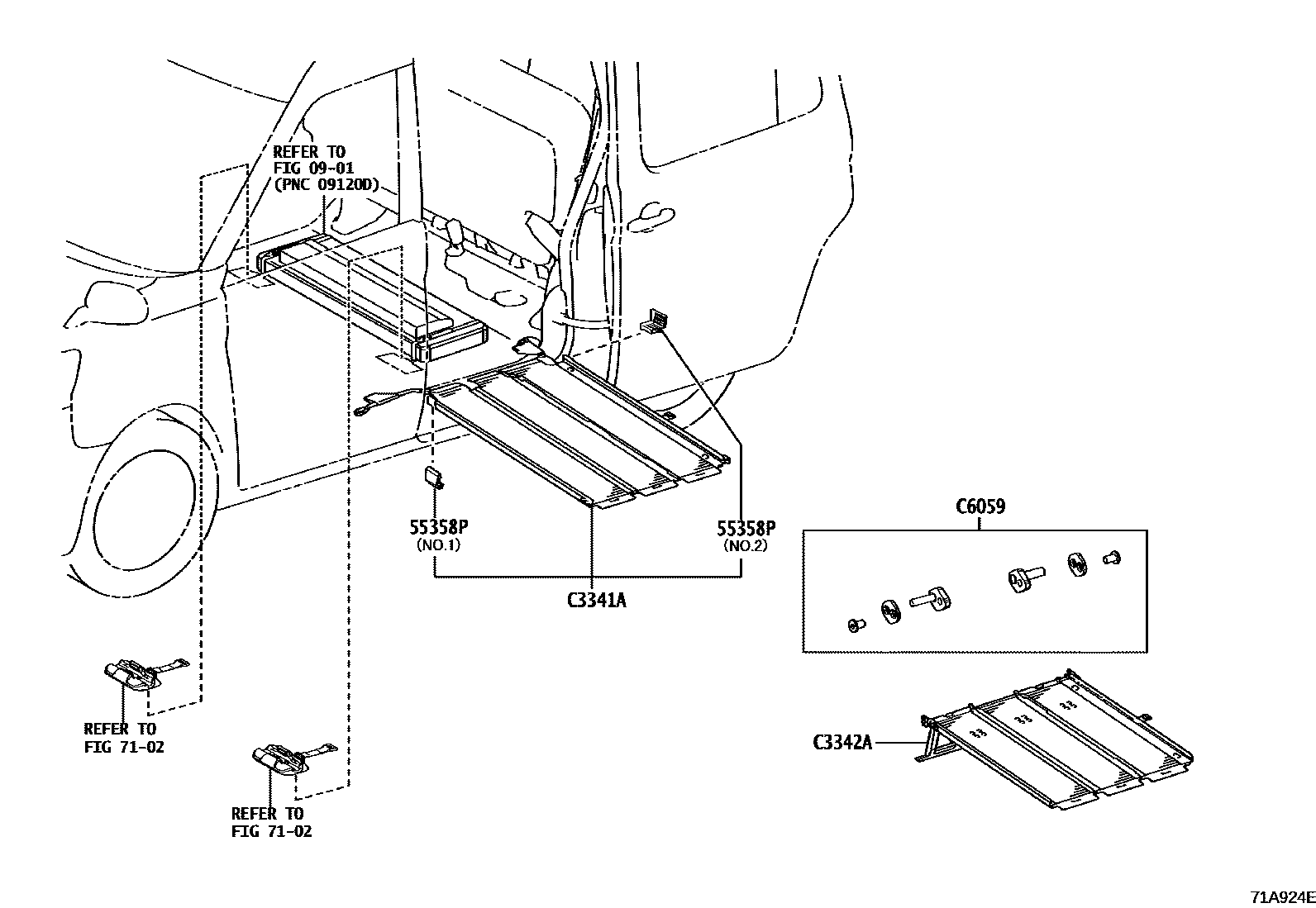

Parts diagram
0901STANDARD TOOL
→ Go to FIG 09-01
55358PPROTECTOR, EDGE
main55358-15020i201710-201903
NO.1:REFER ILLUST.
main55358-15030i201710-201912
NO.2:REFER ILLUST.
main55358-15040i201903-201912
NO.1:REFER ILLUST.
main55358-15050i201912
NO.2:REFER ILLUST.
main55358-15060i201912
NO.1:REFER ILLUST.
7102REAR SEAT & SEAT TRACK
→ Go to FIG 71-02
C3341ASLOPE, SIDE DOOR, NO.1
mainC334115030i201903-201911
mainC334115031i201912-202001
mainC334115032i202001
mainC334115060i201710-201903
C3342ASLOPE, SIDE DOOR, NO.2
mainC334215030i201903-201911
mainC334215031i201912-202001
mainC334215032i202001
mainC334215060i201710-201903
C6059HOLDER KIT, WHEEL CHAIR
mainC605915030i201710-201903

6 parts on this diagram · 4 diagrams in section
