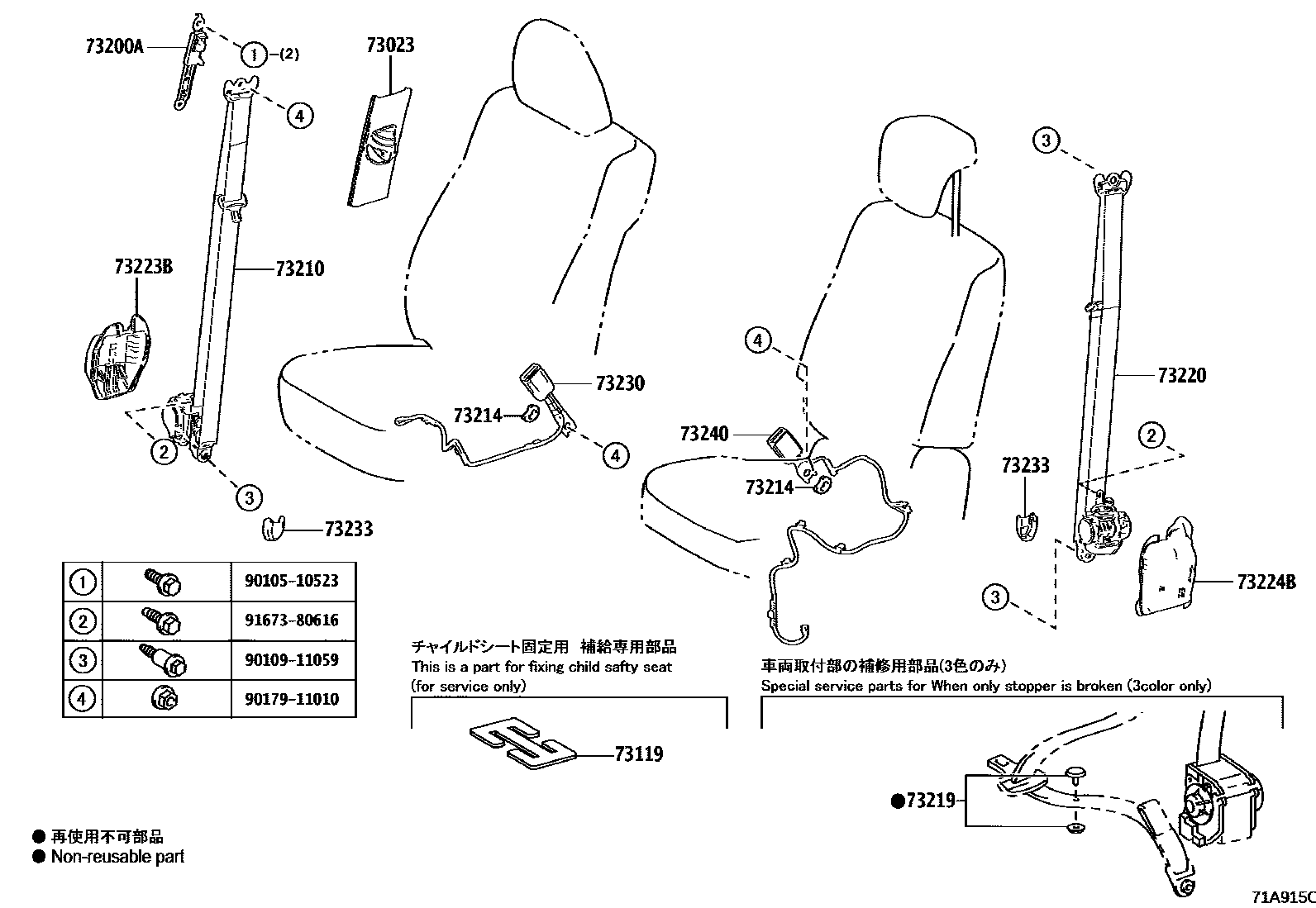

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-58010-B0iNTP10201710

LT.GRAY,TRIM4#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iNTP10201710

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iNTP10201710

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-15010-C2iNTP10201710

BLACK,TRIM4#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iNTP10201710

73219STOPPER, TONGUE PLATE

main73219-33010iNTP10201710

BLACK

main73219-33020iNTP10201710

GRAY

main73219-33030iNTP10201710

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-15010-C2iNTP10201710

BLACK,TRIM4#

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-15010iNTP10201710

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-15010iNTP10201710

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-15010-C1iNTP10201710

BLACK,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2iNTP10201710

BLACK,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-15020-C1iNTP10201710

BLACK,TRIM4#

9010510523

main90105-10523

9010911059

main90109-11059

9017911010

main90179-11010

9167380616

main91673-80616

16 parts on this diagram · 2 diagrams in section
