Toyota COMFORT — COWL PANEL & WINDSHIELD GLASS

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53383BSEAL, HOOD TO COWL TOP

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

55700BCOWL ASSY

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

55708-15010

55712PANEL, COWL TOP OUTSIDE, FRONT

55712-15020

55735DSEAL, FRONT AIR SHUTTER, RH

55736GSEAL, FRONT AIR SHUTTER, LH

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

55781GCLIP, COWL TOP VENTILATOR LOUVER

55783ELOUVER, COWL TOP VENTILATOR, CENTER

56111GLASS, WINDSHIELD

56101-15900

56101-15903

56101-15910

56115ASTOPPER, WINDSHIELD GLASS, NO.1

56116CSTOPPER, WINDSHIELD GLASS, NO.2

56117ADAM, WINDOW GLASS ADHESIVE

56153CMOULDING, FRONT WINDOW, INNER CENTER

5701HOLE PLUG

→ Go to FIG 57-01

75533GMOULDING, WINDSHIELD, OUTSIDE

9011906786

90119-06786

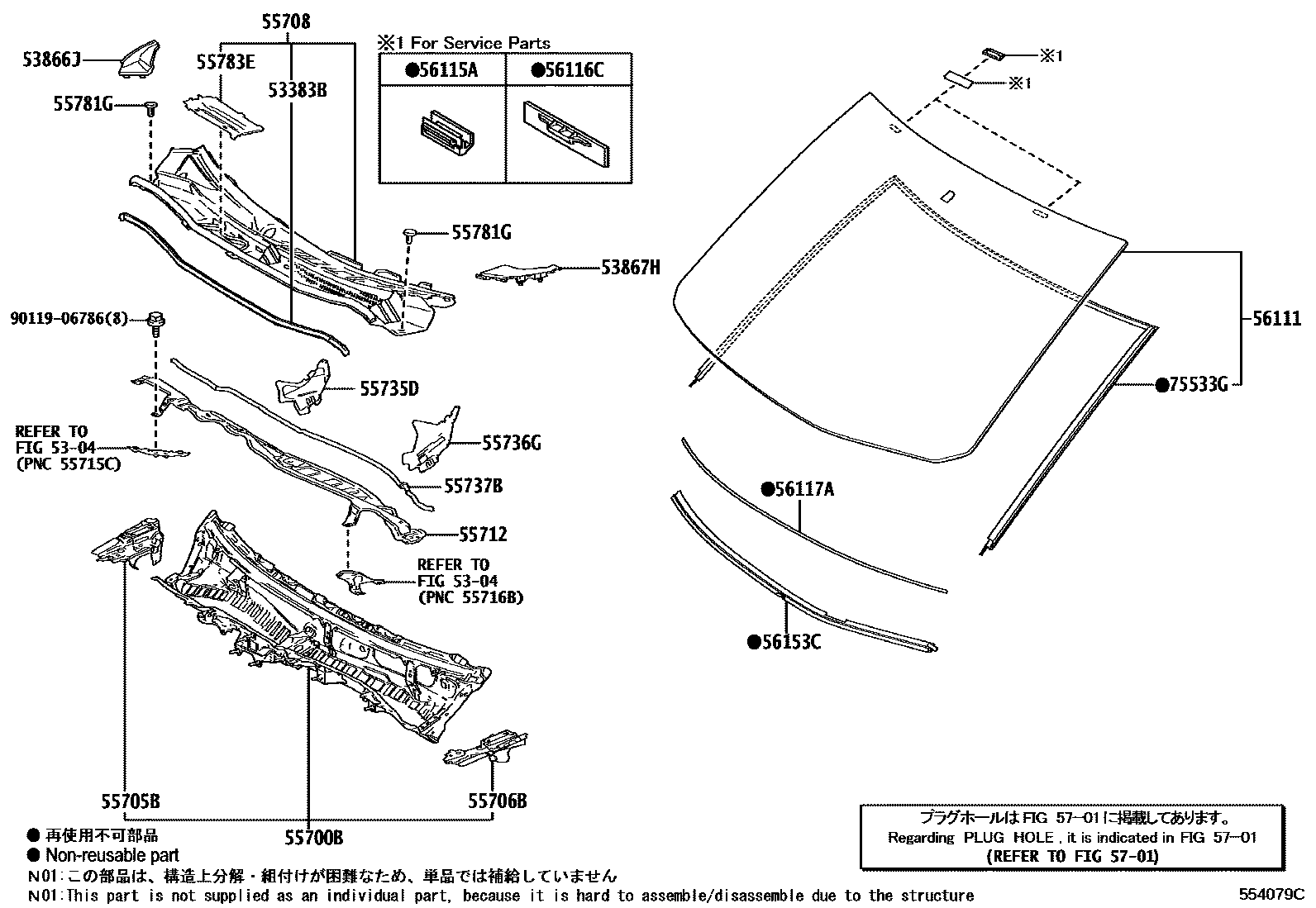

22 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota COMFORT

This section contains 22 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota COMFORT. Key components include: FRONT FENDER APRON & DASH PANEL, SEAL, HOOD TO COWL TOP, SEAL, FRONT FENDER TO COWL SIDE, RH, SEAL, FRONT FENDER TO COWL SIDE, LH, COWL ASSY.
