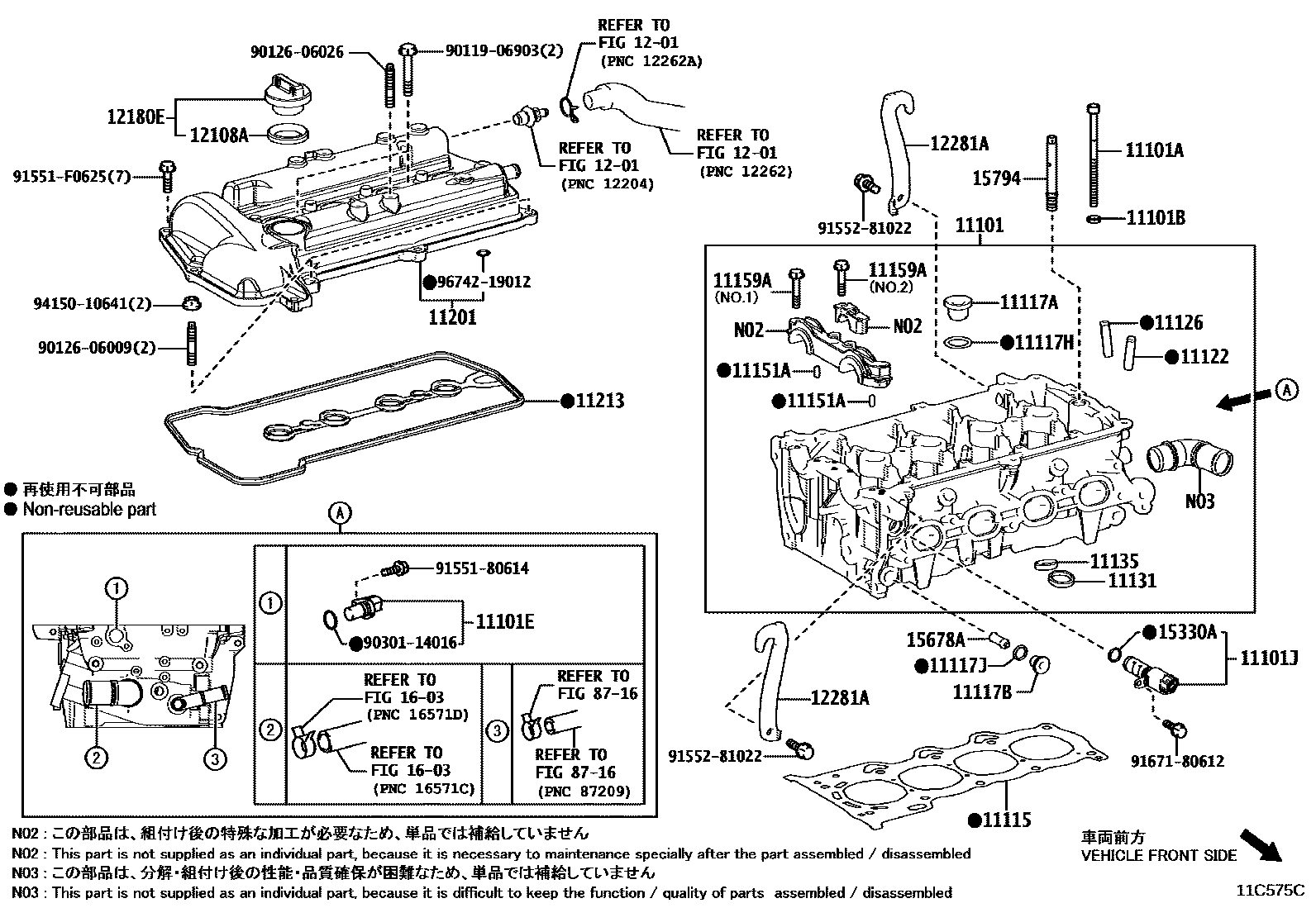

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11115GASKET, CYLINDER HEAD
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=14,OD=6
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
1201
12108AGASKET(FOR OIL FILLER CAP)
12180ECAP ASSY, OIL FILLER
12281AHANGER, ENGINE, NO.1
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
15794NOZZLE, CYLINDER HEAD OIL
1603
8716
9011906903
main90119-06903
9012606009
main90126-06009
9012606026
main90126-06026
9030114016
main90301-14016
9155180614
main91551-80614
91551F0625
main91551-F0625
9155281022
main91552-81022
9167180612
main91671-80612
9415010641
main94150-10641
9674219012
main96742-19012
37 parts on this diagram · 1 diagram in section
