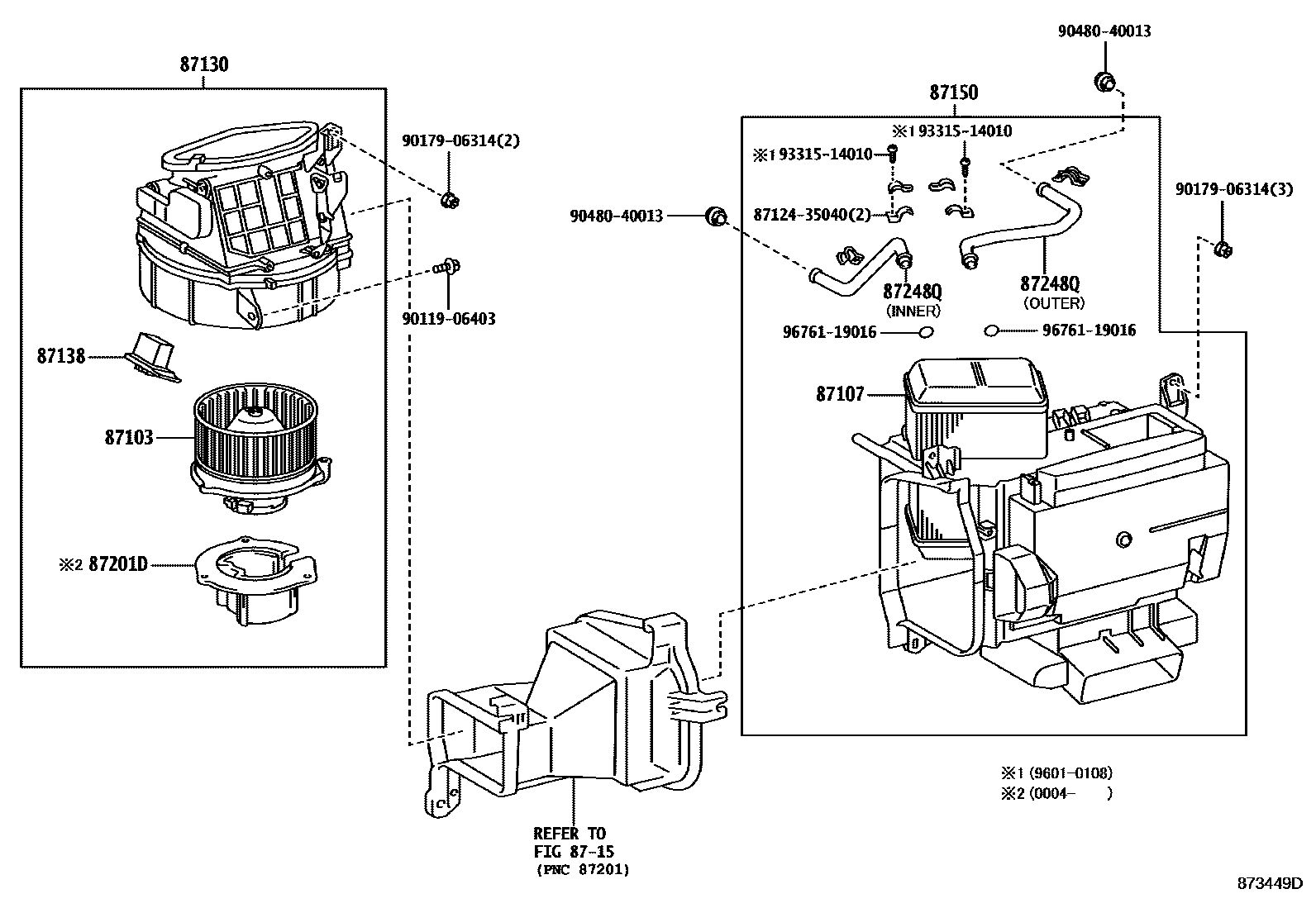

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-43010iLXS12200108-200607

main87103-43011iTSS10,YXS10200709-201606

main87103-43012iTSS10201607

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-43010iYXS10..4HC200108-200708

main87107-43020iYXS10200709-200808

87130BLOWER ASSY, HEATER, FRONT

main87130-43010iLXS1#,YXS10199601-200004

main87130-43020iLXS12,YXS10200004-200108

main87130-43021iTSS10,YXS10200709-201606

main87130-43022iTSS10201607

87138RESISTOR, HEATER BLOWER

main87138-43010iTSS10,YXS10200709

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87150RADIATOR ASSY, HEATER

main87150-43010iLXS1#,YXS10199601-200108

main87150-43011iYXS10200709-200808

87201DDUCT SUB-ASSY, AIR

main87201-43010iLXS12,YXS10200004-200108

87248QPIPE, FRONT HEATER RADIATOR WATER

main87248-43010iLXS1#,YXS10199601-200108

INNER

main87248-43020iYXS10200709-200808

OUTER

8712435040CLAMP, HEATER

main87124-35040

9011906403

main90119-06403

9017906314

main90179-06314

9048040013

main90480-40013

9331514010

main93315-14010

9676119016

main96761-19016

14 parts on this diagram · 1 diagram in section
