WIRING & CLAMP

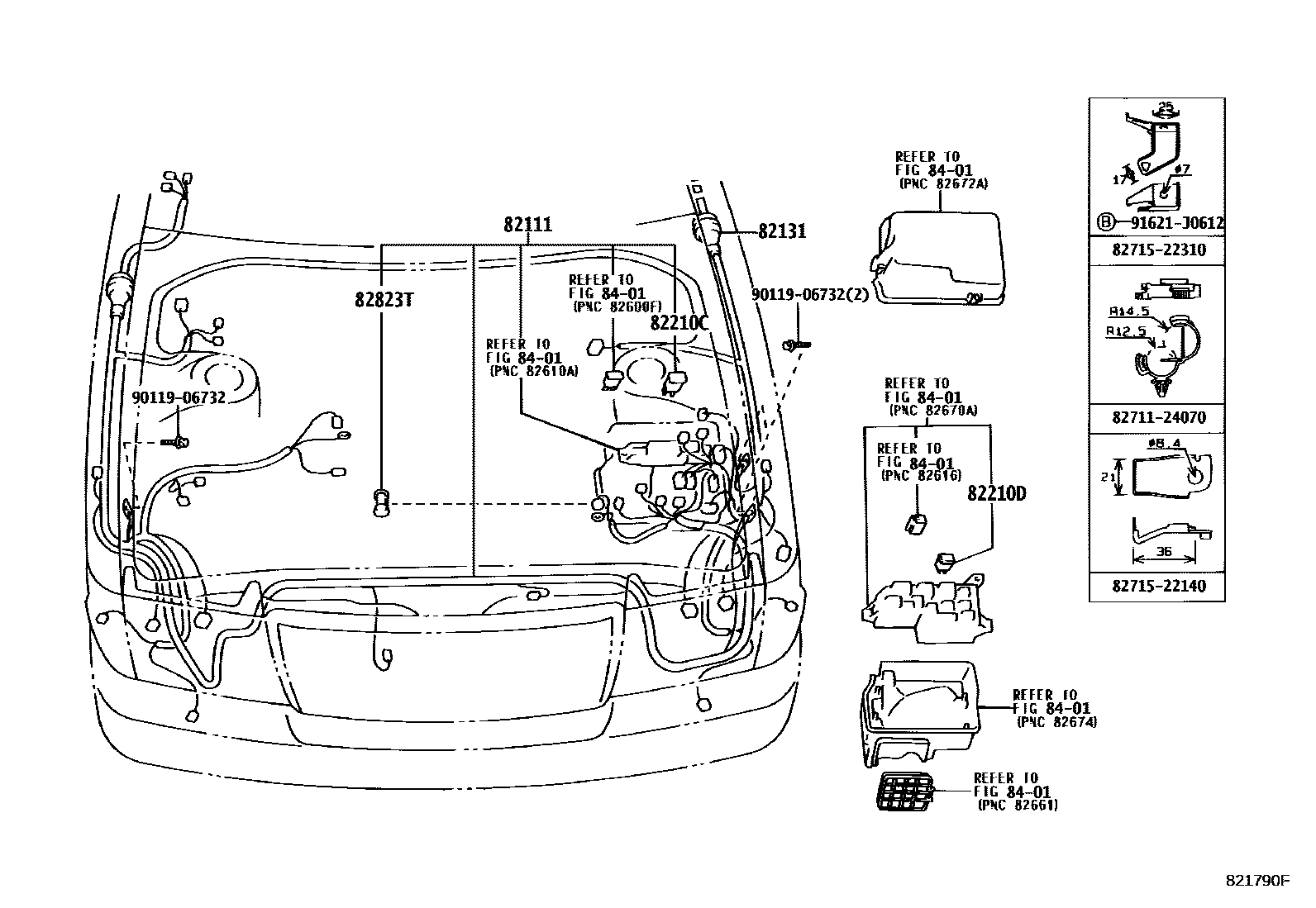

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-43020i199601-199701

main82111-43021i199701-199901

main82111-43022i199901-200108

main82111-43023i200108-200406

main82111-43024i200406-200607

main82111-43180i199802-200108

main82111-43220i199908-200108

main82111-43221i200108-200312

main82111-43222i200406-200709

main82111-43350i200808-201310

main82111-43351i201310

82131WIRE, COWL

main82131-43050i199601-199701

main82131-43051i199701-199901

main82131-43230i199701-199802

W(*80)

main82131-43480i199802-200108

main82131-43481i200108-200406

main82131-43482i200406-200607

main82131-43780i199908-200001

main82131-43781i200001-200108

main82131-43782i200108-200406

main82131-43783i200709-200808

main82131-43830i200001-200108

W(TACHOMETER)

main82131-43831i200108-200312

W(TACHOMETER)

main82131-43832i200406-200709

W(TACHOMETER)

main82131-43C20i200509

WELCAB(HONG KONG)

main82131-43E10i200808-201008

main82131-43E11i201008-201206

main82131-43E12i201206-201310

main82131-43E13i201310

82210CFUSIBLE LINK

main90982-08202i200808

60A,TERM.:MALE,YEL

main90982-08203i199601-200108

80A,TERM.:MALE,BLK

main90982-08228i200406-200709

50A,TERM.:MALE,RED

main90982-08246i200406-200709

100A,TERM.:MALE,BLUE

main90982-08280i200108-200312

30A,TERM.:FEMALE,PNK

main90982-08281i199601-200108

40A,TERM.:FEMALE,GRN

main90982-08282i200108-200405

50A,TERM.:FEMALE,RED

82210DFUSIBLE LINK

main90982-08281i201310

40A,TERM.:FEMALE,GRN

main90982-08282i200709-200808

50A,TERM.:FEMALE,RED

82823TCAP, ALTERNATOR TERMINAL

main82823-22060i200709-200808

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8271124070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24070

8271522140BRACKET,WIRING HARNESS CLAMP

main82715-22140

8271522310BRACKET,WIRING HARNESS CLAMP

main82715-22310

9011906732

main90119-06732

91621J0612

main91621-J0612

11 parts on this diagram · 13 diagrams in section
