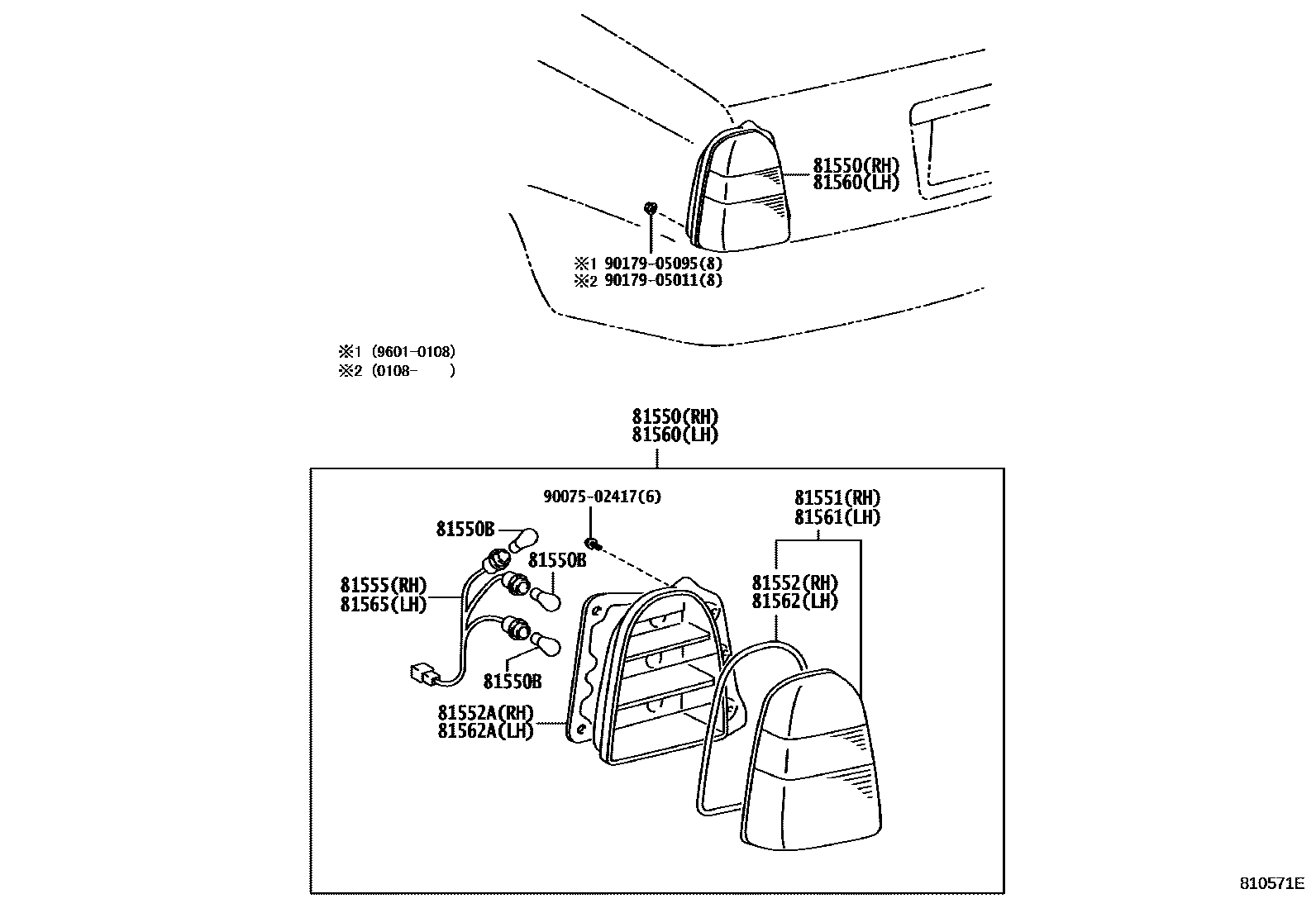

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-43010iLXS1#,YXS10199601-200108

main81550-43011iLXS12,YXS10200406-200709

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11059×2iTSS10,YXS10200709

12V 16W,NO.3

main90981-13044×2iTSS10,YXS10200709

12V 21/5W,NO.1,NO.4

main90981-15011×2iTSS10,YXS10200709

12V 21W,AMBER,NO.2

main99132-11210×4iLXS12,YXS10200108-200709

12V 21W

main99132-21210×2iLXS12,YXS10200108-200709

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-43010iLXS1#,YXS10199601-200108

main81551-43011iLXS12,YXS10200406-200709

main81551-43021iTSS10,YXS10200709-201011

main81551-43030iTSS10201011

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81554-43010iLXS1#,YXS10199601-200108

main81554-43020iTSS10,YXS10200709

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-43010iLXS1#,YXS10199601-200108

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-43010iLXS12,YXS10200108-200709

main90075-60002iTSS10,YXS10200709

81560LAMP ASSY, REAR COMBINATION, LH

main81560-43010iLXS1#,YXS10199601-200108

main81560-43011iLXS12,YXS10200406-200709

81561LENS, REAR COMBINATION LAMP, LH

main81561-43010iLXS1#,YXS10199601-200108

main81561-43011iLXS12,YXS10200406-200709

main81561-43021iTSS10,YXS10200709-201011

main81561-43030iTSS10201011

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81554-43010iLXS1#,YXS10199601-200108

main81564-43020iTSS10,YXS10200709

81562AGASKET, REAR COMBINATION LAMP, LH

main81552-43010iLXS1#,YXS10199601-200108

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-43010iLXS1#,YXS10199601-200108

main90075-60002iTSS10,YXS10200709

9007502417

main90075-02417

9017905011

main90179-05011

9017905095

main90179-05095

14 parts on this diagram · 2 diagrams in section
