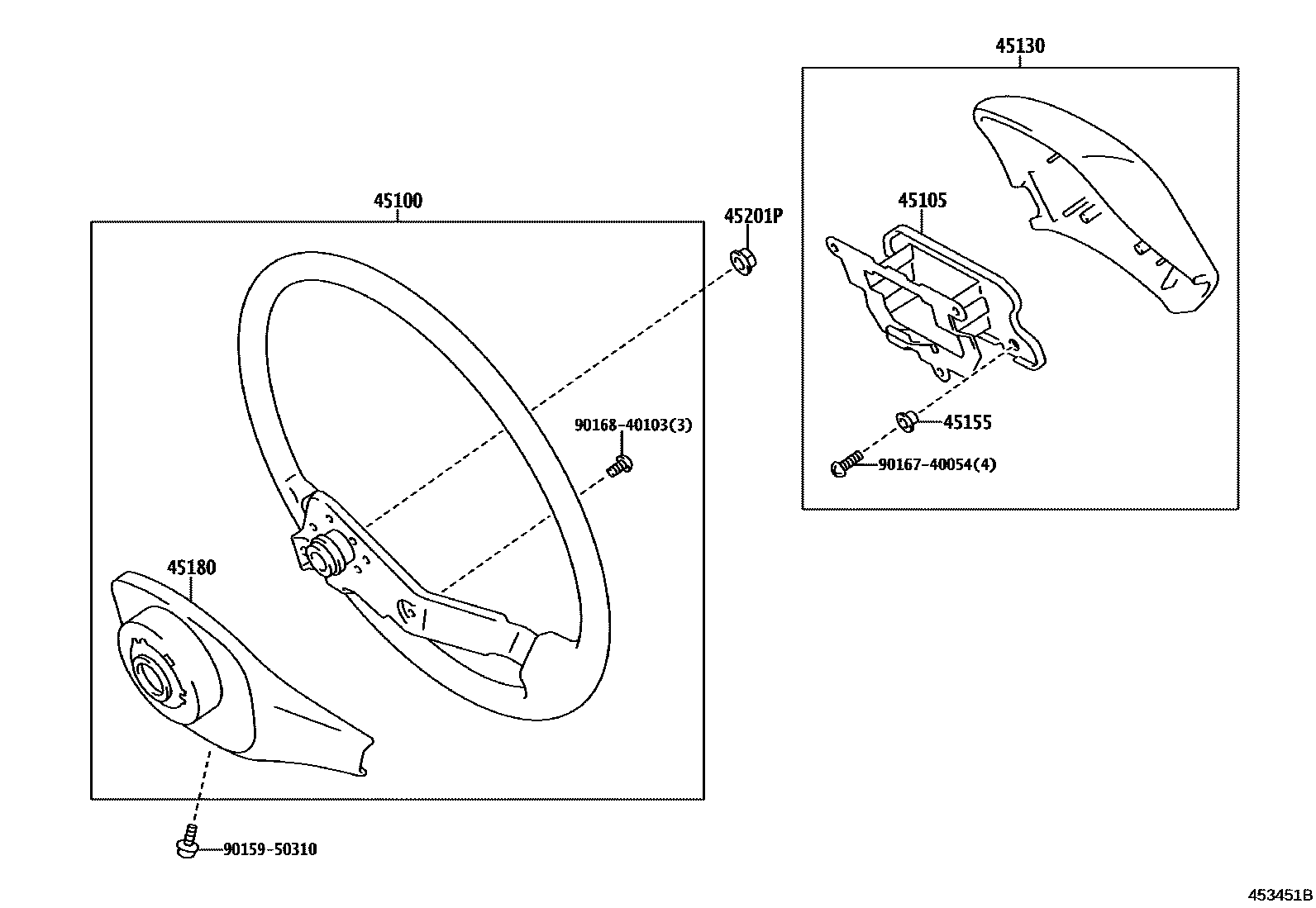

STEERING WHEEL

0001 12-SPOKE 0002 14-SPOKE,W(AIR BAG) 0003 13-SPOKE 0004 14-SPOKE

45100WHEEL ASSY, STEERING

main45100-26230-B1iLXS1#,YXS10199601-200108

2SPOKE,POLYPROPYLENE,SHADOW GRAY,TRIM1#

main45100-26230-B3iYXS10200709-200808

2SPOKE,POLYPROPYLENE,DK.GRAY,TRIM1#

main45100-30680-B4iTSS10200808-201310

3SPOKE,POLYPROPYLENE,DK.GRAY,TRIM1#

main45100-43010-B0iLXS10199601-199604

4-SPOKE,W(AIR BAG),SHADOW GRAY,TRIM1#

main45100-43011-B0iLXS10199604-199701

4-SPOKE,W(AIR BAG),SHADOW GRAY,TRIM1#

main45100-43020-B0iLXS10..4H199801-199802

4-SPOKE,URETHANE,W(AIR BAG),SHADOW GRAY,TRIM1#

main45100-43060-B0iTSS10201310

4-SPOKE,URETHANE,DK.GRAY,TRIM1#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-12200iLXS1#,YXS10199601-200108

main45105-43010iTSS10200808-201310

45130BUTTON ASSY, HORN

main45130-13010-B0iLXS10..4H199801-199802

W(AIR BAG),SHADOW GRAY,TRIM1#

main45130-26260-B1iLXS1#,YXS10199601-200108

SHADOW GRAY,TRIM1#

main45130-26260-B3iLXS12,YXS10200108-200709

DK.GRAY,TRIM1#

main45130-26320-B2iTSS10201310

DK.GRAY,TRIM1#

main45130-2B370-B0iLXS10199601-199701

W(AIR BAG),SHADOW GRAY,TRIM1#

main45130-43040-B1iTSS10200808-201310

DK.GRAY,TRIM1#

45155SPACER, HORN BUTTON CONTACT PLATE

main45155-12050×4iLXS1#,YXS10199601-200108

45180COVER SUB-ASSY, STEERING WHEEL

main45180-26040-B1iLXS1#,YXS10199601-200108

SHADOW GRAY,TRIM1#

main45180-26040-B3iLXS12,YXS10200108-200709

DK.GRAY,TRIM1#

main45180-30070-B2iTSS10200808-201310

DK.GRAY,TRIM1#

45201PNUT, STEERING WHEEL SET

main90179-12071iLXS1#,YXS10199601-200108

9015950310

main90159-50310

9016740054

main90167-40054

9016840103

main90168-40103

9 parts on this diagram · 4 diagrams in section
