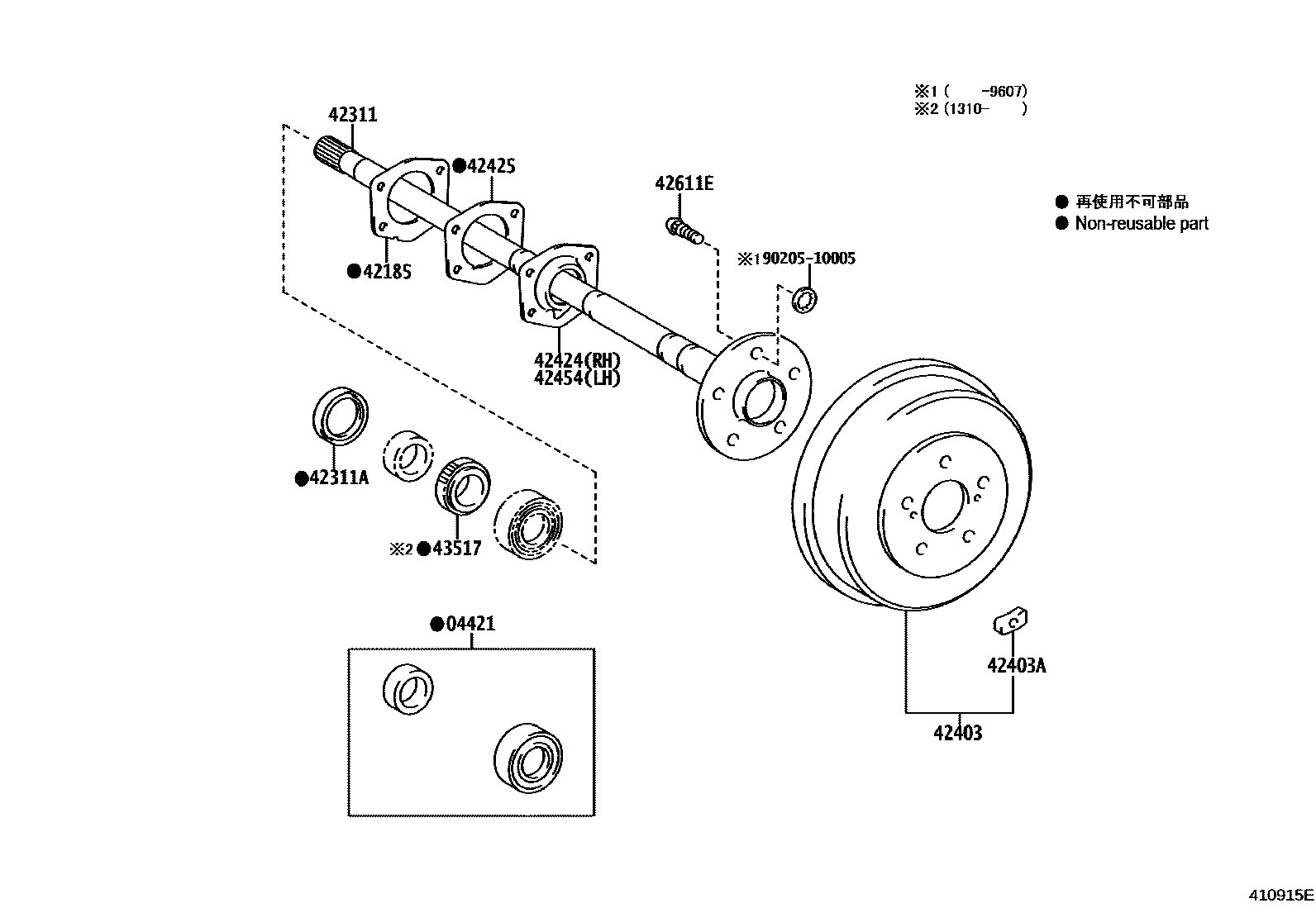

REAR AXLE SHAFT & HUB

04421BEARING KIT, REAR AXLE SHAFT

main04421-30070×2iLXS10199601-199708

main04421-30080×2iLXS1#199708-199905

main04421-30081×2iTSS10,YXS10200709

42185GASKET, REAR AXLE HOUSING END

main42185-30061×2iLXS1#,YXS10199601-200006

main42185-43030×2iLXS12,YXS10..MTM200108-200607

T=0.45

42311SHAFT, REAR AXLE

main42311-22140×2iLXS1#,YXS10199601-200108

main42311-43010×2iLXS12,YXS10200108-200709

main42311-43011×2iTSS10201310

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-52001×2iTSS10201310

main90311-52059×2iLXS12,YXS10200108-200709

42403DRUM SUB-ASSY, REAR BRAKE

main42431-43010×2iLXS10199601-199701

main42431-43020×2iLXS1#,YXS10199701-200108

main42431-43021×2iLXS12,YXS10200108-200709

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01287iYXS10200709-200808

10G

main90937-01288iLXS1#,YXS10199601-200108

20G

main90937-01289iYXS10..4HC200108-200709

30G

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-30040iLXS1#,YXS10199601-200108

42425GASKET, REAR AXLE BEARING RETAINER

main42425-30031×2iLXS1#,YXS10199601-200006

main42425-43010×2iLXS12,YXS10200006-200108

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42424-30040iLXS1#,YXS10199601-200108

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×10iLXS1#,YXS10199601-200108

43517ROTOR, SKID CONTROL, REAR

main43517-13011×2iTSS10201310

9020510005

main90205-10005

12 parts on this diagram · 1 diagram in section
