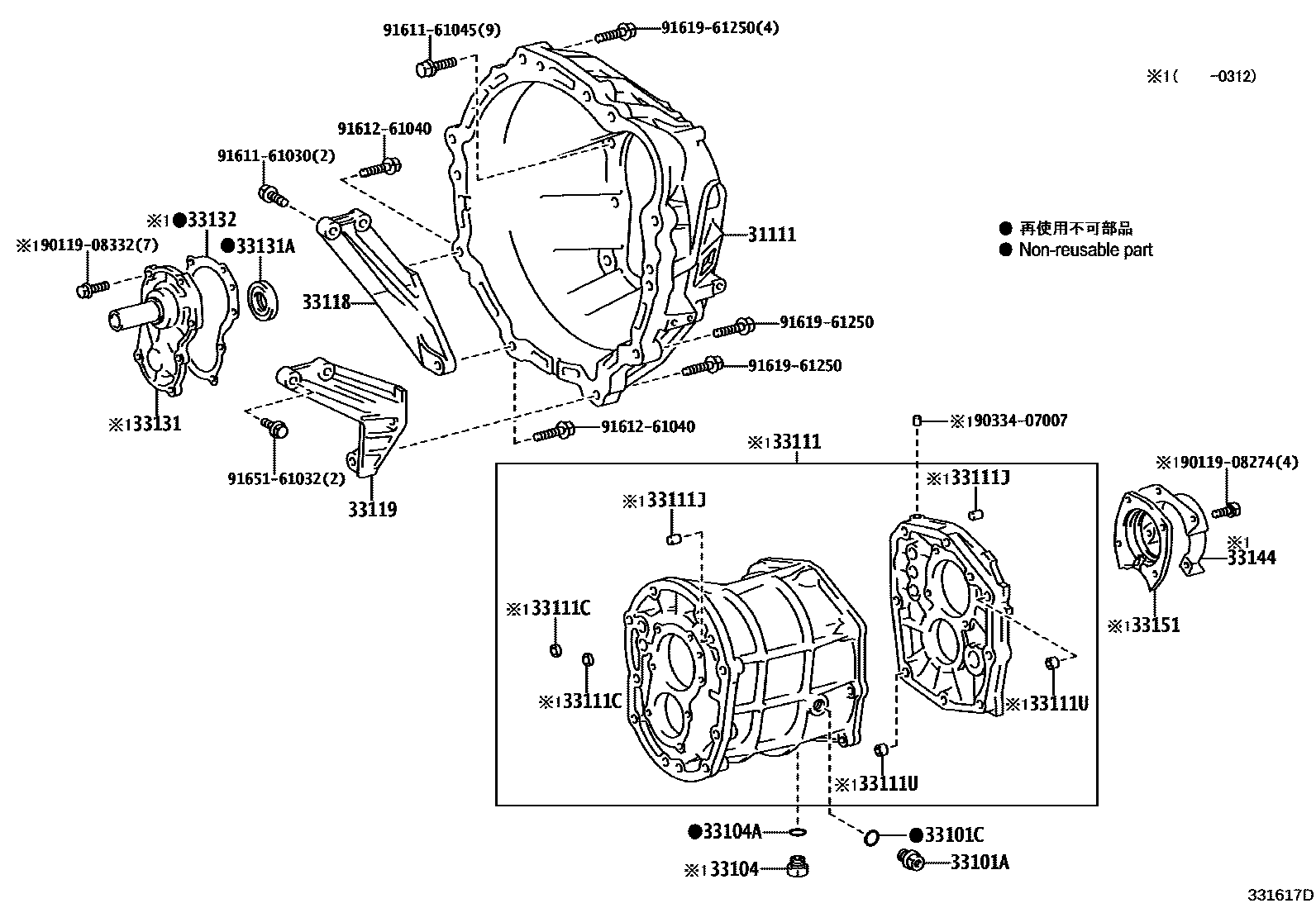

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1N45 0002 1W55,W57 0003 1N45

31111HOUSING, CLUTCH

main31111-20230iYXS10..4H200108-200312

main31111-22114iLXS12200108-200607

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iLXS1#,YXS10..MTM199601-200108

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iLXS1#,YXS10..MTM199601-200108

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iLXS1#..5F199601-200108

main90341-18057iLXS1#,YXS10..4H199601-200108

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iLXS1#,YXS10..MTM199601-200108

33111CASE, MANUAL TRANSMISSION

main33101-30063iYXS10..4H200108-200312

main33101-30071iLXS12200108-200607

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004×2iLXS1#,YXS10..4H199601-200108

OD=14

main96411-41800×2iLXS1#..5F199601-200108

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×6iLXS1#,YXS10..4H; LXS1#..5F199601-200108

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001×2iLXS1#,YXS10..4H199601-200108

L=14,OD=15

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLXS1#199601-200108

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLXS1#199601-200108

33131RETAINER, BEARING, FRONT(MTM)

main33131-30062iLXS1#,YXS10..4H199601-200108

main33131-30080iLXS1#..5F199601-200108

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iLXS1#,YXS10..MTM199601-200108

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-30061iLXS1#,YXS10..4H199601-200108

33144DEFLECTOR, EXTENSION HOUSING OIL(MTM)

main33144-30022iLXS10..4H199601-199602

main33144-43010iLXS1#,YXS10..4H199602-200108

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-30020iLXS1#..5F199601-200010

main33151-30040iYXS10..4H200108-200312

main33151-30051iLXS12200108-200607

9011908274

main90119-08274

9011908332

main90119-08332

9033407007

main90334-07007

9161161030

main91611-61030

9161161045

main91611-61045

9161261040

main91612-61040

9161961250

main91619-61250

9165161032

main91651-61032

24 parts on this diagram · 3 diagrams in section
