333310
›

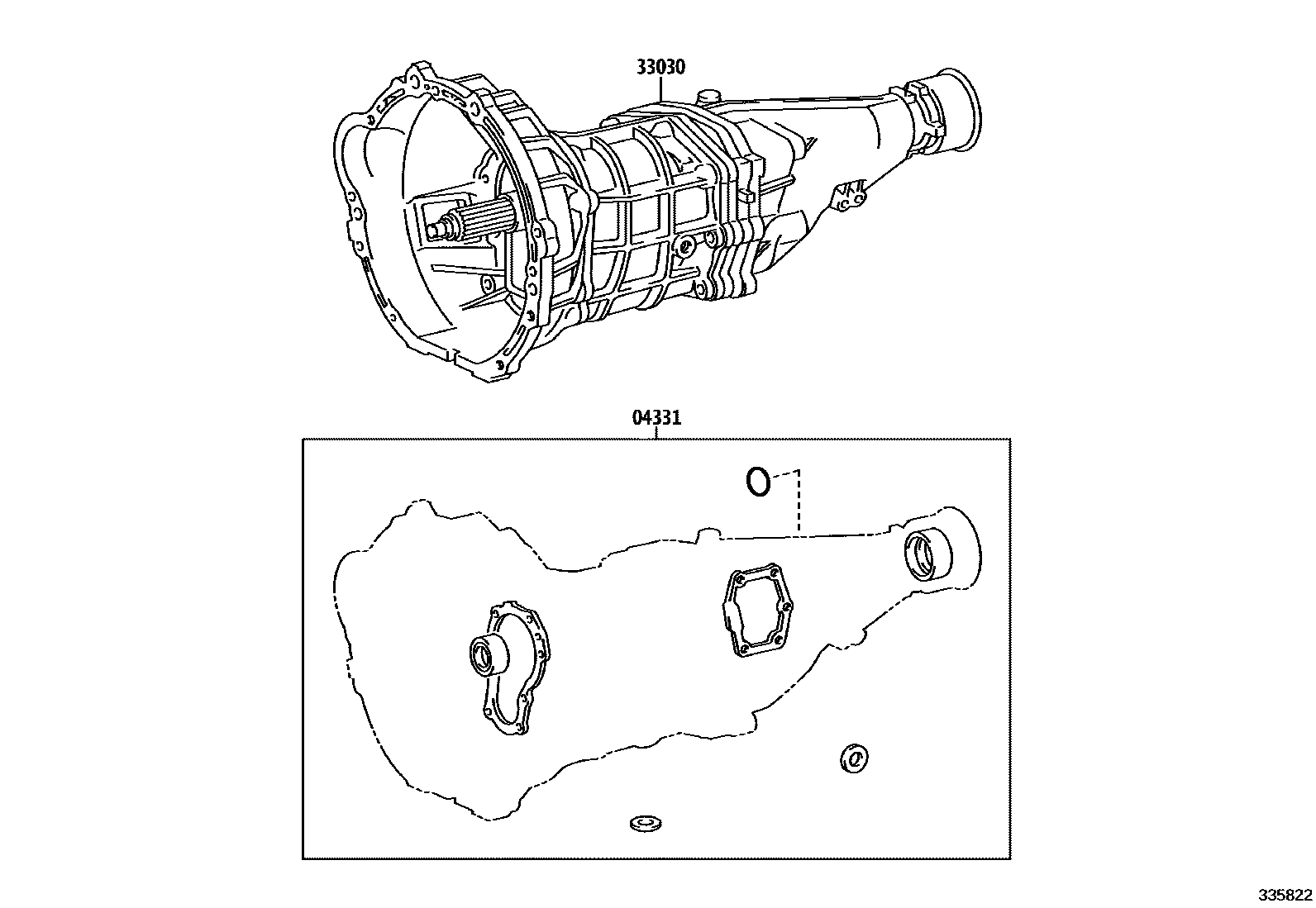

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)
TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)
0001 1N45
0002 1W55,W57
04331
GASKET KIT, MANUAL TRANSMISSION OVERHAUL
main
04331-30090
i
LXS1#,YXS10..4H
199601-200108
main
04331-35190
i
LXS1#..5F
199601-200108
33030
TRANSMISSION UNIT ASSY, MANUAL
main
33030-43010
i
LXS10..5F
199601-199901
W55
main
33030-43050
i
LXS10..4H
199601-199802
N45
main
33030-43070
i
LXS12..4H
199802-200108
N45
main
33030-43090
i
LXS12..5F
199901-200108
W57
main
33030-43100
i
YXS10..4H
199908-200108
N45
2 parts on this diagram · 2 diagrams in section
