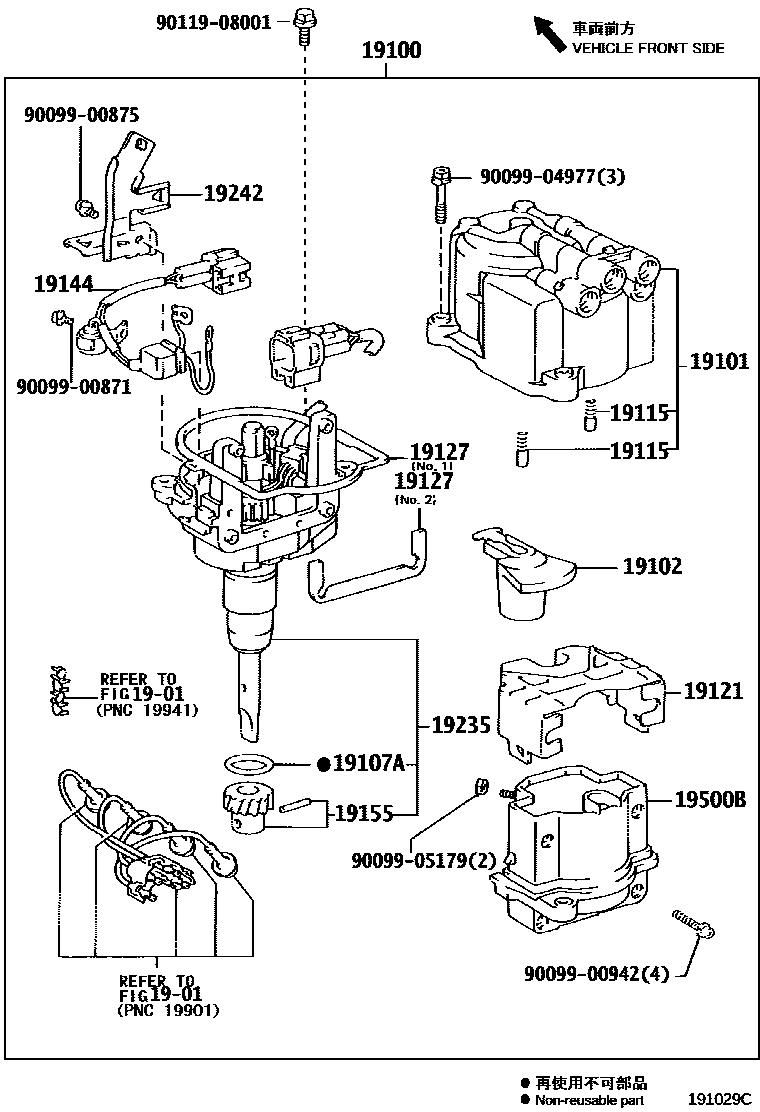

DISTRIBUTOR

1901IGNITION COIL & SPARK PLUG / GLOW PLUG

→ Go to FIG 19-01

19100DISTRIBUTOR ASSY

main19040-73052i3YPE..YXS10199908-200108

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-73030i3YPE..YXS10199908-200108

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-73180i3YPE..YXS10199908-200108

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14090i3YPE..YXS10200108-200709

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-72010×2i3YPE..YXS10199908-200108

19121COVER, DUST PROOF

main19121-63040i3YPE..YXS10199908-200108

19127PACKING, DUST PROOF

main19127-63010i3YPE..YXS10199908-200108

NO.1

main19127-63020i3YPE..YXS10199908-200108

NO.2

19144LEAD, DISTRIBUTOR BREAKER

main19144-73040i3YPE..YXS10199908-200108

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-72090i3YPE..YXS10199908-200108

19235HOUSING, DISTRIBUTOR

main19235-73180i3YPE..YXS10199908-200108

19242CLAMP, CORD

main19242-73180i3YPE..YXS10199908-200108

19500BCOIL ASSY, IGNITION

main90919-02135i3YPE..YXS10199908-200108

9009900871

main90099-00871

9009900875

main90099-00875

9009900942

main90099-00942

9009904977

main90099-04977

9009905179

main90099-05179

9011908001

main90119-08001

19 parts on this diagram · 1 diagram in section
