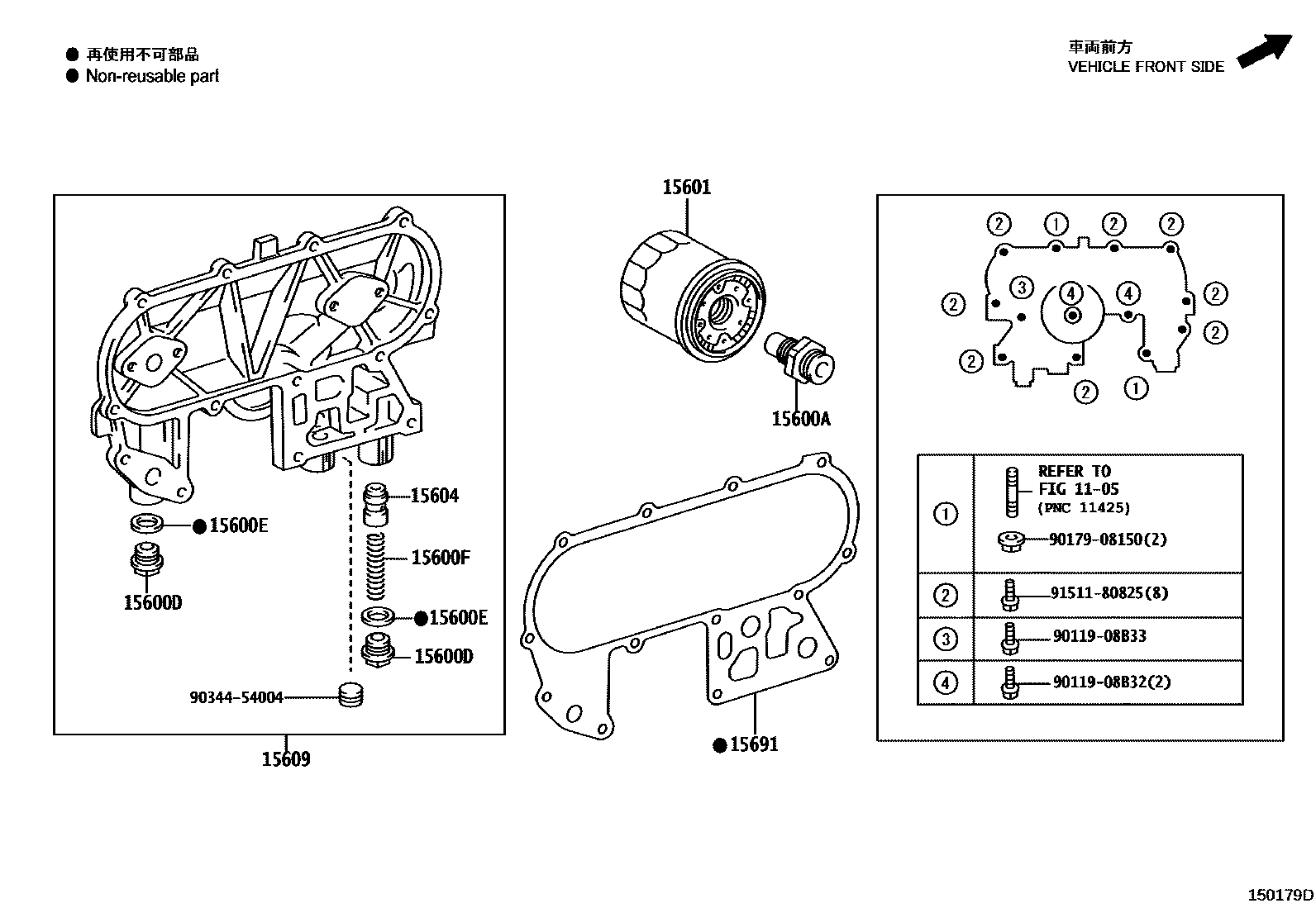

OIL FILTER

0001 1 0002 1 0003 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

15600AUNION(FOR OIL FILTER)

main15116-54021i2L,5L..LXS1#199601-200108

15600DPLUG(FOR OIL FILTER)

main90341-18015×2i2L,5L..LXS1#199601-200108

15600EWASHER(FOR OIL FILTER)

main90430-18029×2i2L,5L..LXS1#199601-200108

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main90501-16026i5L..LXS12200108-200607

15601FILTER SUB-ASSY, OIL

main15601-33021i3YPE..YXS10200108-200709

main90915-30002i2L,5L..LXS1#199601-200108

15604VALVE SUB-ASSY, OIL SAFETY

main15131-54010i5L..LXS12200108-200607

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54082i5L..LXS12200108-200607

main15609-71020i3YPE..YXS10199908-200108

main15609-73010i3YPE..YXS10200108-200709

main15609-75130i1TRFPE..TSS10200808

15691GASKET, OIL FILTER

main15691-71011i3YPE..YXS10200709-200808

main15692-54030i2L..LXS10199601-199705

main15692-54050i5L..LXS12200108-200607

9011908B32

main90119-08B32

9011908B33

main90119-08B33

9017908150

main90179-08150

9034454004

main90344-54004

9151180825

main91511-80825

14 parts on this diagram · 3 diagrams in section
