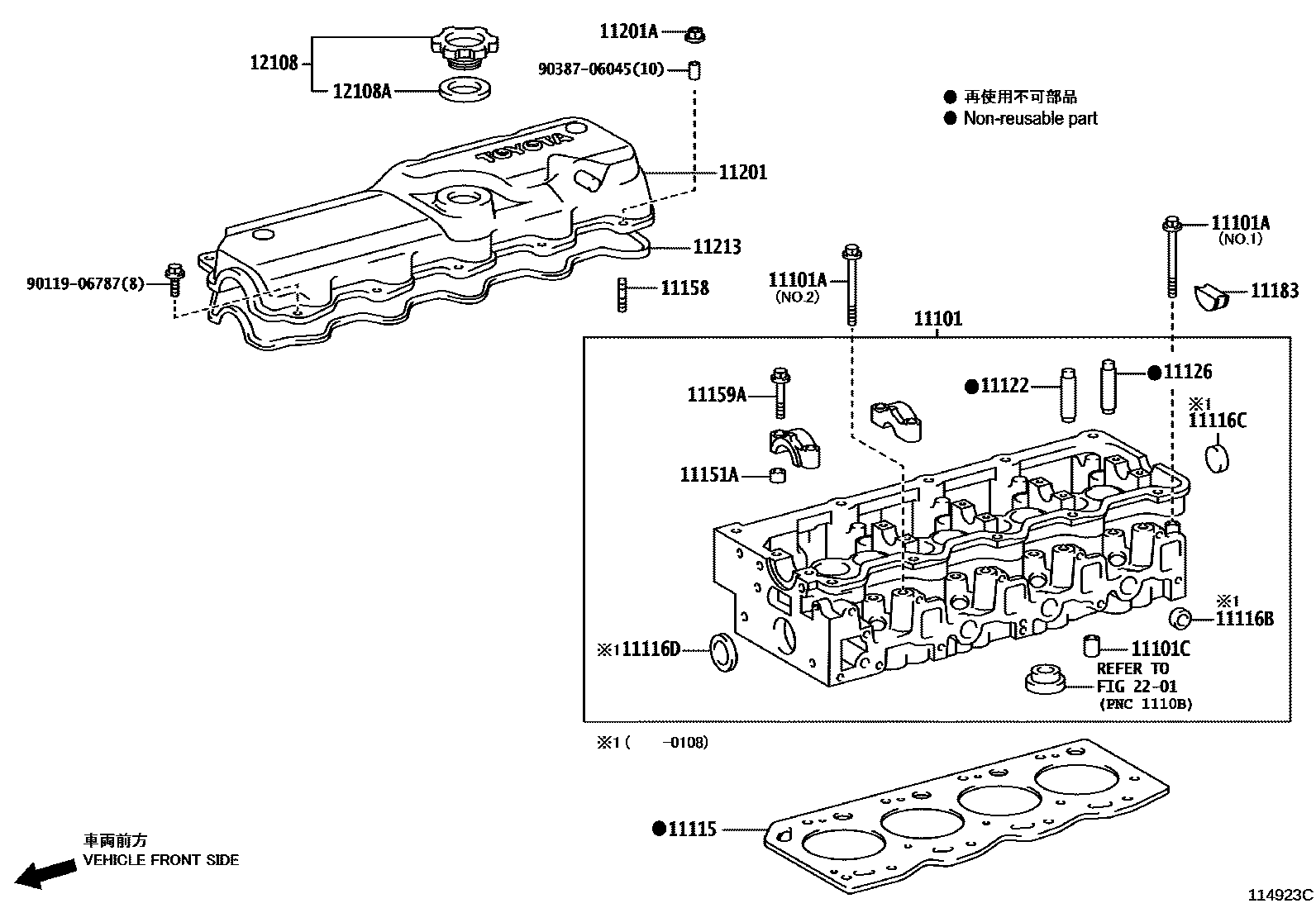

CYLINDER HEAD
11101CTUBE(FOR CYLINDER HEAD)
11115GASKET, CYLINDER HEAD
MARK B
MARK D
MARK F
11116BPLUG, TIGHT, NO.2
11116CPLUG, TIGHT, NO.3
11116DPLUG, TIGHT, NO.4
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
STD
O/S 0.05
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=7,OD=10
L=8,OD=11
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
S=9 & 9,L=25
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11183PLUG, SEMICIRCULAR
11201COVER SUB-ASSY, CYLINDER HEAD
sub11201-75052
sub11201-75053
sub11201-75054
sub11201-75055
sub11210-54042
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
2201
9011906787
main90119-06787
9038706045
main90387-06045
21 parts on this diagram · 3 diagrams in section
