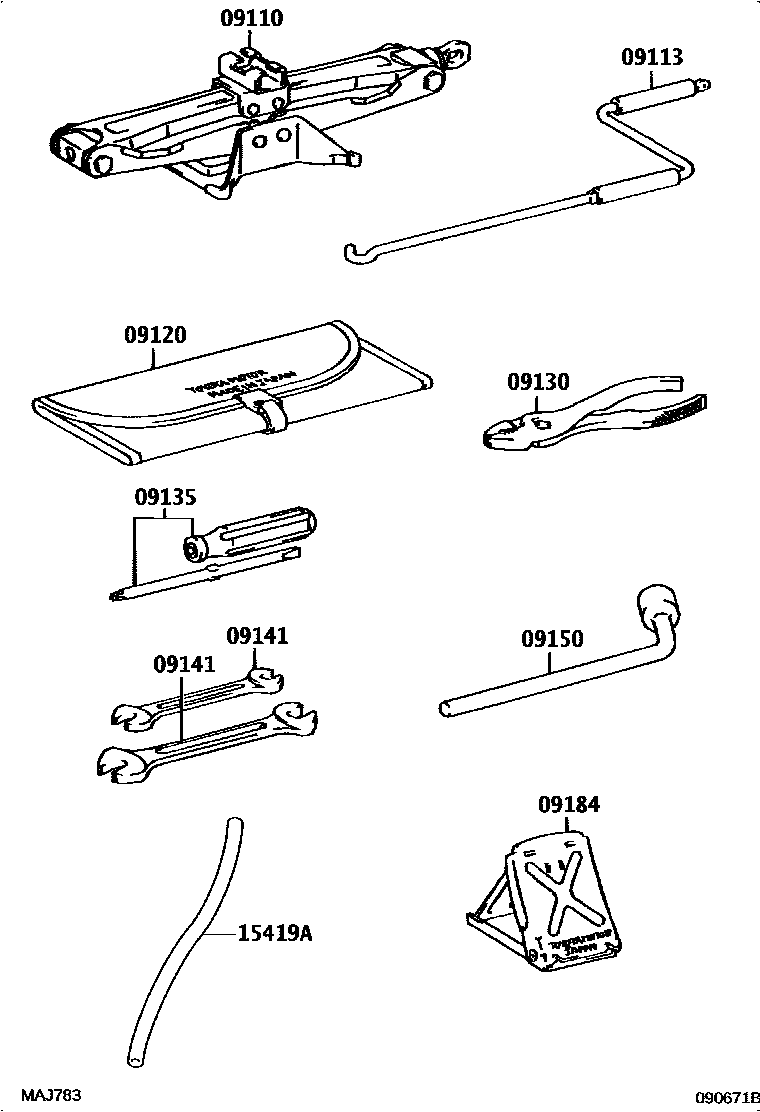

STANDARD TOOL

09110JACK ASSY

main09111-20101iLXS1#,YXS10199601-200808

09113HANDLE, JACK

main09113-14030iLXS1#,YXS10199601-200808

09120BAG, TOOL

main09120-16030iLXS1#,YXS10199601-200709

09130PLIERS

main99913-11500iLXS1#,YXS10199601-200709

09135DRIVER, SCREW

main99915-10700iLXS1#,YXS10199601-200709

09141SPANNER

main99914-10810iLXS1#,YXS10199601-200709

8 X 10

main99914-11214iYXS10..4H199601-200709

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010iLXS12,YXS10199601-200709

09184STOPPER, WHEEL

main09184-00010iLXS1#,YXS10199601-200709

15419AHOSE, OIL FILTER OUTLET

main15419-75010i1TRFPE..TSS10201206

9 parts on this diagram · 1 diagram in section
