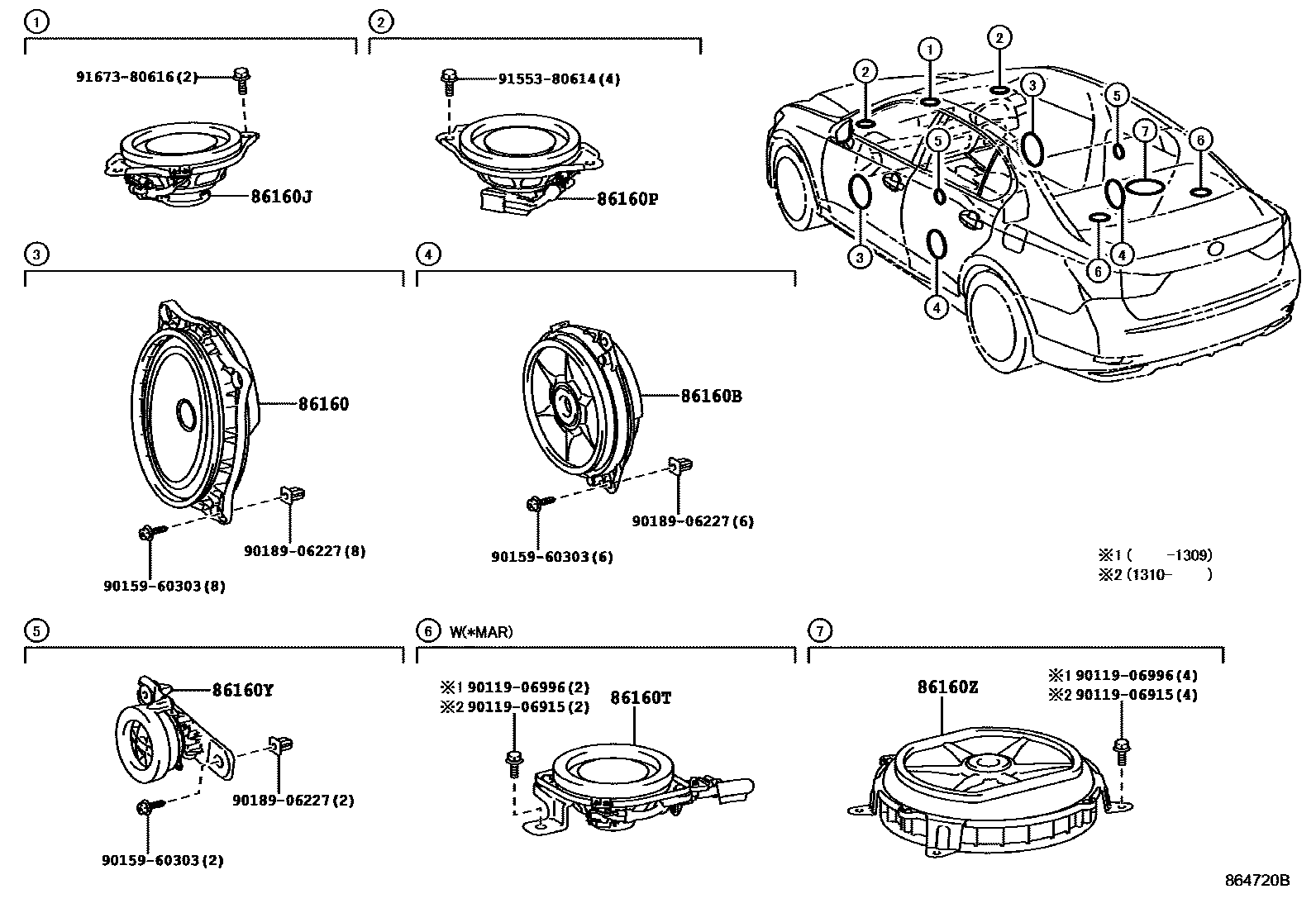

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-0WW00×2iARL10,AWL10,GRL12,GWL10..RHD..GEN201510-202007

EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86160-30E10×2supersedes 86160-30E10iGRL10201201-201309

main86160-48370×2iARL10,GRL12..RHD..GEN201510-202007

AUDIO-12SPEAKER

86160BSPEAKER ASSY, REAR

main86160-0WW30×2iARL10,AWL10,GRL12,GWL10..RHD..GEN201510-202007

EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86160-30E20×2supersedes 86160-30E20iARL10,GRL12..RHD..GEN201510-202007

AUDIO-12SPEAKER & RDS

86160JSPEAKER ASSY, FRONT NO.3

main86160-0WV80iARL10,AWL10,GRL12,GWL10..RHD..GEN201510-202007

EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86160-30E60supersedes 86160-30E60iARL10,GRL12..RHD..GEN201510-202007

AUDIO-12SPEAKER & RDS

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WV80×2iARL10,AWL10,GRL12,GWL10..RHD..GEN201510-202007

EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86160-30D90×2supersedes 86160-30D90iGRL10201201-201309

main86160-48380×2iARL10,GRL12..RHD..GEN201510-202007

AUDIO-12SPEAKER

86160TSPEAKER ASSY, REAR HEADER

86160YSPEAKER ASSY, REAR NO.2

main86150-0W180×2iARL10,AWL10,GRL12,GWL10..RHD..GEN201510-202007

EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86150-30380×2supersedes 86150-30380iGRL10201201-201309

86160ZSPEAKER ASSY, REAR NO.3

main86160-0WW40iARL10,AWL10,GRL12,GWL10..RHD..GEN201510-202007

EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

main86160-30E50supersedes 86160-30E50iGRL10201201-201309

9011906915

main90119-06915

9011906996

main90119-06996

9015960303

main90159-60303

9018906227

main90189-06227

9155380614

main91553-80614

9167380616

main91673-80616

13 parts on this diagram · 1 diagram in section
