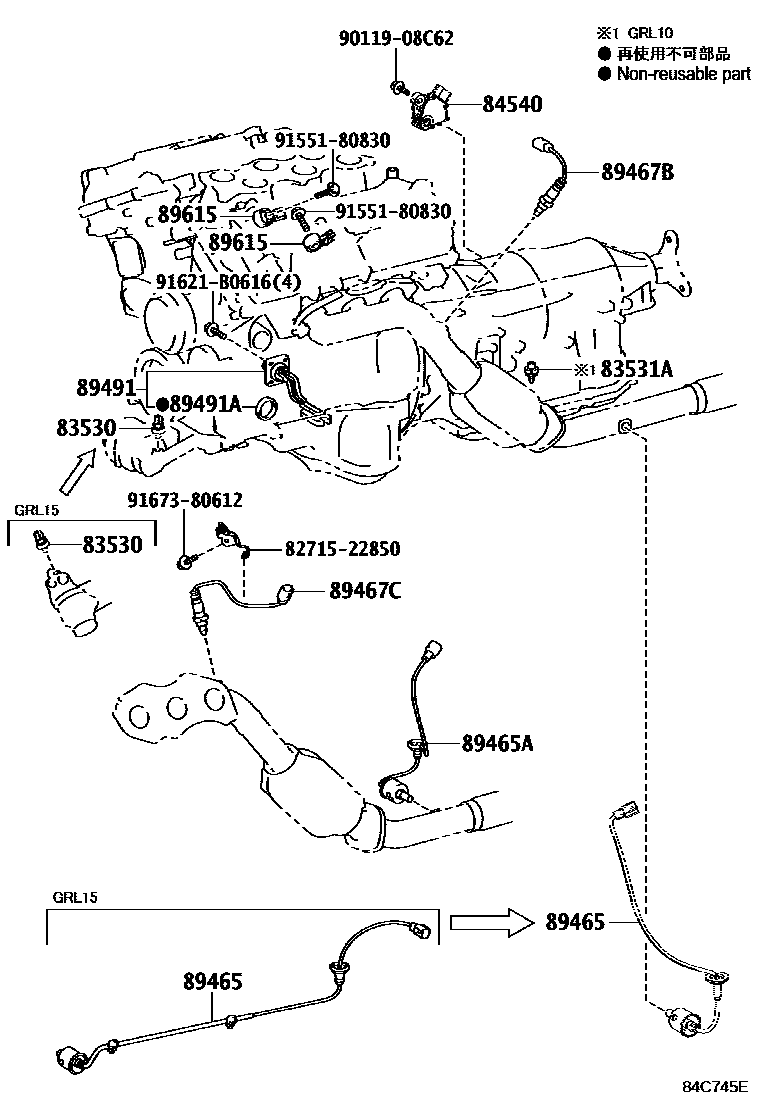

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGRL10201201-202007

83531ASWITCH, OIL PRESSURE

main83531-50010iGRL10201309-202007

84540SWITCH ASSY, NEUTRAL START

main84540-04010iGRL11,15201309-201510

(L)

main84540-71010iGRL11,15201309-201510

(J)

main84540-71010iGRL11,15201201-202007

89465SENSOR, OXYGEN

main89465-30730iGRL10,11201201-201309

main89465-30840iGRL15201201-201309

main89465-30A80iGWL10201203-202007

main89465-30B40iGRL12201510-202007

main89465-53250iAWL10201309-202007

main89465-53260iGRL15201309-201510

main89465-53270iGRL10,11201309-201510

main89465-53310iARL10201510-202007

89465ASENSOR, OXYGEN NO.2

main89465-30730iGRL1#201201-201309

main89465-30A60iGWL10201203-201309

main89465-30B50iGRL12201510-202007

main89465-53280iGRL1#201309-201510

main89465-53300iGWL10201309-202007

89467BSENSOR, AIR FUEL RATIO

main89467-22030iGRL11;GRL10..8FC201201-201510

main89467-22040iGRL15201201-201510

main89467-30050iGWL10201203-202007

main89467-30060iAWL10201309-202007

main89467-30080iGRL12201510-202007

main89467-53090iARL10201510-202007

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-22040iGWL10201203-202007

main89467-22050iGRL10201201-201510

main89467-30090iGRL12201510-202007

89491SENSOR, ENGINE OIL LEVEL

main89491-30061iGRL10201201-202007

main89491-30071iGRL15201201-201510

main89491-30080iAWL10201309-202007

main89491-30100iGRL12201510-201808

sub89491-30101

main89491-30101iGRL12201809-202007

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iARL10,AWL10,GWL10201201-202007

89615SENSOR, KNOCK CONTROL

main89615-20090iGRL10201201-202007

8271522850BRACKET,WIRING HARNESS CLAMP

main82715-22850

9011908C62

main90119-08C62

9155180830

main91551-80830

91621B0616

main91621-B0616

9167380612

main91673-80612

15 parts on this diagram · 30 diagrams in section
