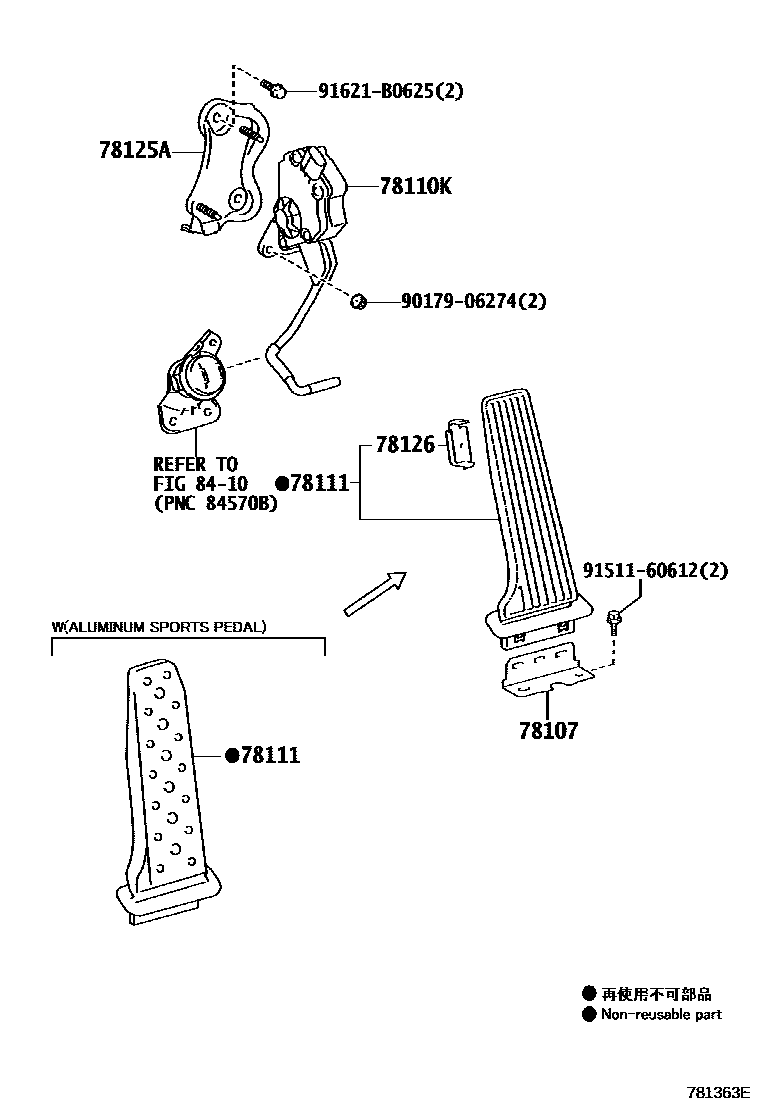

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1

78107BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD

main78108-30130iGRL10,11,GWL10201201-201309

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-30140iGRL10,11,GWL10..RHD201201-201306

main78110-30141iARL10,AWL10,GRL12,GWL10..RHD201510-201601

main78110-30150iGRL10,11,GWL10..LHD201201-201306

main78110-30151iARL10,AWL10,GRL12,GWL10..LHD201510-201601

main78110-30160iGRL15201201-201306

main78110-30161iGRL15201307-201509

sub78110-30180

main78110-30170iARL10,AWL10,GRL12,GWL10..LHD201602-202007

main78110-30210iARL10,AWL10,GRL12,GWL10..RHD201602-202007

78111PEDAL, ACCELERATOR

main78101-30070iGRL15201201-201510

main78101-30061supersedes 78101-53051iARL10,AWL10,GRL12,GWL10201510-202007

F SPORT

main78101-30080supersedes 78111-30200iGRL10,11,GWL10201201-201309

F SPORT

main78101-53040supersedes 78101-53050iGRL10,11,GWL10..GCC201409-201506

THE CRAFTED LINE

main78101-53041supersedes 78101-53051iAWL10,GRL10,11,GWL10201507-201510

THE CRAFTED LINE

78125ABRACKET, ACCELERATOR PEDAL ROD, NO.2

main78125-30070iGRL15201201-201208

main78125-30071iGRL15201209-201510

main78125-30080iGRL10,11,GWL10..LHD201201-201208

main78125-30081iGRL10..LHD201209-201309

78126BRACKET, ACCELERATOR PEDAL ROD

main78126-30060iGRL10,11,GWL10201201-201309

8410

9017906274

main90179-06274

9151160612

main91511-60612

91621B0625

main91621-B0625

9 parts on this diagram · 5 diagrams in section
