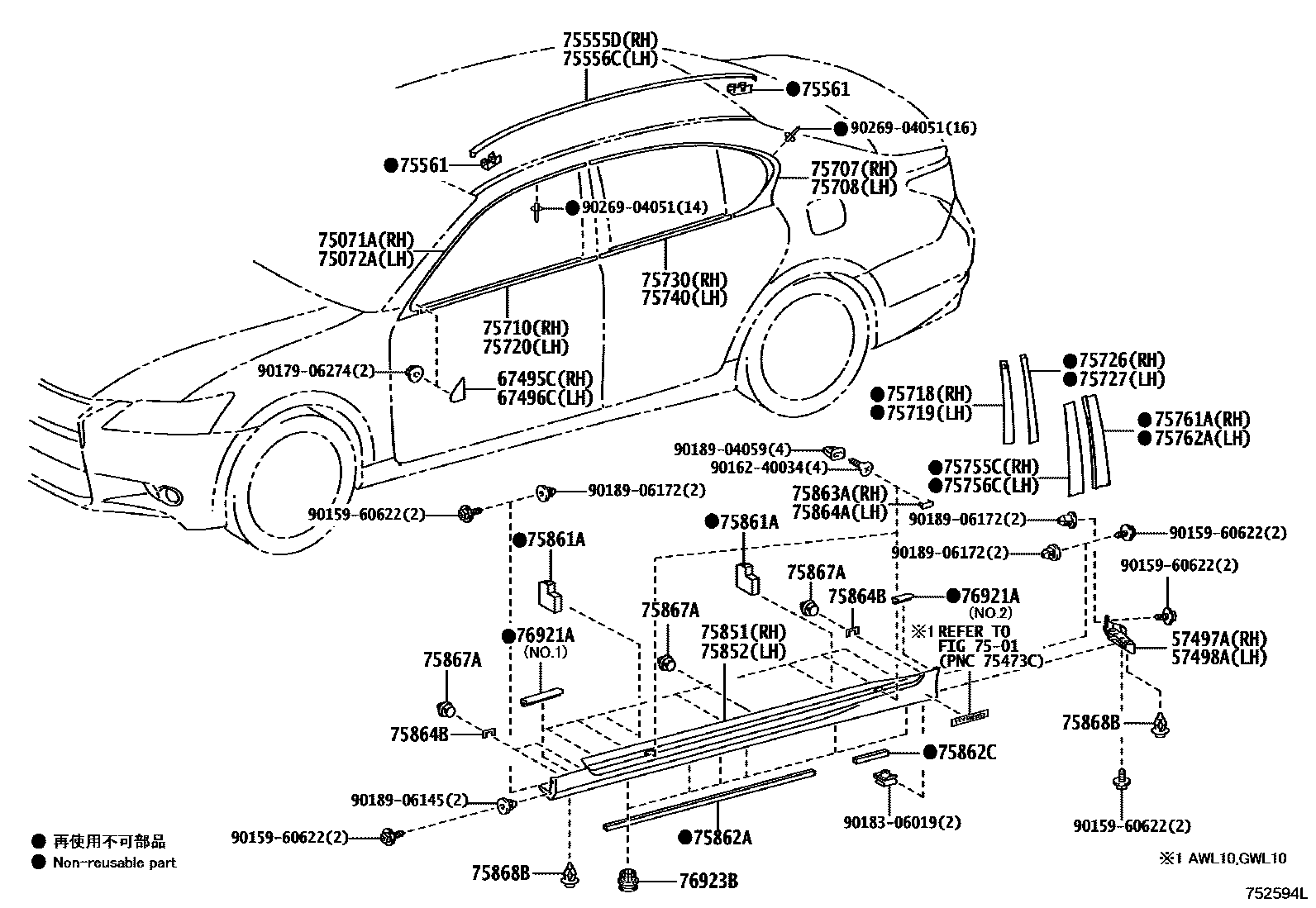

SIDE MOULDING

0001 1 0002 1

57497ASHIELD, REAR FLOOR HOUSING

main57497-30080iGRL10201201-201309

57498ASHIELD, REAR FLOOR HOUSING, NO.2

main57498-30070iGRL10201201-201309

67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-30110iGRL10201201-201309

67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-30100iGRL10201201-201309

7501

75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH

main75071-30110iGRL10201201-201309

75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH

main75072-30110iGRL10201201-201309

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-30120-A0iAWL10,GRL1#,GWL10201201-201502

WHITE PEARL CS.,077

main75555-30120-A1iGRL10,11,GWL10..GCC201309-201502

WHITE NOVA GF.,083

main75555-30120-B0iAWL10,GRL1#,GWL10201201-201502

MERCURY GRAY MC.,1H9

main75555-30120-B1iAWL10,GRL1#,GWL10201201-201502

SONIC SILVER,1J2

main75555-30120-B2iAWL10,GRL1#,GWL10201409-201502

SONIC TITANIUM,1J7

main75555-30120-C0iAWL10,GRL1#,GWL10201201-201502

BLACK,212

main75555-30120-C1iAWL10,GRL1#,GWL10201201-201409

BLACK OPAL MC.,214

main75555-30120-C2iAWL10,GRL1#,GWL10201201-201502

STARLIGHT BLACK GF.,217

main75555-30120-D0iAWL10,GRL1#,GWL10201201-201502

CRIMSON CS. GF.,3S8

main75555-30120-E0iGRL1#,GWL10201201-201309

SLEEK ECRU ME.,4U7

main75555-30120-E1iAWL10,GRL1#,GWL10201201-201502

FIRE AGATE M.M.,4V3

main75555-30120-J0iAWL10,GRL1#,GWL10201201-201502

LAPIS LAZULI MC.,8V3

main75555-30120-J1iAWL10,GRL1#,GWL10201201-201502

METEOR BLUE M.M.,8W3

main75555-30121-A0iAWL10,GRL1#,GWL10201503-201510

WHITE PEARL CS.,077

main75555-30121-A1iGRL10,11,GWL10..GCC201503-201510

WHITE NOVA GF.,083

main75555-30121-A2iARL10,AWL10,GRL12,GWL10201510-202007

SONIC QUARTZ,085

main75555-30121-B0iAWL10,GRL1#,GWL10201503-201510

MERCURY GRAY MC.,1H9

main75555-30121-B1iARL10,AWL10,GRL12,GWL10201510-202007

SONIC SILVER,1J2

main75555-30121-B2iAWL10,GRL1#,GWL10201503-201510

SONIC TITANIUM,1J7

main75555-30121-B3iARL10,AWL10,GRL12,GWL10201609-202007

DK.GRAY MC.,1G0

main75555-30121-C0iARL10,AWL10,GRL12,GWL10201510-202007

BLACK,212

main75555-30121-C2iAWL10,GRL1#,GWL10201503-201510

STARLIGHT BLACK GF.,217

main75555-30121-C3iARL10,AWL10,GRL12,GWL10201510-202007

GRAPHITE BLACK GF.,223

main75555-30121-D0iAWL10,GRL1#,GWL10201503-201510

CRIMSON CS. GF.,3S8

main75555-30121-D2iARL10,AWL10,GRL12,GWL10201510-202007

RED MC.CS.,3R1

main75555-30121-E1iAWL10,GRL1#,GWL10201503-201510

FIRE AGATE M.M.,4V3

main75555-30121-E2iARL10,AWL10,GRL12,GWL10201510-202007

AMBER CS.,4X2

main75555-30121-J0iAWL10,GRL1#,GWL10201503-201510

LAPIS LAZULI MC.,8V3

main75555-30121-J1iAWL10,GRL1#,GWL10201503-201510

METEOR BLUE M.M.,8W3

main75555-30121-J2iARL10,AWL10,GRL12,GWL10201510-202007

HEAT BLUE CONTRAST LAYERI,8X1

main75555-30121-J3iARL10,AWL10,GRL12,GWL10201510-202007

DEEP BLUE MC.,8X5

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-30110-A0iAWL10,GRL1#,GWL10201201-201502

WHITE PEARL CS.,077

main75556-30110-A1iGRL10,11,GWL10..GCC201309-201502

WHITE NOVA GF.,083

main75556-30110-B0iAWL10,GRL1#,GWL10201201-201502

MERCURY GRAY MC.,1H9

main75556-30110-B1iAWL10,GRL1#,GWL10201201-201502

SONIC SILVER,1J2

main75556-30110-B2iAWL10,GRL1#,GWL10201409-201502

SONIC TITANIUM,1J7

main75556-30110-C0iAWL10,GRL1#,GWL10201201-201502

BLACK,212

main75556-30110-C1iAWL10,GRL1#,GWL10201201-201409

BLACK OPAL MC.,214

main75556-30110-C2iAWL10,GRL1#,GWL10201201-201502

STARLIGHT BLACK GF.,217

main75556-30110-D0iAWL10,GRL1#,GWL10201201-201502

CRIMSON CS. GF.,3S8

main75556-30110-E0iGRL1#,GWL10201201-201309

SLEEK ECRU ME.,4U7

main75556-30110-E1iAWL10,GRL1#,GWL10201201-201502

FIRE AGATE M.M.,4V3

main75556-30110-J0iAWL10,GRL1#,GWL10201201-201502

LAPIS LAZULI MC.,8V3

main75556-30110-J1iAWL10,GRL1#,GWL10201201-201502

METEOR BLUE M.M.,8W3

main75556-30111-A0iAWL10,GRL1#,GWL10201503-201510

WHITE PEARL CS.,077

main75556-30111-A1iGRL10,11,GWL10..GCC201503-201510

WHITE NOVA GF.,083

main75556-30111-A2iARL10,AWL10,GRL12,GWL10201510-202007

SONIC QUARTZ,085

main75556-30111-B0iARL10,AWL10,GRL12,GWL10201510-201609

MERCURY GRAY MC.,1H9

main75556-30111-B1iAWL10,GRL1#,GWL10201503-201510

SONIC SILVER,1J2

main75556-30111-B2iAWL10,GRL1#,GWL10201503-201510

SONIC TITANIUM,1J7

main75556-30111-B3iARL10,AWL10,GRL12,GWL10201609-202007

DK.GRAY MC.,1G0

main75556-30111-C0iARL10,AWL10,GRL12,GWL10201510-202007

BLACK,212

main75556-30111-C2iAWL10,GRL1#,GWL10201503-201510

STARLIGHT BLACK GF.,217

main75556-30111-C3iARL10,AWL10,GRL12,GWL10201510-202007

GRAPHITE BLACK GF.,223

main75556-30111-D0iAWL10,GRL1#,GWL10201503-201510

CRIMSON CS. GF.,3S8

main75556-30111-D2iARL10,AWL10,GRL12,GWL10201510-202007

RED MC.CS.,3R1

main75556-30111-E1iAWL10,GRL1#,GWL10201503-201510

FIRE AGATE M.M.,4V3

main75556-30111-E2iARL10,AWL10,GRL12,GWL10201510-202007

AMBER CS.,4X2

main75556-30111-J0iAWL10,GRL1#,GWL10201503-201510

LAPIS LAZULI MC.,8V3

main75556-30111-J1iAWL10,GRL1#,GWL10201503-201510

METEOR BLUE M.M.,8W3

main75556-30111-J2iARL10,AWL10,GRL12,GWL10201510-202007

HEAT BLUE CONTRAST LAYERI,8X1

main75556-30111-J3iARL10,AWL10,GRL12,GWL10201510-202007

DEEP BLUE MC.,8X5

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030×4iGRL10201201-201309

75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH

main75707-30130iGRL10201201-201309

75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH

main75708-30140iGRL10201201-201309

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-30500iGRL10..8FC;AWL10,GRL11,15,GWL10201201-201510

75718COVER, FRONT DOOR BELT MOULDING END, REAR RH

main75718-30010iGRL10201201-201309

75719COVER, FRONT DOOR BELT MOULDING END, REAR LH

main75719-30010iGRL10201201-201309

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-30500iGRL10201201-201309

75726COVER, REAR DOOR BELT MOULDING END, FRONT RH

main75726-30030iGRL10201201-201309

75727COVER, REAR DOOR BELT MOULDING END, FRONT LH

main75727-30020iGRL10201201-201309

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-30390iGRL10201201-201309

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-30440iGRL10201201-201309

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-30150iGRL10201201-201309

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-30140iGRL10..8FC;AWL10,GRL11,15,GWL10201201-201510

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-30140iGRL10201201-201309

NO PAINT REQ.

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-30140iGRL10201201-201309

NO PAINT REQ.

75851MOULDING, ROCKER PANEL, RH

main75851-30903iAWL10,GRL1#,GWL10201201-201510

main75851-30909iARL10,AWL10,GRL12,GWL10201510-202007

75852MOULDING, ROCKER PANEL, LH

main75852-30903iAWL10,GRL1#,GWL10201201-201510

main75852-30909iARL10,AWL10,GRL12,GWL10201510-202007

75861APROTECTOR, ROCKER PANEL MOULDING, NO.1

main75861-30160×4iGRL1#,GWL10201201-201305

main75861-30161×4iGRL10201306-201309

75862APROTECTOR, ROCKER PANEL MOULDING, NO.2

main75862-30170×2iGRL10201201-201309

75862CPROTECTOR, ROCKER PANEL MOULDING, NO.2

main75862-30180×2iARL10,AWL10,GRL12,GWL10201510-202007

75863ACOVER, ROCKER PANEL MOULDING END, REAR RH

main75863-30902×2iAWL10,GRL1#,GWL10201201-201510

main75863-30907×2iARL10,AWL10,GRL12,GWL10201510-202007

75864ACOVER, ROCKER PANEL MOULDING END, REAR LH

main75863-30902×2iAWL10,GRL1#,GWL10201201-201510

main75863-30907×2iARL10,AWL10,GRL12,GWL10201510-202007

75864BPROTECTOR, ROCKER PANEL MOULDING, NO.4

main75864-50020×6iGRL10201201-201309

75867ACLIP, ROCKER PANEL MOULDING

main75867-33030×22iGRL10201201-201309

75868BCLIP, ROCKER PANEL MOULDING, NO.2

main75867-30120×4iAWL10,GRL1#,GWL10201201-201404

76921APROTECTOR, SIDE MUDGUARD, NO.1

main76921-30011×2iGRL10201201-201309

NO.1:REFER ILLUST.

main76921-30021×2iGRL10..8FC;AWL10,GRL11,15,GWL10201201-201510

NO.2:REFER ILLUST.

76923BRETAINER, SIDE MUDGUARD

main76923-52021×12iARL10,AWL10,GRL12,GWL10201510-202007

9015960622

main90159-60622

9016240034

main90162-40034

9017906274

main90179-06274

9018306019

main90183-06019

9018904059

main90189-04059

9018906145

main90189-06145

9018906172

main90189-06172

9026904051

main90269-04051

44 parts on this diagram · 2 diagrams in section
