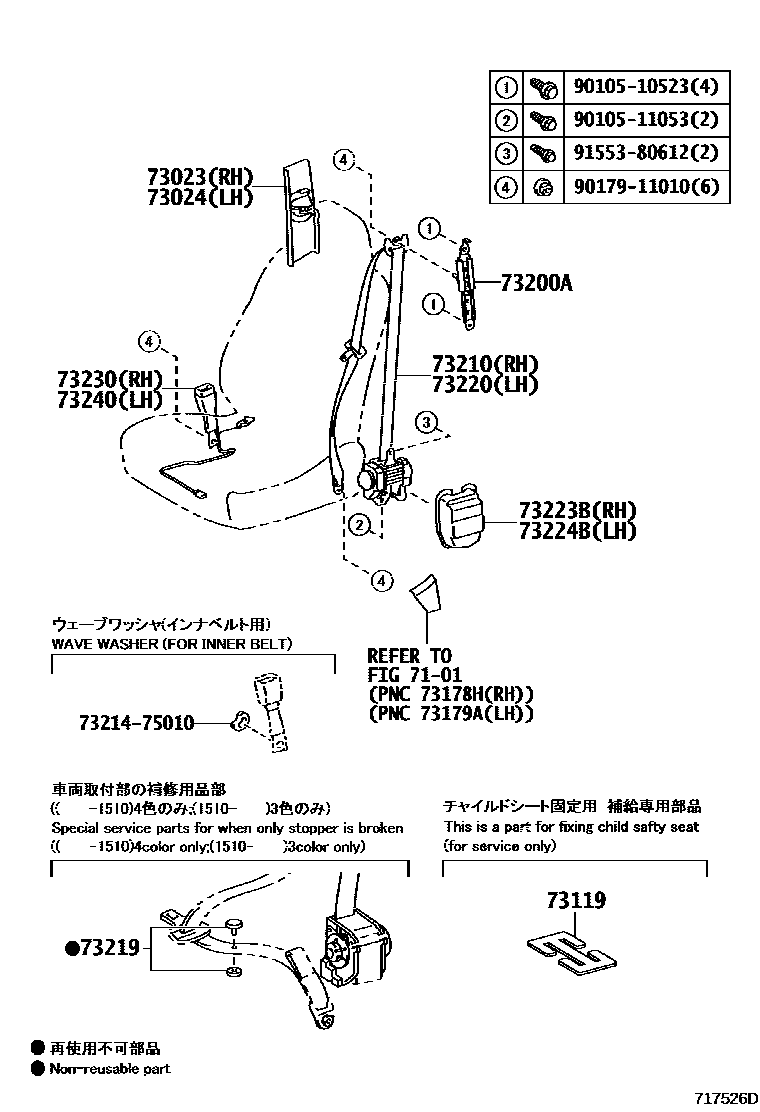

SEAT BELT & CHILD RESTRAINT SEAT
7101
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
ECRU,TRIM0#,1#,2#,50,51,52,53,54,6#
sub73023-58010
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
ECRU,TRIM0#,1#,2#,50,51,52,53,54,6#
sub73024-58010
73119PLATE, SEAT BELT WEBBING CLIP
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
IVORY/IVORY/IVORY,TRIM00,01,02,03
LT.GRAY/LT.GRAY/GRAY,TRIM1#
IVORY/BLACK/BLACK,TRIM50,51,53
LT.GRAY/BLACK/BLACK,TRIM20,21,23,4#
BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
IVORY/IVORY/IVORY,TRIM00,01,02,03
LT.GRAY/LT.GRAY/GRAY,TRIM1#
IVORY/BLACK/BLACK,TRIM50,51,52
LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4#
BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
IVORY/IVORY/IVORY,TRIM00,01,02,03
LT.GRAY/LT.GRAY/GRAY,TRIM1#
IVORY/BLACK/BLACK,TRIM50,51,52
LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4#
BLACK/BLACK/BLACK,TRIM25,26,3#,55,56
ECRU/BLACK/BLACK,TRIM0#,1#,2#,50,51,52,53,54,6#
BLACK/BLACK/BLACK,TRIM25,26,3#,55,56
BLACK/ECRU/BLACK,TRIM0#,1#,2#,50,51,52,53,54,6#
IVORY/IVORY/IVORY,TRIM00,01,02,03
LT.GRAY/LT.GRAY/GRAY,TRIM1#
IVORY/BLACK/BLACK,TRIM4#,50,51
LT.GRAY/BLACK/BLACK,TRIM20,21,23
IVORY/IVORY/IVORY,TRIM00,01,02,03
LT.GRAY/LT.GRAY/GRAY,TRIM1#
IVORY/BLACK/BLACK,TRIM5#
LT.GRAY//BLACK/BLACK,TRIM2#,4#
BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
IVORY/IVORY/IVORY,TRIM00,01,02,03
LT.GRAY/LT.GRAY/GRAY,TRIM1#
IVORY/BLACK/BLACK,TRIM5#
LT.GRAY/BLACK/BLACK,TRIM2#,4#
BLACK/BLACK/BLACK,TRIM25,26,3#,55,56
ECRU/BLACK/BLACK,TRIM0#,1#,2#,4#,50,51,52,53,54
BLACK/BLACK/BLACK,TRIM25,26,3#,55,56
BLACK/ECRU/BLACK,TRIM0#,1#,2#,50,51,52,53,54,6#
PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),IVORY/IVORY/IVORY,TRIM00,01,02,03
SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),LT.GRAY/LT.GRAY/GRAY,TRIM1#
PRE-COLLISION SYSTEM-WITH,IVORY/BLACK/BLACK,TRIM50,51,52,53
PRE-COLLISION SYSTEM-WITH,LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4#
THAILAND SPEC&PRE-COLLISION SYSTEM-WITH,BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),IVORY/IVORY/IVORY,TRIM00,01,02,03
SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),LT.GRAY/LT.GRAY/GRAY,TRIM1#
PRE-COLLISION SYSTEM-WITH,IVORY/BLACK/BLACK,TRIM50,51,52,53
PRE-COLLISION SYSTEM-WITH,LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4#
SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-WITH,BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),IVORY/IVORY/IVORY,TRIM00,01,02,03
SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),LT.GRAY/LT.GRAY/GRAY,TRIM1#
THAILAND SPEC&PRE-COLLISION SYSTEM-WITH,IVORY/BLACK/BLACK,TRIM5#
PRE-COLLISION SYSTEM-WITH,LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4#
SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-WITH,BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
CHINA SPEC,IVORY/IVORY/IVORY,TRIM00,01,02,03
CHINA SPEC,LT.GRAY/LT.GRAY/GRAY,TRIM1#
CHINA SPEC,IVORY/BLACK/BLACK,TRIM50,51,52,53
CHINA SPEC,LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4#
CHINA SPEC,BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
CHINA SPEC,IVORY/IVORY/IVORY,TRIM0#
CHINA SPEC,LT.GRAY/LT.GRAY/GRAY,TRIM1#
CHINA SPEC,IVORY/BLACK/BLACK,TRIM5#
CHINA SPEC,LT.GRAY/BLACK/BLACK,TRIM2#,4#
CHINA SPEC,BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
CHINA SPEC,ECRU/BLACK/BLACK,TRIM0#,1#,2#,5#,6#
CHINA SPEC,BLACK/BLACK/BLACK,TRIM25,26,3#,55,56
CHINA SPEC,BLACK/ECRU/BLACK,TRIM0#,1#,2#,50,51,52,53,54,6#
CHINA SPEC&PRE-COLLISION SYSTEM-WITH,IVORY/IVORY/IVORY,TRIM00,01,02,03
CHINA SPEC&PRE-COLLISION SYSTEM-WITH,GRAY,TRIM1#
CHINA SPEC&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),IVORY/BLACK/BLACK,TRIM50,51,52,53
CHINA SPEC&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4#
CHINA SPEC&PRE-COLLISION SYSTEM-WITH,BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
CHINA SPEC&PRE-COLLISION SYSTEM-WITH,IVORY/IVORY/IVORY,TRIM00,01,02,03
CHINA SPEC&PRE-COLLISION SYSTEM-WITH,LT.GRAY/LT.GRAY/GRAY,TRIM1#
CHINA SPEC&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),IVORY/BLACK/BLACK,TRIM50,51,52
CHINA SPEC&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),LT.GRAY/BLACK/BLACK,TRIM2#,4#
CHINA SPEC&PRE-COLLISION SYSTEM-WITH,BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
PRE-COLLISION SYSTEM-WITH,IVORY/IVORY/IVORY,TRIM00,01,03
PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),LT.GRAY/LT.GRAY/GRAY,TRIM1#
TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH,IVORY/BLACK/BLACK,TRIM50,51,53
PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),LT.GRAY/BLACK/BLACK,TRIM20,21,23
PRE-COLLISION SYSTEM-WITH,BLACK/BLACK/BLACK,TRIM04,05,24,25,3#,54,55
PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),IVORY/IVORY/IVORY,TRIM00,01,02,03
PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),LT.GRAY/LT.GRAY/GRAY,TRIM1#
PRE-COLLISION SYSTEM-WITH,IVORY/BLACK/BLACK,TRIM4#,50,51
TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH,LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4#
PRE-COLLISION SYSTEM-WITH,BLACK/BLACK/BLACK,TRIM04,05,24,25,3#,54,55
PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),IVORY/IVORY/IVORY,TRIM00,01,02,03
PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),LT.GRAY/LT.GRAY/GRAY,TRIM1#
PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),IVORY/BLACK/BLACK,TRIM4#,50,51,52
PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),LT.GRAY/BLACK/BLACK,TRIM20,21,22,23
PRE-COLLISION SYSTEM-WITH,BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
MELLOW WHITE
73220BELT ASSY, FRONT SEAT OUTER, LH
IVORY/IVORY/IVORY,TRIM00,01,02,03
LT.GRAY/LT.GRAY/GRAY,TRIM1#
IVORY/BLACK/BLACK,TRIM50,51,53
LT.GRAY/BLACK/BLACK,TRIM20,21,23,4#
BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
IVORY/IVORY/IVORY,TRIM00,01,02,03
LT.GRAY/LT.GRAY/GRAY,TRIM1#
IVORY/BLACK/BLACK,TRIM5#
LT.GRAY/BLACK/BLACK,TRIM2#,4#
BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
IVORY/IVORY/IVORY,TRIM00,01,02,03
LT.GRAY/LT.GRAY/GRAY,TRIM1#
IVORY/BLACK/BLACK,TRIM5#
LT.GRAY/BLACK/BLACK,TRIM2#,4#
BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
ECRU/BLACK/BLACK,TRIM0#,1#,2#,4#,50,51,52,53,54
BLACK/BLACK/BLACK,TRIM25,26,3#,55,56
BLACK/ECRU/BLACK,TRIM0#,1#,2#,50,51,52,53,54,6#
SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),IVORY/IVORY/IVORY,TRIM00,01,02
SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),LT.GRAY/LT.GRAY/GRAY,TRIM1#
PRE-COLLISION SYSTEM-WITH,IVORY/BLACK/BLACK,TRIM4#,50,51
PRE-COLLISION SYSTEM-WITH,LT.GRAY/BLACK/BLACK,TRIM20,21,23,4#
THAILAND SPEC&PRE-COLLISION SYSTEM-WITH,BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),IVORY/IVORY/IVORY,TRIM00,01,02,03
SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),LT.GRAY/LT.GRAY/GRAY,TRIM1#
PRE-COLLISION SYSTEM-WITH,IVORY/BLACK/BLACK,TRIM4#,50,51
PRE-COLLISION SYSTEM-WITH,LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4#
THAILAND SPEC&PRE-COLLISION SYSTEM-WITH,BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),IVORY/IVORY/IVORY,TRIM00,01,02,03
SOUTH AFRICA SPEC&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),LT.GRAY/LT.GRAY/GRAY,TRIM1#
PRE-COLLISION SYSTEM-WITH,IVORY/BLACK/BLACK,TRIM4#,50,51,52
PRE-COLLISION SYSTEM-WITH,LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4#
THAILAND SPEC&PRE-COLLISION SYSTEM-WITH,BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
CHINA SPEC,IVORY/IVORY/IVORY,TRIM00,01,02,03
CHINA SPEC,LT.GRY/LT.GRAY/GRAY,TRIM1#
CHINA SPEC,IVORY/BLACK/BLACK,TRIM50,51,52,53
CHINA SPEC,LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4#
CHINA SPEC,BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
CHINA SPEC,IVORY/IVORY/IVORY,TRIM0#
CHINA SPEC,LT.GRAY/LT.GRAY/GRAY,TRIM1#
CHINA SPEC,IVORY/BLACK/BLACK,TRIM5#
CHINA SPEC,LT.GRAY/BLACK/BLACK,TRIM2#,4#
CHINA SPEC,BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
CHINA SPEC,ECRU/BLACK/BLACK,TRIM0#,1#,2#,5#,6#
CHINA SPEC,BLACK/BLACK/BLACK,TRIM25,26,3#,55,56
CHINA SPEC,BLACK/ECRU/BLACK,TRIM0#,1#,2#,50,51,52,53,54,6#
CHINA SPEC&PRE-COLLISION SYSTEM-WITH,IVORY/IVORY/IVORY,TRIM00,01,02,03
CHINA SPEC&PRE-COLLISION SYSTEM-WITH,GRAY,TRIM1#
CHINA SPEC&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),IVORY/BLACK/BLACK,TRIM50,51,52,53
CHINA SPEC&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4#
CHINA SPEC&PRE-COLLISION SYSTEM-WITH,BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
CHINA SPEC&PRE-COLLISION SYSTEM-WITH,IVORY/IVORY/IVORY,TRIM00,01,02,03
CHINA SPEC&PRE-COLLISION SYSTEM-WITH,LT.GRAY/LT.GRAY/GRAY,TRIM1#
CHINA SPEC&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),IVORY/BLACK/BLACK,TRIM50,51,52
CHINA SPEC&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR),LT.GRAY/BLACK/BLACK,TRIM2#,4#
CHINA SPEC&PRE-COLLISION SYSTEM-WITH,BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
73223COVER, SEAT BELT RETRACTOR
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
IVORY,TRIM00,01,02,03
LT.GRAY,TRIM1#
BLACK,TRIM04,05,06,2#,3#,4#,5#
IVORY,TRIM00,01,02,03
LT.GRAY,TRIM1#
BLACK,TRIM0#,1#,2#,3#,5#,6#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM04,05,06,2#,3#,4#,5#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM04,05,06,2#,3#,4#,5#
73240BELT ASSY, FRONT SEAT INNER, LH
IVORY,TRIM00,01,03
LT.GRAY,TRIM1#
BLACK,TRIM04,05,2#,3#,4#,5#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM04,05,06,2#,3#,4#,5#
IVORY,TRIM00,01,02,03
LT.GRAY,TRIM1#
BLACK,TRIM04,05,06,2#,3#,4#,5#
IVORY,TRIM00,01,02,03
LT.GRAY,TRIM1#
BLACK,TRIM0#,1#,2#,3#,5#,6#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511053
main90105-11053
9017911010
main90179-11010
9155380612
main91553-80612
18 parts on this diagram · 2 diagrams in section
