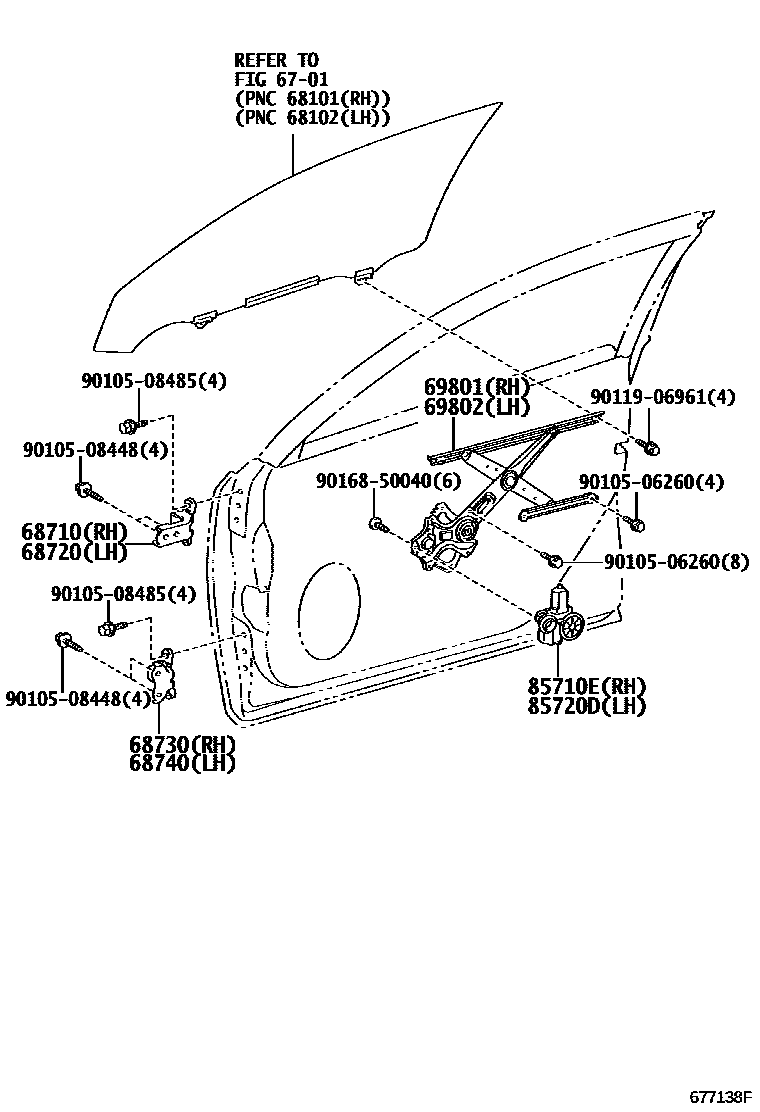

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iAWL10,GRL1#,GWL10201201-201510

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iGRL10201201-201309

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iGRL10201201-201309

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iGRL10201201-201309

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-21020iGRL10201201-201309

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-21010iGRL10201201-201309

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-30480iGRL1#,GWL10201201-201211

main85710-30481iGRL10201212-201309

main85710-60351iARL10,AWL10,GRL12,GWL10201510-202007

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-30360iGRL1#,GWL10201201-201211

main85720-30361iGRL10201212-201309

main85720-60331iARL10,AWL10,GRL12,GWL10201510-202007

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906961

main90119-06961

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
