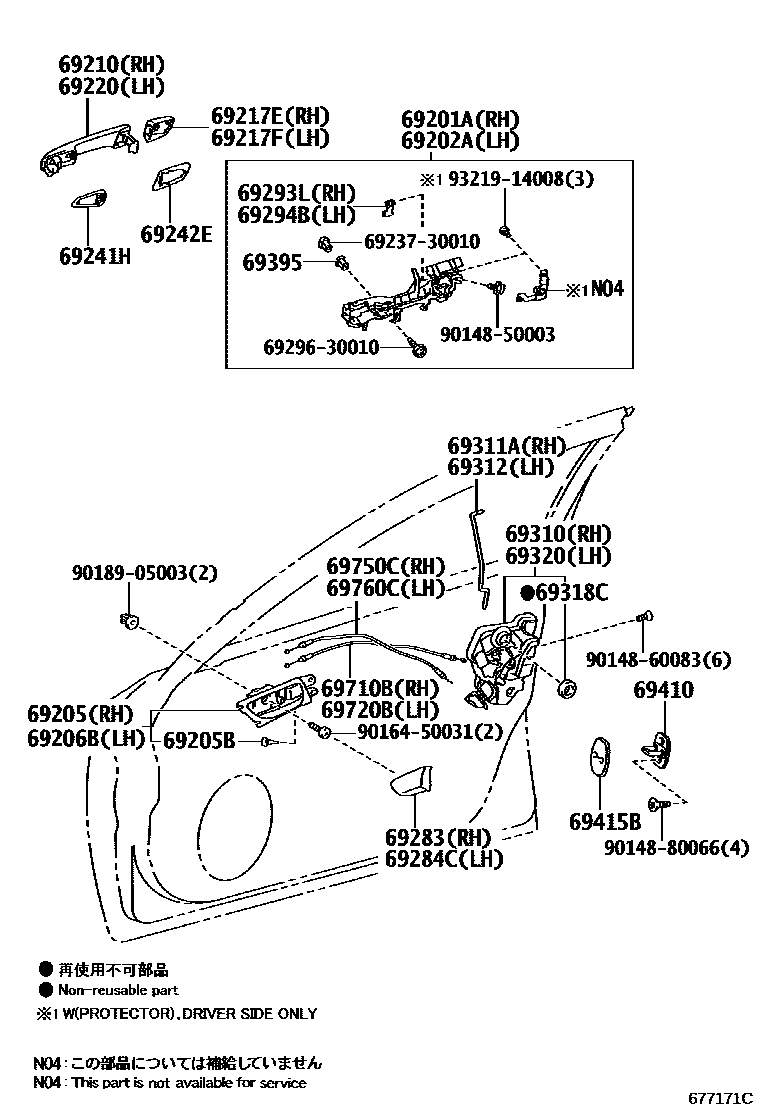

FRONT DOOR LOCK & HANDLE

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-30081iARL10,GRL12..RHD..GEN201809-202007

SOUTH AFRICA SPEC

main69201-48011iARL10,AWL10,GRL12,GWL10201201-201705

sub69201-48012

main69201-48012iARL10,AWL10,GRL12,GWL10..ARL201706-202007

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-30071iARL10,AWL10,GRL12,GWL10..LHD..GEN201809-202007

TAIWAN SPEC

main69202-30071iARL10,AWL10,GRL12,GWL10..LHD..GEN201809-202007

ARGENTINA SPEC

main69202-30071iARL10,AWL10,GRL12,GWL10..LHD..GEN201809-202007

CHILE SPEC

main69202-30071iARL10,AWL10,GRL12,GWL10..LHD..GEN201809-202007

LATIN AMERICA SPEC(W/O(CHILE&ARGENTINA))

main69202-30071iGRL12..LHD..GEN201809-202007

BRAZIL SPEC

main69202-48011iARL10,AWL10,GRL12,GWL10201201-201705

sub69202-48012

main69202-48012iARL10,AWL10,GRL12,GWL10..ARL,GEN201706-202007

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-30020-C0iAWL10,GRL1#,GWL10201201-201510

BLACK,TRIM0#,1#,2#,3#,4#,5#

main69270-30040iARL10,AWL10,GRL12,GWL10201510-202007

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iGRL10201201-202007

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69280-30040-C0iAWL10,GRL1#,GWL10201201-201510

BLACK,TRIM0#,1#,2#,3#,4#,5#

main69280-30060iARL10,AWL10,GRL12,GWL10201510-202007

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-48040-A0iAWL10,GRL1#,GWL10..LHD201201-201510

WHITE PEARL CS.,077

sub69210-48040

main69210-48040-A2iAWL10,GRL10,11,GWL10..LHD201309-202007

WHITE NOVA GF.,083

sub69210-48040

main69210-48040-A3iARL10,AWL10,GRL12,GWL10201510-202007

SONIC QUARTZ,085

sub69210-48040

main69210-48040-B0iARL10,AWL10,GRL12,GWL10201609-202007

DK.GRAY MC.,1G0

sub69210-48040

main69210-48040-B4iAWL10,GRL10,11,GWL10..RHD201201-201609

MERCURY GRAY MC.,1H9

sub69210-48040

main69210-48040-B5iAWL10,GRL1#,GWL10..LHD201201-202007

SONIC SILVER,1J2

sub69210-48040

main69210-48040-B7iAWL10,GRL10,11,GWL10..RHD201409-202007

SONIC TITANIUM,1J7

sub69210-48040

main69210-48040-C0iGRL10..8FC..GCC;GRL11,GWL10..GCC201201-202007

BLACK,212

sub69210-48040

main69210-48040-C0iAWL10,GRL10,11,GWL10..RHD201201-201510

BLACK,212 ,2MH

sub69210-48040

main69210-48040-C1iAWL10,GRL10,11,GWL10..RHD201201-201409

BLACK OPAL MC.,214

sub69210-48040

main69210-48040-C2iAWL10,GRL10,11,GWL10..RHD201201-201510

STARLIGHT BLACK GF.,217

sub69210-48040

main69210-48040-C3iARL10,AWL10,GRL12,GWL10201510-202007

GRAPHITE BLACK GF.,223

sub69210-48040

main69210-48040-D0iARL10,AWL10,GRL12,GWL10201510-202007

RED MC.CS.,3R1

sub69210-48040

main69210-48040-D1iAWL10,GRL1#,GWL10..LHD201201-201510

CRIMSON CS. GF.,3S8

sub69210-48040

main69210-48040-E2iAWL10,GRL10,11,GWL10..RHD201201-201510

FIRE AGATE M.M.,4V3

sub69210-48040

main69210-48040-E3iGRL10,11,GWL10..RHD201201-201309

SLEEK ECRU ME.,4U7

sub69210-48040

main69210-48040-E4iARL10,AWL10,GRL12,GWL10201510-202007

AMBER CS.,4X2

sub69210-48040

main69210-48040-J3iAWL10,GRL1#,GWL10..LHD201201-201510

LAPIS LAZULI MC.,8V3

sub69210-48040

main69210-48040-J4iAWL10,GRL10,11,GWL10..RHD201201-201510

METEOR BLUE M.M.,8W3

sub69210-48040

main69210-48040-J5iARL10,AWL10,GRL12,GWL10201510-202007

DEEP BLUE MC.,8X5

sub69210-48040

main69210-48040-J6iARL10,AWL10,GRL12,GWL10201510-202007

HEAT BLUE CONTRAST LAYERI,8X1

sub69210-48040

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-48010-A0iAWL10,GRL10,11,GWL10..RHD201201-201510

WHITE PEARL CS.,077

sub69217-48010

main69217-48010-A2iARL10,AWL10,GRL12,GWL10..RHD201309-202007

WHITE NOVA GF.,083

sub69217-48010

main69217-48010-A3iARL10,AWL10,GRL12,GWL10..RHD201510-202007

SONIC QUARTZ,085

sub69217-48010

main69217-48010-B0iARL10,AWL10,GRL12,GWL10..RHD201609-202007

DK.GRAY MC.,1G0

sub69217-48010

main69217-48010-B4iAWL10,GRL10,11,GWL10..RHD201201-201609

MERCURY GRAY MC.,1H9

sub69217-48010

main69217-48010-B5iAWL10,GRL10,11,GWL10..RHD201201-202007

SONIC SILVER,1J2

sub69217-48010

main69217-48010-B7iAWL10,GRL10,11,GWL10..RHD201409-202007

SONIC TITANIUM,1J7

sub69217-48010

main69217-48010-C0iAWL10,GRL10,11,GWL10..RHD201201-202007

BLACK,212

sub69217-48010

main69217-48010-C1iAWL10,GRL10,11,GWL10..RHD201201-201409

BLACK OPAL MC.,214

sub69217-48010

main69217-48010-C2iAWL10,GRL10,11,GWL10..RHD201201-201510

STARLIGHT BLACK GF.,217

sub69217-48010

main69217-48010-C3iARL10,AWL10,GRL12,GWL10..RHD201510-202007

GRAPHITE BLACK GF.,223

sub69217-48010

main69217-48010-D0iARL10,AWL10,GRL12,GWL10..RHD201510-202007

RED MC.CS.,3R1

sub69217-48010

main69217-48010-D1iAWL10,GRL10,11,GWL10..RHD201201-201510

CRIMSON CS. GF.,3S8

sub69217-48010

main69217-48010-E2iAWL10,GRL10,11,GWL10..RHD201201-201510

FIRE AGATE M.M.,4V3

sub69217-48010

main69217-48010-E3iGRL10,11,GWL10..RHD201201-201309

SLEEK ECRU ME.,4U7

sub69217-48010

main69217-48010-E4iARL10,AWL10,GRL12,GWL10..RHD201510-202007

AMBER CS.,4X2

sub69217-48010

main69217-48010-J3iAWL10,GRL10,11,GWL10..RHD201201-201510

LAPIS LAZULI MC.,8V3

sub69217-48010

main69217-48010-J4iAWL10,GRL10,11,GWL10..RHD201201-201510

METEOR BLUE M.M.,8W3

sub69217-48010

main69217-48010-J5iARL10,AWL10,GRL12,GWL10..RHD201510-202007

DEEP BLUE MC.,8X5

sub69217-48010

main69217-48010-J6iARL10,AWL10,GRL12,GWL10..RHD201510-202007

HEAT BLUE CONTRAST LAYERI,8X1

sub69217-48010

main69217-48020-A0iAWL10,GRL1#,GWL10..LHD201201-201510

WHITE PEARL CS.,077

sub69217-48020

main69217-48020-A2iARL10,AWL10,GRL12,GWL10..LHD201309-202007

WHITE NOVA GF.,083

sub69217-48020

main69217-48020-A3iARL10,AWL10,GRL12,GWL10..LHD201510-202007

SONIC QUARTZ,085

sub69217-48020

main69217-48020-B0iARL10,AWL10,GRL12,GWL10..LHD201609-202007

DK.GRAY MC.,1G0

sub69217-48020

main69217-48020-B4iAWL10,GRL1#,GWL10..LHD201201-201609

MERCURY GRAY MC.,1H9

sub69217-48020

main69217-48020-B5iARL10,AWL10,GRL12,GWL10..LHD201201-202007

SONIC SILVER,1J2

sub69217-48020

main69217-48020-B7iAWL10,GRL1#,GWL10..LHD201409-202007

SONIC TITANIUM,1J7

sub69217-48020

main69217-48020-C0iGRL10..LHD..6FC;GRL10..LHD..8FC..GEN;AWL10,GRL11,15,GWL10..LHD..GEN201201-201510

BLACK,212 ,2MH

sub69217-48020

main69217-48020-C0iGRL10..LHD..6FC;GRL10..LHD..8FC..GEN;AWL10,GRL11,15,GWL10..LHD..GEN201201-202007

BLACK,212

sub69217-48020

main69217-48020-C1iAWL10,GRL1#,GWL10..LHD201201-201409

BLACK OPAL MC.,214

sub69217-48020

main69217-48020-C2iAWL10,GRL1#,GWL10..LHD201201-201510

STARLIGHT BLACK GF.,217

sub69217-48020

main69217-48020-C3iARL10,AWL10,GRL12,GWL10..LHD201510-202007

GRAPHITE BLACK GF.,223

sub69217-48020

main69217-48020-D0iARL10,AWL10,GRL12,GWL10..LHD201510-202007

RED MC.CS.,3R1

sub69217-48020

main69217-48020-D1iAWL10,GRL1#,GWL10..LHD201201-201510

CRIMSON CS. GF.,3S8

sub69217-48020

main69217-48020-E2iAWL10,GRL1#,GWL10..LHD201201-201510

FIRE AGATE M.M.,4V3

sub69217-48020

main69217-48020-E3iGRL1#,GWL10..LHD201201-201309

SLEEK ECRU ME.,4U7

sub69217-48020

main69217-48020-E4iARL10,AWL10,GRL12,GWL10..LHD201510-202007

AMBER CS.,4X2

sub69217-48020

main69217-48020-J3iAWL10,GRL1#,GWL10..LHD201201-201510

LAPIS LAZULI MC.,8V3

sub69217-48020

main69217-48020-J4iAWL10,GRL1#,GWL10..LHD201201-201510

METEOR BLUE M.M.,8W3

sub69217-48020

main69217-48020-J5iARL10,AWL10,GRL12,GWL10..LHD201510-202007

DEEP BLUE MC.,8X5

sub69217-48020

main69217-48020-J6iARL10,AWL10,GRL12,GWL10..LHD201510-202007

HEAT BLUE CONTRAST LAYERI,8X1

sub69217-48020

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69218-48010-A0iAWL10,GRL10,11,GWL10..RHD201201-201510

WHITE PEARL CS.,077

sub69218-48010

main69218-48010-A2iAWL10,GRL10,11,GWL10..RHD201309-202007

WHITE NOVA GF.,083

sub69218-48010

main69218-48010-A3iARL10,AWL10,GRL12,GWL10..RHD201510-202007

SONIC QUARTZ,085

sub69218-48010

main69218-48010-B0iARL10,AWL10,GRL12,GWL10..RHD201609-202007

DK.GRAY MC.,1G0

sub69218-48010

main69218-48010-B4iAWL10,GRL10,11,GWL10..RHD201201-201609

MERCURY GRAY MC.,1H9

sub69218-48010

main69218-48010-B5iAWL10,GRL10,11,GWL10..RHD201201-202007

SONIC SILVER,1J2

sub69218-48010

main69218-48010-B7iARL10,AWL10,GRL12,GWL10..RHD201409-202007

SONIC TITANIUM,1J7

sub69218-48010

main69218-48010-C0iARL10,AWL10,GRL12,GWL10..RHD201201-202007

BLACK,212

sub69218-48010

main69218-48010-C1iAWL10,GRL10,11,GWL10..RHD201201-201409

BLACK OPAL MC.,214

sub69218-48010

main69218-48010-C2iAWL10,GRL10,11,GWL10..RHD201201-201510

STARLIGHT BLACK GF.,217

sub69218-48010

main69218-48010-C3iARL10,AWL10,GRL12,GWL10..RHD201510-202007

GRAPHITE BLACK GF.,223

sub69218-48010

main69218-48010-D0iARL10,AWL10,GRL12,GWL10..RHD201510-202007

RED MC.CS.,3R1

sub69218-48010

main69218-48010-D1iAWL10,GRL10,11,GWL10..RHD201201-201510

CRIMSON CS. GF.,3S8

sub69218-48010

main69218-48010-E2iAWL10,GRL10,11,GWL10..RHD201201-201510

FIRE AGATE M.M.,4V3

sub69218-48010

main69218-48010-E3iGRL10,11,GWL10..RHD201201-201309

SLEEK ECRU ME.,4U7

sub69218-48010

main69218-48010-E4iARL10,AWL10,GRL12,GWL10..RHD201510-202007

AMBER CS.,4X2

sub69218-48010

main69218-48010-J3iAWL10,GRL10,11,GWL10..RHD201201-201510

LAPIS LAZULI MC.,8V3

sub69218-48010

main69218-48010-J4iAWL10,GRL10,11,GWL10..RHD201201-201510

METEOR BLUE M.M.,8W3

sub69218-48010

main69218-48010-J5iARL10,AWL10,GRL12,GWL10..RHD201510-202007

DEEP BLUE MC.,8X5

sub69218-48010

main69218-48010-J6iARL10,AWL10,GRL12,GWL10..RHD201510-202007

HEAT BLUE CONTRAST LAYERI,8X1

sub69218-48010

main69218-48020-A0iAWL10,GRL1#,GWL10..LHD201201-201510

WHITE PEARL CS.,077

sub69218-48020

main69218-48020-A2iAWL10,GRL10,11,GWL10..LHD201309-202007

WHITE NOVA GF.,083

sub69218-48020

main69218-48020-A3iARL10,AWL10,GRL12,GWL10..LHD201510-202007

SONIC QUARTZ,085

sub69218-48020

main69218-48020-B0iARL10,AWL10,GRL12,GWL10..LHD201609-202007

DK.GRAY MC.,1G0

sub69218-48020

main69218-48020-B4iAWL10,GRL1#,GWL10..LHD201201-201609

MERCURY GRAY MC.,1H9

sub69218-48020

main69218-48020-B5iARL10,AWL10,GRL12,GWL10..LHD201201-202007

SONIC SILVER,1J2

sub69218-48020

main69218-48020-B7iAWL10,GRL1#,GWL10..LHD201409-202007

SONIC TITANIUM,1J7

sub69218-48020

main69218-48020-C0iGRL10..LHD..6FC;GRL10..LHD..8FC..GEN;AWL10,GRL11,15,GWL10..LHD..GEN201201-201510

BLACK,212 ,2MH

sub69218-48020

main69218-48020-C0iGRL10..LHD..6FC;GRL10..LHD..8FC..GEN;AWL10,GRL11,15,GWL10..LHD..GEN201201-202007

BLACK,212

sub69218-48020

main69218-48020-C1iAWL10,GRL1#,GWL10..LHD201201-201409

BLACK OPAL MC.,214

sub69218-48020

main69218-48020-C2iAWL10,GRL1#,GWL10..LHD201201-201510

STARLIGHT BLACK GF.,217

sub69218-48020

main69218-48020-C3iARL10,AWL10,GRL12,GWL10..LHD201510-202007

GRAPHITE BLACK GF.,223

sub69218-48020

main69218-48020-D0iARL10,AWL10,GRL12,GWL10..LHD201510-202007

RED MC.CS.,3R1

sub69218-48020

main69218-48020-D1iAWL10,GRL1#,GWL10..LHD201201-201510

CRIMSON CS. GF.,3S8

sub69218-48020

main69218-48020-E2iAWL10,GRL1#,GWL10..LHD201201-201510

FIRE AGATE M.M.,4V3

sub69218-48020

main69218-48020-E3iGRL1#,GWL10..LHD201201-201309

SLEEK ECRU ME.,4U7

sub69218-48020

main69218-48020-E4iARL10,AWL10,GRL12,GWL10..LHD201510-202007

AMBER CS.,4X2

sub69218-48020

main69218-48020-J3iAWL10,GRL1#,GWL10..LHD201201-201510

LAPIS LAZULI MC.,8V3

sub69218-48020

main69218-48020-J4iAWL10,GRL1#,GWL10..LHD201201-201510

METEOR BLUE M.M.,8W3

sub69218-48020

main69218-48020-J5iARL10,AWL10,GRL12,GWL10..LHD201510-202007

DEEP BLUE MC.,8X5

sub69218-48020

main69218-48020-J6iARL10,AWL10,GRL12,GWL10..LHD201510-202007

HEAT BLUE CONTRAST LAYERI,8X1

sub69218-48020

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-48040-A0iAWL10,GRL1#,GWL10..LHD201201-201510

WHITE PEARL CS.,077

sub69220-48040

main69220-48040-A2iAWL10,GRL10,11,GWL10..RHD201309-202007

WHITE NOVA GF.,083

sub69220-48040

main69220-48040-A3iARL10,AWL10,GRL12,GWL10201510-202007

SONIC QUARTZ,085

sub69220-48040

main69220-48040-B0iARL10,AWL10,GRL12,GWL10201609-202007

DK.GRAY MC.,1G0

sub69220-48040

main69220-48040-B4iAWL10,GRL10,11,GWL10..RHD201201-201609

MERCURY GRAY MC.,1H9

sub69220-48040

main69220-48040-B5iAWL10,GRL1#,GWL10..LHD201201-202007

SONIC SILVER,1J2

sub69220-48040

main69220-48040-B7iAWL10,GRL1#,GWL10..LHD201409-202007

SONIC TITANIUM,1J7

sub69220-48040

main69220-48040-C0iAWL10,GRL10,11,GWL10..RHD201201-201510

BLACK,212 ,2MH

sub69220-48040

main69220-48040-C0iAWL10,GRL10,11,GWL10..RHD201201-202007

BLACK,212

sub69220-48040

main69220-48040-C1iAWL10,GRL10,11,GWL10..RHD201201-201409

BLACK OPAL MC.,214

sub69220-48040

main69220-48040-C2iAWL10,GRL1#,GWL10..LHD201201-201510

STARLIGHT BLACK GF.,217

sub69220-48040

main69220-48040-C3iARL10,AWL10,GRL12,GWL10201510-202007

GRAPHITE BLACK GF.,223

sub69220-48040

main69220-48040-D0iARL10,AWL10,GRL12,GWL10201510-202007

RED MC.CS.,3R1

sub69220-48040

main69220-48040-D1iAWL10,GRL10,11,GWL10..RHD201201-201510

CRIMSON CS. GF.,3S8

sub69220-48040

main69220-48040-E2iAWL10,GRL1#,GWL10..LHD201201-201510

FIRE AGATE M.M.,4V3

sub69220-48040

main69220-48040-E3iGRL1#,GWL10..LHD201201-201309

SLEEK ECRU ME.,4U7

sub69220-48040

main69220-48040-E4iARL10,AWL10,GRL12,GWL10201510-202007

AMBER CS.,4X2

sub69220-48040

main69220-48040-J3iAWL10,GRL1#,GWL10..LHD201201-201510

LAPIS LAZULI MC.,8V3

sub69220-48040

main69220-48040-J4iAWL10,GRL1#,GWL10..LHD201201-201510

METEOR BLUE M.M.,8W3

sub69220-48040

main69220-48040-J5iARL10,AWL10,GRL12,GWL10201510-202007

DEEP BLUE MC.,8X5

sub69220-48040

main69220-48040-J6iARL10,AWL10,GRL12,GWL10201510-202007

HEAT BLUE CONTRAST LAYERI,8X1

sub69220-48040

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-48030iARL10,AWL10,GRL12,GWL10201201-202007

RH

main69242-48030iAWL10,GRL1#,GWL10201201-202007

LH

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69241-48041iGRL1#,GWL10201201-201302

RH

sub69241-48050

main69241-48050iAWL10,GRL1#,GWL10201303-202007

RH

main69242-48041iGRL1#,GWL10201201-201302

LH

sub69242-48050

main69242-48050iAWL10,GRL1#,GWL10201303-202007

LH

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30050-C0iARL10,GRL12,GWL10..GCC201510-202007

BLACK,TRIM0#,1#,2#,3#,5#,6#

sub69283-30050

main69283-30050-C0iARL10,AWL10,GRL12,GWL10..ARL,GEN201201-202007

BLACK,TRIM0#,1#,2#,3#,4#,5#

sub69283-30050

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-30050-C0iARL10,AWL10,GRL12,GWL10..ARL,GEN201201-202007

BLACK,TRIM0#,1#,2#,3#,4#,5#

sub69284-30050

main69284-30050-C0iARL10,GRL12,GWL10..GCC201510-202007

BLACK,TRIM0#,1#,2#,3#,5#,6#

sub69284-30050

69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iAWL10,GRL1#,GWL10201201-202007

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iARL10,AWL10,GRL12,GWL10201201-202007

69310LOCK ASSY, FRONT DOOR, RH

main69030-42210iGRL10..RHD201201-202007

main69030-42221iARL10,AWL10,GRL12,GWL10..LHD201201-202007

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-30150iARL10,AWL10,GRL12,GWL10201201-202007

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-30150iGRL10..8FC;AWL10,GRL11,15,GWL10201201-202007

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iGRL10..8FC;AWL10,GRL11,15,GWL10201201-202007

69320LOCK ASSY, FRONT DOOR, LH

main69040-42230iGRL10..RHD201201-202007

main69040-42241iGRL10..LHD201201-202007

69395BUSH(FOR DOOR OUTSIDE HANDLE)

main69239-30010iAWL10,GRL1#,GWL10201201-202007

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-30060iARL10,AWL10,GRL12,GWL10201201-202007

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-33010iGRL1#,GWL10201201-201209

main69415-60020iGRL10201210-202007

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-30220iGRL10201201-202007

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-30220iGRL10201201-202007

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-30180iGRL10201201-202007

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-30180iGRL10201201-202007

6923730010RETAINER, DOOR OUTSIDE HANDLE

main69237-30010

6929630010SCREW, DOOR INSIDE HANDLE

main69296-30010

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9016450031

main90164-50031

9018905003

main90189-05003

9321914008

main93219-14008

35 parts on this diagram · 1 diagram in section
