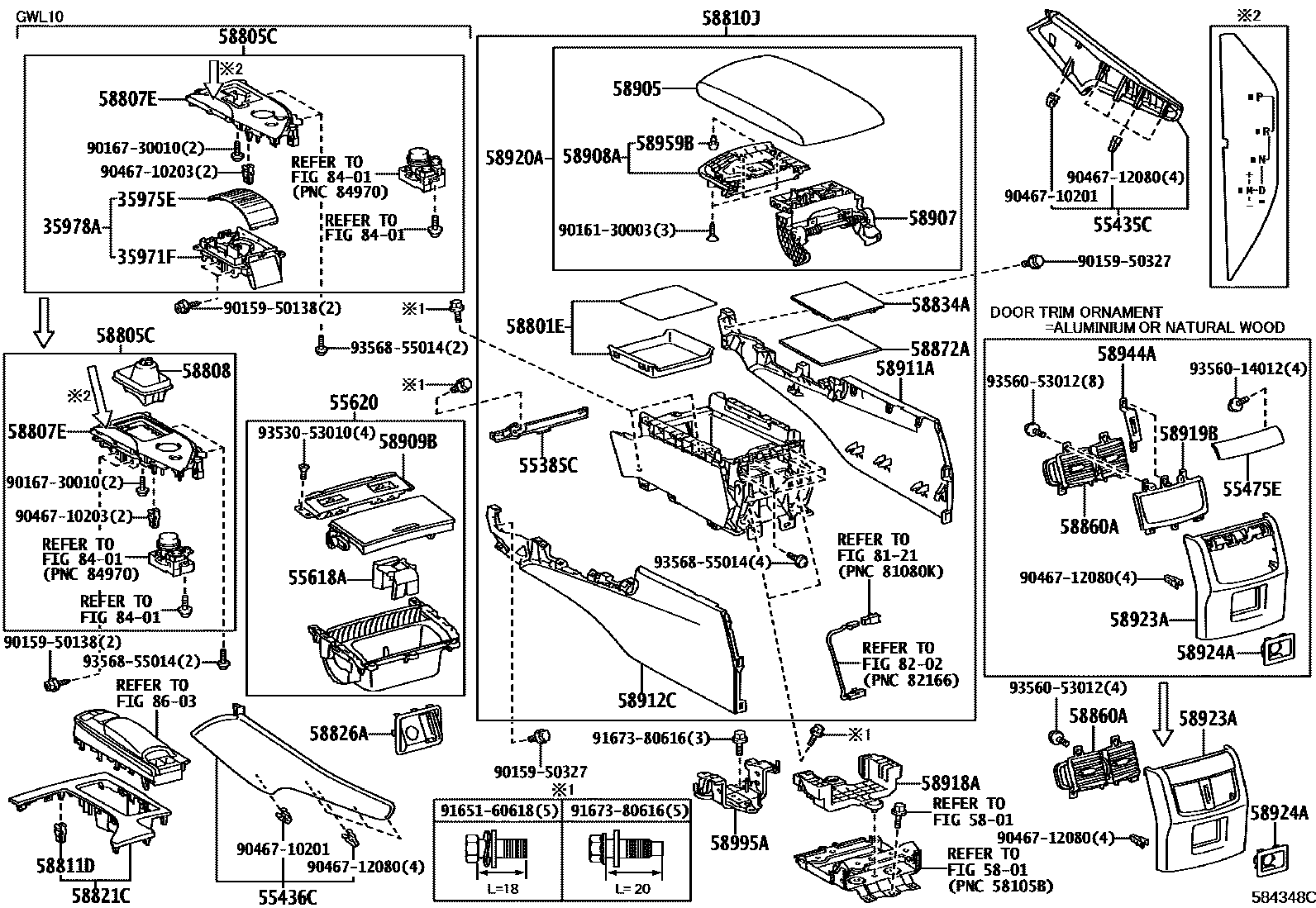

CONSOLE BOX & BRACKET
35971FHOUSING, POSITION INDICATOR
35975ECOVER, SLIDE (FOR POSITION INDICATOR)
35978AINDICATOR, SHIFT POSITION
55385CBRACKET, CONSOLE BOX MOUNTING, NO.5
55435CPANEL, INSTRUMENT PANEL FINISH, END RH
RICH CREAM,TRIM0#
RICH CREAM,TRIM0#
CHATEAU,TRIM1#
CHATEAU,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#
DK.ROSE,TRIM3#
DK.ROSE,TRIM3#
SADDLE TAN,TRIM4#
NOBLE BROWN,TRIM6#
SADDLE TAN,TRIM4#
NOBLE BROWN,TRIM6#
TOPAZ BROWN,TRIM5#
TOPAZ BROWN,TRIM5#
IVORY/IVORY,TRIM0#
LT.GRAY/BLACK,TRIM1#
BLACK/LT.GRAY,TRIM2#
BLACK/RED,TRIM33
GARNET/LT.GRAY,TRIM3#
GARNET/LT.GRAY,TRIM30,31,32
SADDLE TAN/BLACK,TRIM4#
TOPAZ BROWN/CHOCOLATE BRO,TRIM5#
IVORY/IVORY,TRIM0#
LT.GRAY/BLACK,TRIM1#
BLACK/LT.GRAY,TRIM2#
GARNET/LT.GRAY,TRIM3#
SADDLE TAN/BLACK,TRIM4#
TOPAZ BROWN/CHOCOLATE BRO,TRIM5#
RICH CREAM,TRIM0#
RICH CREAM,TRIM0#
CHATEAU,TRIM1#
CHATEAU,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#
DK.ROSE,TRIM3#
DK.ROSE,TRIM3#
NOBLE BROWN,TRIM6#
NOBLE BROWN,TRIM6#
TOPAZ BROWN,TRIM5#
TOPAZ BROWN,TRIM5#
55436CPANEL, INSTRUMENT PANEL FINISH, END LH
IVORY/IVORY,TRIM0#
LT.GRAY/BLACK,TRIM1#
BLACK/LT.GRAY,TRIM2#
BLACK/RED,TRIM33
GARNET/LT.GRAY,TRIM3#
GARNET/LT.GRAY,TRIM30,31,32
SADDLE TAN/BLACK,TRIM4#
TOPAZ BROWN/CHOCOLATE BRO,TRIM5#
IVORY/IVORY,TRIM0#
LT.GRAY/BLACK,TRIM1#
BLACK/LT.GRAY,TRIM2#
GARNET/LT.GRAY,TRIM3#
SADDLE TAN/BLACK,TRIM4#
TOPAZ BROWN/CHOCOLATE BRO,TRIM5#
55475EGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER
55618AHOLDER, CONSOLE BOX CUP
55620HOLDER ASSY, INSTRUMENT PANEL CUP
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT ONLY),-BLACK,TRIM0#,1#,2#,4#,5#
-BLACK,TRIM0#,1#,2#,4#,5#
SEAT COVER MATERIAL-LEATHER,-BLACK,TRIM0#,1#,2#,4#,5#
SEAT HEATER-WITH(FRONT SEAT ONLY),-BLACK,TRIM0#,1#,2#,4#,5#
-BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,1#,2#,5#,6#
5801
58801EBOX SUB-ASSY, CONSOLE, UPPER
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
BLACK/IVORY,TRIM0#
BLACK/IVORY,TRIM0#,5#
BLACK/LT.GRAY NO.094,TRIM1#,2#,4#
BLACK/IVORY,TRIM0#,40,41,43,5#
BLACK/IVORY,TRIM0#,40,41,42,43,5#
BLACK/IVORY,TRIM0#,4#
BLACK/LT.GRAY NO.094,TRIM1#,2#,40,41,43
BLACK/LT.GRAY NO.094,TRIM1#,2#
BLACK/IVORY,TRIM0#,5#
BLACK/IVORY,TRIM0#
BLACK/LT.GRAY NO.094,TRIM1#,2#,4#
VERSION L,BLACK/IVORY,TRIM00,01,02,50,51,52
BLACK/IVORY,TRIM00,01,02,03,50,51,52
F SPORT,BLACK/IVORY,TRIM00,01,02,50,51,52
VERSION L,BLACK/LT.GRAY,TRIM04,05,06,2#,3#,4#,54,55,56
BLACK/LT.GRAY,TRIM04,05,06,1#,2#,3#,4#,54,55,56
F SPORT,BLACK/LT.GRAY,TRIM04,05,06,2#,3#,4#,54,55,56
BLACK/IVORY,TRIM00,01,02,03,4#,50,51,52
BLACK/LT.GRAY,TRIM0#,1#,2#,30,31,32,54,55,56
BLACK/LT.GRAY,TRIM04,05,06,1#,2#,3#,54,55,56
BLACKR/RED,TRIM33
VERSION L,BLACK/IVORY,TRIM00,01,02,50,51,52
BLACK/IVORY,TRIM00,01,02,03,50,51,52
F SPORT,BLACK/IVORY,TRIM00,01,02,50,51,52
VERSION L,BLACK/LT.GRAY,TRIM04,05,06,2#,3#,4#,54,55,56
BLACK/LT.GRAY,TRIM04,05,06,1#,2#,3#,4#,54,55,56
F SPORT,BLACK/LT.GRAY,TRIM04,05,06,2#,3#,4#,54,55,56
BLACK/IVORY,TRIM0#
BLACK/LT.GRAY,TRIM1#,2#,4#
BLACK/IVORY,TRIM0#
BLACK/LT.GRAY,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,5#,6#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK/IVORY,TRIM4#
BLACK/LT.GRAY,TRIM0#,1#,2#,5#
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,5#,6#
BLACK,TRIM0#,1#,2#,3#,5#,6#
VERSION L,BLACK,TRIM0#,1#,2#,3#,5#,6#
F SPORT,BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK/IVORY,TRIM4#
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,5#
F SPORT,BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,3#,5#,6#
VERSION L,BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,5#,6#
BLACK,TRIM0#,1#,2#,5#,6#
58807EFRAME SUB-ASSY, SHIFTING HOLE
F SPORT
VERSION L
VERSION L
F SPORT
F SPORT
VERSION L
VERSION L
F SPORT
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK/IVORY,TRIM0#,4#
F SPORT,BLACK/IVORY,TRIM00,01,02,4#,50,51,52
VERSION L,BLACK/IVORY,TRIM00,01,02,4#,50,51,52
BLACK/IVORY,TRIM00,01,02,03,4#,50,51,52
BLACK/IVORY,TRIM00,01,02,03,50,51,52
BLACK/IVORY,TRIM0#
BLACK/IVORY,TRIM0#,40,41,43,5#
BLACK/IVORY,TRIM0#,5#
BLACK/IVORY,TRIM0#,40,41,42,43,5#
F SPORT,BLACK/IVORY,TRIM0#,40,41,42,50,51,52,54,55,56
VERSION L,BLACK/IVORY,TRIM0#,40,41,42,50,51,52,54,55,56
THE CRAFTED LINE,BLACK/LT.GRAY NO.094,TRIM0#,2#,30,31,32,40,41,54,55,56
BLACK/LT.GRAY NO.094,TRIM04,05,06,1#,2#,3#,54,55,56
F SPORT,BLACK/LT.GRAY NO.094,TRIM04,05,06,2#,3#,54,55,56
VERSION L,BLACK/LT.GRAY NO.094,TRIM04,05,06,2#,3#,54,55,56
BLACK/LT.GRAY NO.094,TRIM1#,2#,40,41,43
BLACK/LT.GRAY NO.094,TRIM1#,2#,4#
BLACK/LT.GRAY NO.094,TRIM04,05,06,1#,2#,3#,4#,54,55,56
BLACK/LT.GRAY NO.094,TRIM1#,2#
BLACK/LT.GRAY NO.094,TRIM0#,1#,2#,30,31,32,54,55,56
F SPORT,BLACK/LT.GRAY NO.094,TRIM0#,2#,30,31,32,40,41,54,55,56
F SPORT,BLACK/LT.GRAY NO.094,TRIM04,05,06,2#,30,31,32,54,55,56
VERSION L,BLACK/LT.GRAY NO.094,TRIM0#,2#,30,31,32,40,41,54,55,56
VERSION L,BLACK/LT.GRAY NO.094,TRIM04,05,06,2#,30,31,32,54,55,56
THE CRAFTED LINE,BLACK/LT.GRAY NO.094,TRIM04,05,06,2#,30,31,32,54,55,56
BLACK/RED,TRIM33
THE CRAFTED LINE,BLACK/RED,TRIM33
VERSION L,BLACK/RED,TRIM33
F SPORT,BLACK/RED,TRIM33
VERSION L,BLACK/IVORY,TRIM00,01,02,50,51,52
BLACK/IVORY,TRIM0#
BLACK/IVORY,TRIM0#,5#
BLACK/IVORY,TRIM00,01,02,03,50,51,52
F SPORT,BLACK/IVORY,TRIM00,01,02,50,51,52
BLACK/LT.GRAY NO.094,TRIM04,05,06,1#,2#,3#,4#,54,55,56
VERSION L,BLACK/LT.GRAY NO.094,TRIM04,05,06,2#,3#,4#,54,55,56
BLACK/LT.GRAY NO.094,TRIM1#,2#,4#
F SPORT,BLACK/LT.GRAY NO.094,TRIM04,05,06,2#,3#,4#,54,55,56
BLACK/IVORY,TRIM4#
BLACK/LT.GRAY,TRIM0#,1#,2#,5#
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,5#
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,5#,6#
BLACK/LT.GRAY,TRIM0#,1#,2#,5#,6#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,5#,6#
58810JBOX ASSY, CONSOLE
BLACK/TOPAZ BROWN/CHOCOLA,TRIM5#
sub58810-30C71
BLACK/BLACK/LT. GRAY NO.0,TRIM2#
sub58810-30C71
BLACK/GARNET/LT.GRAY NO.0,TRIM3#
sub58810-30C71
BLACK/GARNET/LT.GRAY NO.0,TRIM30,31,32
sub58810-30C71
BLACK/IVORY/IVORY,TRIM0#
BLACK/TOPAZ BROWN/CHOCOLA,TRIM5#
BLACK/BLACK/LT.GRAY NO.09,TRIM2#
BLACK/GARNET/LT.GRAY NO.0,TRIM3#
BLACK/SADDLE TAN/BLACK,TRIM4#
BLACK/LT.GRAY/BLACK,TRIM1#
BLACK/NOBLE BROWN,TRIM6#
sub58810-30E01
BLACK/RICH CREAM,TRIM0#
BLACK/BLACK,TRIM2#
BLACK/SADDLE TAN,TRIM4#
BLACK/NOBLE BROWN,TRIM6#
BLACK/TOPAZ BROWN,TRIM5#
BLACK/CHATEAU,TRIM1#
BLACK/DK.ROSE,TRIM3#
BLACK/RICH CREAM,TRIM0#
BLACK/BLACK,TRIM2#
BLACK/NOBLE BROWN,TRIM6#
BLACK/TOPAZ BROWN,TRIM5#
BLACK/CHATEAU,TRIM1#
BLACK/DK.ROSE,TRIM3#
58811DCLIP(FOR CONSOLE BOX)
58821CPANEL, CONSOLE, UPPER
BLACK,TRIM0#,1#,2#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,1#,2#,5#,6#
-BLACK,TRIM0#,1#,2#,4#
-BLACK,TRIM0#,1#,2#,4#,5#
-BLACK,TRIM0#,1#,2#,4#
-BLACK,TRIM0#,1#,2#,4#,5#
58826APOCKET, CONSOLE BOX, LOWER
58834ACOVER, CONSOLE, LOWER
58860AREGISTER ASSY, CONSOLE BOX
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
F SPORT&DOOR TRIM ORNAMENT-ALUMINUM,BLACK,TRIM0#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#
DOOR TRIM ORNAMENT-NATURAL WOOD,BLACK,TRIM0#,1#,2#,3#,4#,5#
DOOR TRIM ORNAMENT-WOOD(BAMBOO OR SHIMAMOKU),BLACK,TRIM0#,1#,2#,3#,5#,6#
DOOR TRIM ORNAMENT-WALNUT(OPEN PORE),BLACK,TRIM0#,1#,2#,3#,4#,5#
DOOR TRIM ORNAMENT-WALNUT(OPEN PORE),BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,1#,2#,5#,6#
TAIWAN SPEC&VERSION L&DOOR TRIM ORNAMENT-WOOD(BAMBOO OR SHIMAMOKU),BLACK,TRIM0#,1#,2#,3#,5#,6#
TAIWAN SPEC&VERSION L&DOOR TRIM ORNAMENT-LAZER CUT WOOD,BLACK,TRIM0#,1#,2#,5#,6#
TAIWAN SPEC&VERSION L&DOOR TRIM ORNAMENT-WALNUT(OPEN PORE),BLACK,TRIM0#,1#,2#,3#,5#,6#
F SPORT&DOOR TRIM ORNAMENT-ALUMINUM,BLACK,TRIM2#,3#,5#
VERSION L&DOOR TRIM ORNAMENT-LAZER CUT WOOD,BLACK,TRIM0#,1#,2#,4#,5#
VERSION L&DOOR TRIM ORNAMENT-LAZER CUT WOOD,BLACK,TRIM0#,1#,2#,5#,6#
DOOR TRIM ORNAMENT-WOOD(BAMBOO OR SHIMAMOKU),BLACK,TRIM0#,1#,2#,3#,4#,5#
58872ACUSHION, CONSOLE BOX, NO.2
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
IVORY/IVORY,TRIM0#
LT.GRAY/BLACK,TRIM1#
BLACK/LT.GRAY NO.094,TRIM2#
BLACK/RED,TRIM33
GARNET/LT.GRAY NO.094,TRIM30,31,32
GARNET/LT.GRAY NO.094,TRIM3#
SADDLE TAN/BLACK,TRIM4#
TOPAZ BROWN/CHOCOLATE BRO,TRIM5#
IVORY/IVORY,TRIM0#
LT.GRAY/BLACK,TRIM1#
BLACK/LT.GRAY NO.094,TRIM2#
GARNET/LT.GRAY NO.094,TRIM3#
SADDLE TAN/BLACK,TRIM4#
TOPAZ BROWN/CHOCOLATE BRO,TRIM5#
RICH CREAM,TRIM0#
CHATEAU,TRIM1#
BLACK,TRIM2#
DK.ROSE,TRIM3#
SADDLE TAN,TRIM4#
NOBLE BROWN,TRIM6#
TOPAZ BROWN,TRIM5#
RICH CREAM,TRIM0#
CHATEAU,TRIM1#
BLACK,TRIM2#
DK.ROSE,TRIM3#
NOBLE BROWN,TRIM6#
TOPAZ BROWN,TRIM5#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58909BRETAINER SUB-ASSY, CONSOLE COMPARTMENT
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,1#,2#,4#,5#
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM0#,1#,2#,4#,5#
SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM0#,1#,2#,4#,5#
-BLACK,TRIM0#,2#
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,5#,6#
58918ABRACKET, BOX SUPPORT
58919BPLATE, CONSOLE BOX
58920AARMREST ASSY, REAR CONSOLE
IVORY/IVORY,TRIM0#
LT.GRAY/BLACK,TRIM1#
BLACK/LT.GRAY NO.094,TRIM2#
BLACK/RED,TRIM33
GARNET/LT.GRAY NO.094,TRIM3#
GARNET/LT.GRAY NO.094,TRIM30,31,32
SADDLE TAN/BLACK,TRIM4#
TOPAZ BROWN/CHOCOLATE BRO,TRIM5#
IVORY/IVORY,TRIM0#
LT.GRAY/BLACK,TRIM1#
BLACK/LT.GRAY NO.094,TRIM2#
GARNET/LT.GRAY NO.094,TRIM3#
SADDLE TAN/BLACK,TRIM4#
TOPAZ BROWN/CHOCOLATE BRO,TRIM5#
RICH CREAM,TRIM0#
CHATEAU,TRIM1#
BLACK,TRIM2#
DK.ROSE,TRIM3#
SADDLE TAN,TRIM4#
NOBLE BROWN,TRIM6#
TOPAZ BROWN,TRIM5#
RICH CREAM,TRIM0#
CHATEAU,TRIM1#
BLACK,TRIM2#
DK.ROSE,TRIM3#
NOBLE BROWN,TRIM6#
TOPAZ BROWN,TRIM5#
58923APANEL, CONSOLE REAR END
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#
58924APANEL, CONSOLE REAR END, NO.2
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
DOOR TRIM ORNAMENT-NATURAL WOOD,BLACK,TRIM0#,1#,2#,3#,4#,5#
F SPORT&DOOR TRIM ORNAMENT-ALUMINUM,BLACK,TRIM0#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#
58944ACOVER, CONSOLE, REAR
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
8121
8202
8401
8603
9015950138
main90159-50138
9015950327
main90159-50327
9016130003
main90161-30003
9016730010
main90167-30010
9046710201
main90467-10201
9046710203
main90467-10203
9046712080
main90467-12080
9165160618
main91651-60618
9167380616
main91673-80616
9353053010
main93530-53010
9356014012
main93560-14012
9356053012
main93560-53012
9356855014
main93568-55014
52 parts on this diagram · 4 diagrams in section
