MAT & CARPET
58510CCARPET ASSY, FRONT FLOOR, FRONT
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,1#,2#,5#,6#
BLACK,TRIM0#,1#,2#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#
F SPORT,BLACK,TRIM0#,2#,30,31,32,5#
F SPORT,BLACK,TRIM0#,2#,30,31,32,5#
F SPORT,BLACK,TRIM2#,3#,5#
F SPORT,BLACK,TRIM2#,3#,5#
F SPORT,BLACK,TRIM2#,3#,5#
F SPORT,BLACK,TRIM2#,3#,5#
58520CCLIP(FOR FRONT FLOOR CARPET)
LT.GRAY
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,4#,5#
58571FPAD, FRONT FLOOR, FRONT
58621GPAD, FRONT FLOOR SILENCER, RH
58622CPAD, FRONT FLOOR SILENCER, LH
58624CPAD, CENTER FLOOR SILENCER, RH
58625CPAD, CENTER FLOOR SILENCER, LH
58673CPAD, REAR FLOOR SILENCER, NO.1
58674BPAD, REAR FLOOR SILENCER, NO.2
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
6213530020FRAME, REAR SIDE WINDOW
main62135-30020
9016840061
main90168-40061

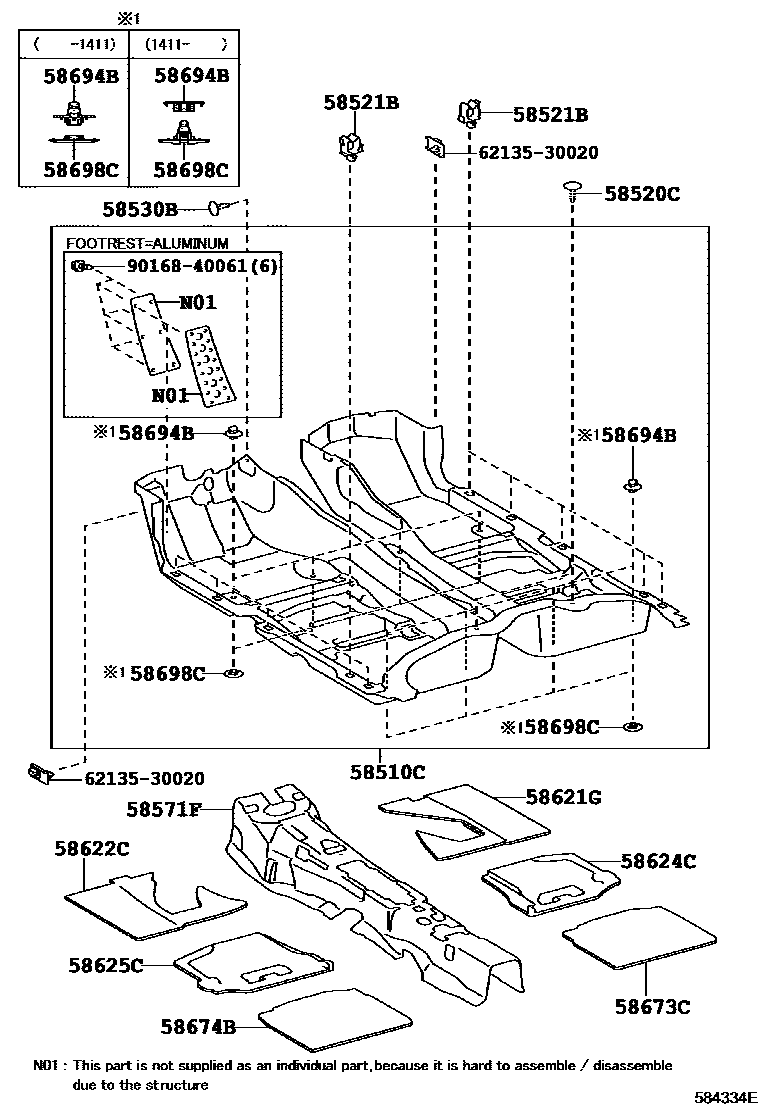

15 parts on this diagram · 3 diagrams in section
