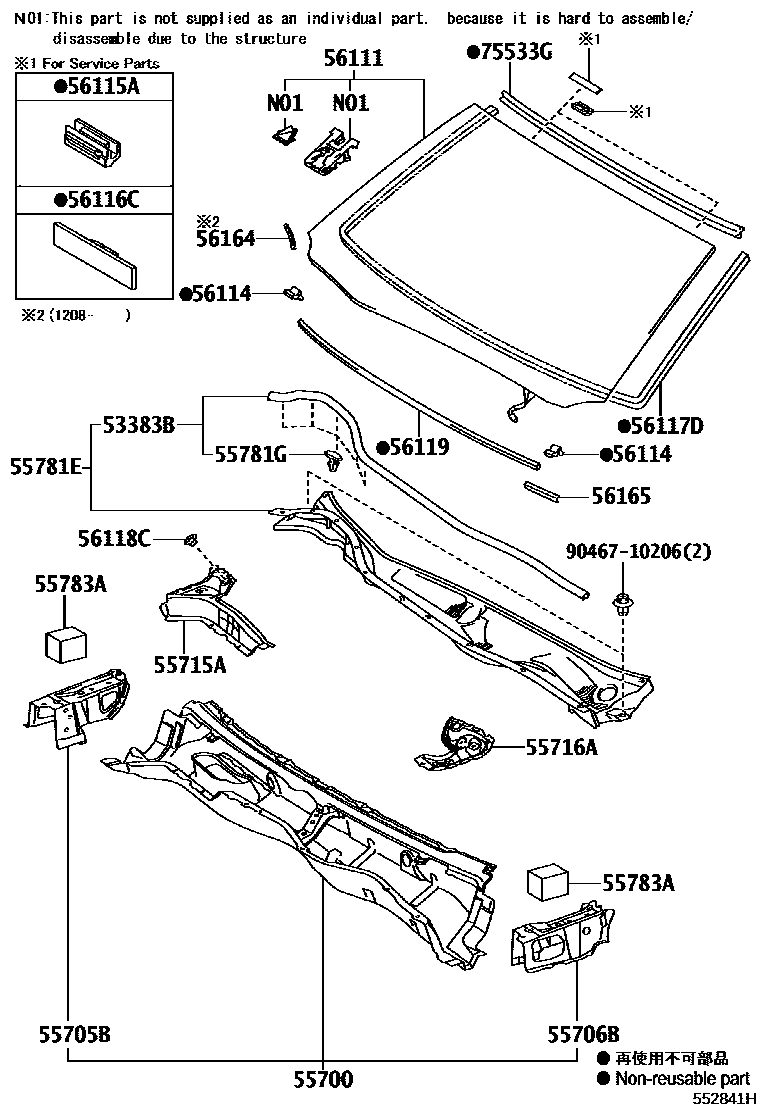

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55700PANEL ASSY, FRONT
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783APAD, COWL TOP SILENCER
56111GLASS, WINDSHIELD
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
HEAD UP DISPLAY-WITH
COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH
COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&LANE KEEPING ASSIST-WITH
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&LANE KEEPING ASSIST-WITH
HEAD UP DISPLAY-WITH
COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH
COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&LANE KEEPING ASSIST-WITH
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&NIGHT VIEW-WITH
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&LANE KEEPING ASSIST-WITH
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&NIGHT VIEW-WITH
COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&NIGHT VIEW-WITH
PRE-COLLISION SYSTEM-WITH
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
sub56101-3A977
sub86466-30040
sub86466-33041
PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
sub56101-3A978
sub86466-30040
sub86466-33041
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
sub56101-3A981
sub86466-30040
sub86466-33041
PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
sub56101-3A982
sub86466-30040
sub86466-33041
COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
sub56101-3A983
sub86466-30040
sub86466-33041
COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEADUP DISPLAY-WITH
sub56101-3A984
sub86466-30040
sub86466-33041
PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEADUP DISPLAY-WITH
PRE-COLLISION SYSTEM-WITH
PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
PRE-COLLISION SYSTEM-WITH
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
*D,L=2919,COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
56118CRETAINER, WINDSHIELD GLASS, NO.2
COLD AREA SPEC
56119SEAL, WINDSHIELD GLASS
56164COVER, FRONT WINDOW INNER MOULDING, RH
56165COVER, FRONT WINDOW INNER MOULDING, LH
75533GMOULDING, WINDSHIELD, OUTSIDE
9046710206
main90467-10206
20 parts on this diagram · 4 diagrams in section
