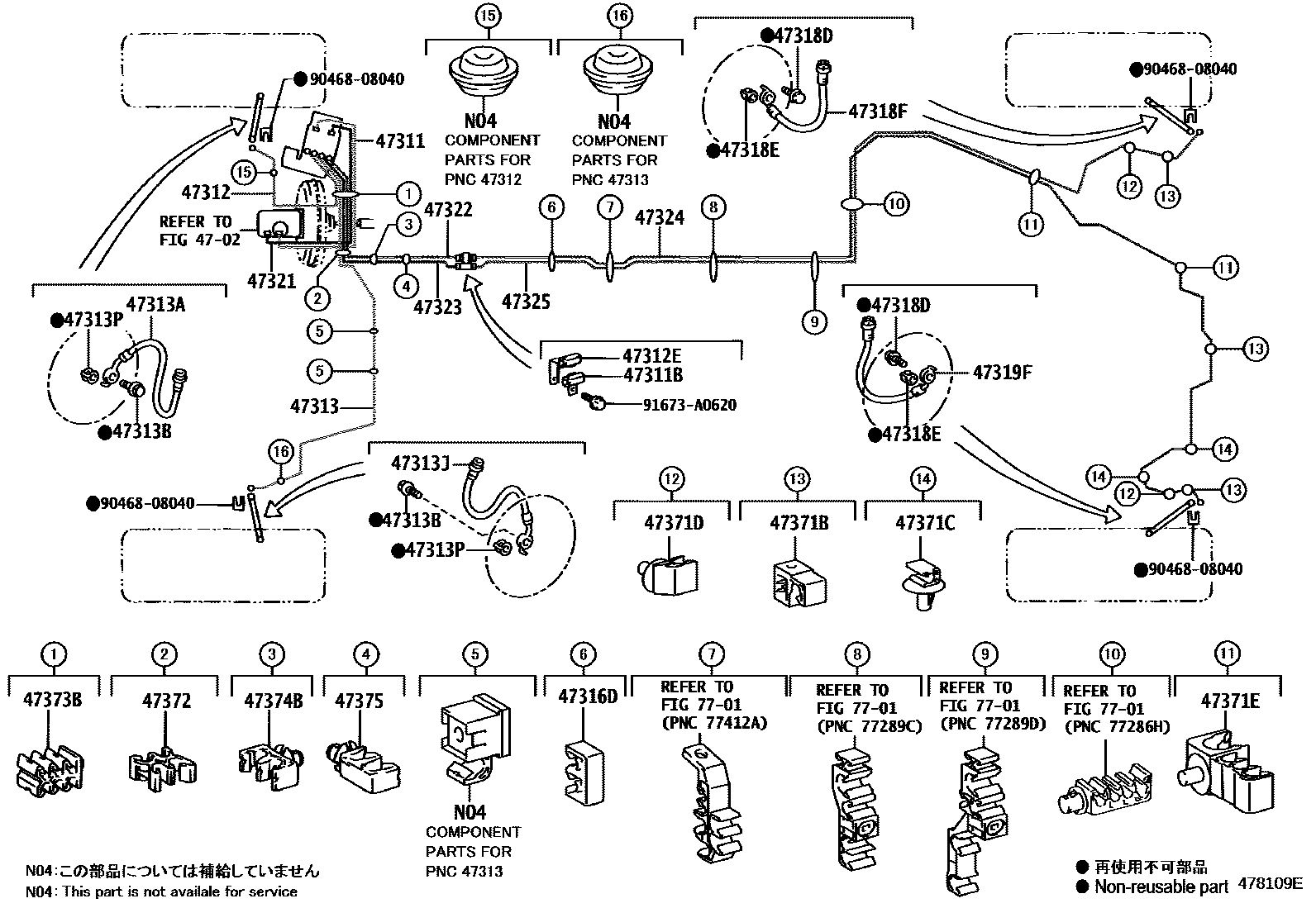

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE TUBE 0005 1BRAKE TUBE 0006 1BRAKE TUBE 0007 1BRAKE ACTUATOR 0008 1BRAKE ACTUATOR 0009 1BRAKE ACTUATOR 0010 1BRAKE ACTUATOR 0011 1BRAKE ACTUATOR 0012 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-24130iGRL10,11..RHD201409-201510

main47311-24140iGRL1#..LHD201408-201510

main47311-30710iGRL10..LHD201201-201309

main47311-30720iGRL11..RHD;GRL10..RHD..8FC201201-201408

main47311-30740iARL10,GRL12..RHD201510-202007

main47311-30750iARL10,GRL12..LHD201510-202007

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10290iGRL1#,GWL10201201-201309

main90412-10292iAWL10,GRL1#,GWL10201309-201510

47312TUBE, FRONT BRAKE, NO.2

main47312-24140iGRL10,11..RHD201409-201510

main47312-24150iGRL10,11..LHD201408-201510

main47312-24160iAWL10,GWL10..RHD201510-202007

main47312-24170iGRL15201408-201510

main47312-30680iAWL10,GWL10..LHD201203-201407

main47312-30730iGRL11..LHD;GRL10..LHD..8FC201201-201407

main47312-30740iGRL15201201-201407

main47312-30750iAWL10,GWL10..RHD201203-201407

main47312-30760iGRL11..RHD;GRL10..RHD..8FC201201-201408

main47312-30860iAWL10,GWL10..LHD201408-201510

main47312-30870iARL10,GRL12..RHD201510-202007

main47312-30890iARL10,GRL12..LHD201510-202007

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10275iGRL1#,GWL10201201-201309

main90412-10297iAWL10,GRL1#,GWL10201309-201510

47313TUBE, FRONT BRAKE, NO.3

main47313-24150iGRL10,11..RHD201408-201510

main47313-24160iGRL10,11..LHD201408-201510

main47313-24170iAWL10,GWL10..RHD201408-201510

main47313-24180iGRL15201409-201510

main47313-30640iAWL10,GWL10..LHD201203-201407

main47313-30700iGRL10..LHD201201-201309

main47313-30710iGRL15201201-201408

main47313-30720iGWL10..RHD201203-201309

main47313-30730iGRL10..RHD201201-201309

main47313-30780iAWL10,GWL10..RHD201309-201407

main47313-30850iAWL10,GWL10..LHD201408-201510

main47313-30860iARL10,GRL12..RHD201510-202007

main47313-30880iARL10,GRL12..LHD201510-202007

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02G56iARL10,AWL10,GRL12,GWL10201510-202007

main90947-02G58iGRL15201201-201510

main90947-02G57supersedes 90947-02G56iGRL10..LHD..GEN201201-201203

EGYPT SPEC

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iGRL10201201-201309

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02G56iARL10,AWL10,GRL12,GWL10201510-202007

main90947-02G59iGRL15201201-201510

main90947-02G57supersedes 90947-02G56iGWL10;GRL10..8FC201201-201510

F SPORT

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iGRL10201201-201309

47316DGROMMET(FOR REAR BRAKE TUBE)

main90480-01621iAWL10,GRL1#,GWL10201201-201510

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iGRL10201201-201309

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iGRL10201201-201309

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02G54iGRL10..8FC;AWL10,GRL11,15,GWL10201201-201510

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02G54iGRL10201201-201309

47321TUBE, REAR BRAKE, NO.1

main47321-24120iGRL10,11..RHD201409-201510

main47321-24130iGRL1#..LHD201408-201510

main47321-30420iGRL11,15..LHD;GRL10..LHD..8FC201201-201407

main47321-30430iGRL11..RHD;GRL10..RHD..8FC201201-201408

main47321-30440iARL10,GRL12..RHD201510-202007

main47321-30450iARL10,GRL12..LHD201510-202007

47322TUBE, REAR BRAKE, NO.2

main47322-24150iGRL10,11..RHD201408-201510

main47322-24160iGRL1#..LHD201408-201510

main47322-24170iAWL10,GWL10..RHD201510-202007

main47322-30430iGWL10..LHD201203-201309

main47322-30440iGRL1#..LHD201201-201309

main47322-30450iGWL10..RHD201203-201309

main47322-30460iGRL10,11..RHD201201-201309

main47322-30500iGRL10,11..RHD201309-201408

main47322-30510iGRL1#..LHD201309-201408

main47322-30520iAWL10,GWL10..RHD201309-201408

main47322-30530iAWL10,GWL10..LHD201309-201407

main47322-30570iAWL10,GWL10..LHD201408-201510

main47322-30580iARL10,GRL12..RHD201510-202007

main47322-30600iARL10,GRL12..LHD201510-202007

47323TUBE, REAR BRAKE, NO.3

main47323-24060iGRL10,11..RHD201408-201510

main47323-24070iGRL1#..LHD201408-201510

main47323-24080iAWL10,GWL10..RHD201510-202007

main47323-30390iGWL10..LHD201203-201309

main47323-30400iGRL1#..LHD201201-201309

main47323-30410iGWL10..RHD201203-201309

main47323-30420iGRL10,11..RHD201201-201309

main47323-30450iGRL10,11..RHD201309-201408

main47323-30460iGRL1#..LHD201309-201408

main47323-30470iAWL10,GWL10..RHD201309-201408

main47323-30480iAWL10,GWL10..LHD201309-201407

main47323-30510iAWL10,GWL10..LHD201510-202007

main47323-30520iARL10,GRL12..RHD201510-202007

main47323-30540iARL10,GRL12..LHD201510-202007

47324TUBE, REAR BRAKE, NO.4

main47324-30330iGRL1#,GWL10201201-201309

main47324-30360iARL10,AWL10,GRL12,GWL10201510-202007

main47324-30380iAWL10,GRL1#,GWL10201408-201508

47325TUBE, REAR BRAKE, NO.5

main47325-30110iGRL1#,GWL10201201-201309

main47325-30140iAWL10,GRL1#,GWL10201309-201408

main47325-30160iAWL10,GRL1#,GWL10201408-201508

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01C82×3iAWL10,GRL1#,GWL10201201-201510

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01D17×2iAWL10,GRL1#,GWL10201201-201510

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01D46×2iAWL10,GRL1#,GWL10201201-201510

47371ECLAMP, BRAKE TUBE, NO.9

main77286-30190×2iAWL10,GRL1#,GWL10201201-201510

47372CLAMP, BRAKE TUBE, NO.2

main90464-00876iAWL10,GWL10..RHD201510-202007

main90464-00880iGRL11,15..LHD;GRL10..LHD..8FC201201-201510

main90949-01D52iARL10,GRL12..LHD201510-202007

47373BCLAMP, BRAKE TUBE, NO.3

main90464-00880iGRL11..RHD;GRL10..RHD..8FC201201-201510

main90949-01D08iGRL11,15..LHD;GRL10..LHD..8FC201201-201510

main90949-01D12iAWL10,GWL10201510-202007

main90949-01D52iARL10,GRL12..RHD201510-202007

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D12iGRL11,15;GRL10..8FC201201-201510

main90949-01D13iAWL10,GWL10201510-202007

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D13iGRL11,15;GRL10..8FC201201-201510

7701

9046808040

main90468-08040

91673A0620

main91673-A0620

31 parts on this diagram · 12 diagrams in section
