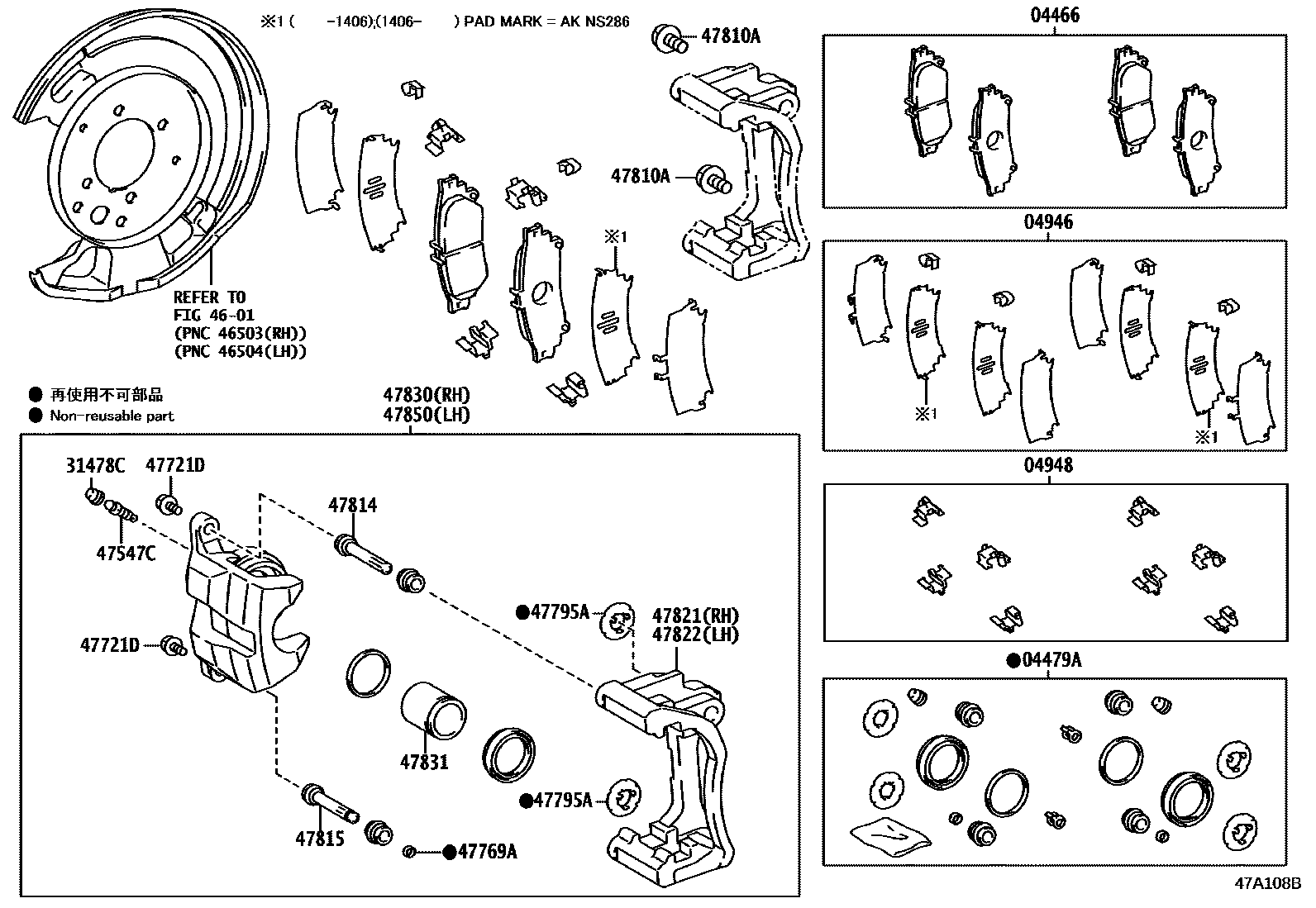

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-30280iGRL1#;GWL10..ARL,GEN201201-201212

MARK AK NS542

sub04466-30281

main04466-30290iGWL10..GCC201204-202007

MARK AK NS286

main04466-30310iAWL10,GRL1#;GWL10..ARL,GEN201301-201406

MARK AK NS542

sub04466-30311

main04466-30311iAWL10,GRL1#;GWL10..ARL,GEN201406-201710

MARK AK NS542

sub04466-30312

main04466-30312iGWL10..ARL,GEN;ARL10,AWL10,GRL12201710-202007

MARK AK NS542

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30580iARL10,AWL10,GRL12,GWL10201201-202007

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30210iGWL10..GCC201201-202007

REFER TO ILLUST.

main04946-30210iGRL1#;GWL10..ARL,GEN201201-201510

main04946-30220iGRL1#,GWL10201301-201303

sub04946-30210

main04946-30230iAWL10,GRL1#;GWL10..ARL,GEN201406-201510

REFER TO ILLUST.

main04946-30230iGWL10..ARL,GEN;ARL10,AWL10,GRL12201510-202007

04948FITTING KIT, DISC BRAKE, REAR

main04948-30230iGRL10201201-201405

main04948-30240iGWL10..GCC201311-202007

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-50020iGRL10201201-202007

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iGRL10201201-202007

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iGRL10201201-202007

*8-1.00PX23-15

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-33240iARL10,AWL10,GRL12,GWL10201201-202007

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30350iARL10,AWL10,GRL12,GWL10201201-202007

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12401iARL10,AWL10,GRL12,GWL10201709-202007

main90119-12414iGRL1#,GWL10201201-201206

main90119-12416iARL10,AWL10,GRL12,GWL10201207-201708

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-33240iARL10,AWL10,GRL12,GWL10201201-202007

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-33240iGRL10..8FC;AWL10,GRL11,15,GWL10201201-202007

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-30350iGRL10..8FC;GWL10..ARL,GEN;AWL10,GRL11,15201201-202007

main47821-30380iGWL10..GCC201204-202007

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-30350iGRL10201201-202007

main47822-30380iGWL10..GCC201204-202007

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-30350iGRL10..8FC;GWL10..ARL,GEN;AWL10,GRL11,15201201-202007

main47830-30380iGWL10..GCC201204-202007

47831PISTON, REAR DISC BRAKE

main47831-30310iGRL10201201-202007

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-30350iGRL10201201-202007

main47850-30380iGWL10..GCC201204-202007

18 parts on this diagram · 1 diagram in section
