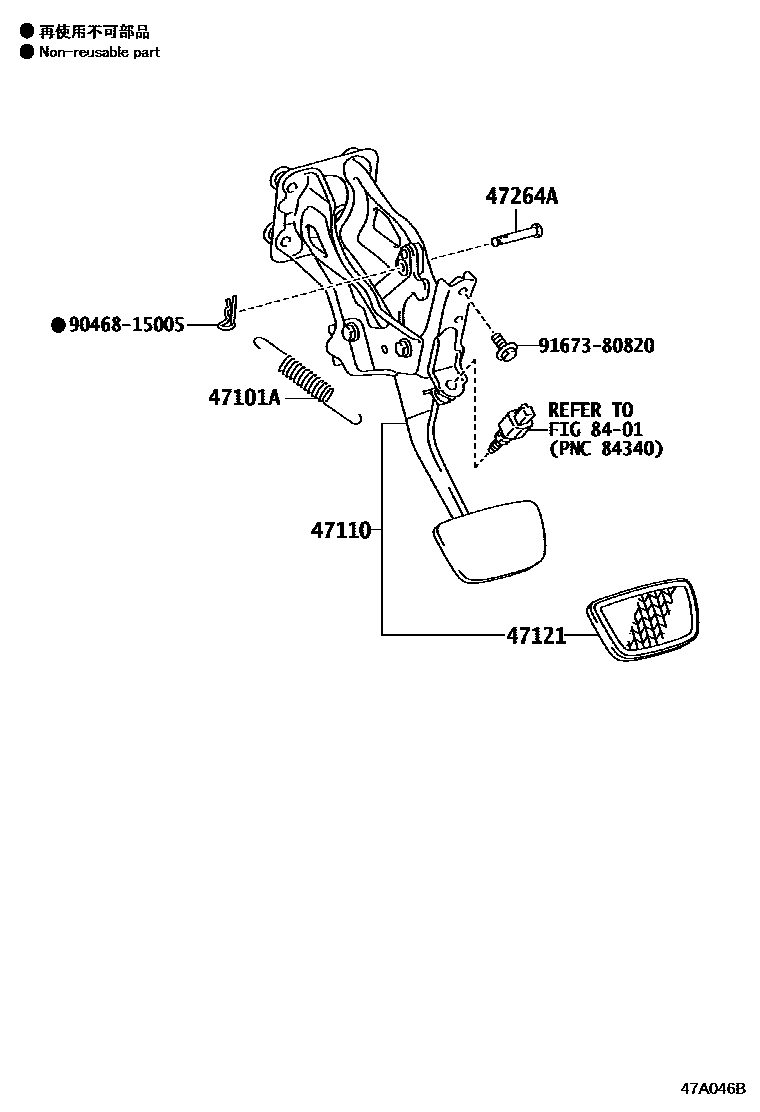

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12045iAWL10,GWL10201203-201510

main90507-13009iGRL11,15;GRL10..8FC201201-201510

47110SUPPORT ASSY, BRAKE PEDAL

main47110-30500iAWL10,GWL10..LHD201510-202007

sub47110-24310

main47110-30540iGRL15201201-201510

sub47110-24160

main47110-30580iAWL10,GWL10..LHD201203-201510

main47110-24180supersedes 47110-24100iARL10,GRL12..RHD201510-202007

F SPORT

sub47110-24300

main47110-24190supersedes 47110-30600iAWL10,GWL10..RHD201510-202007

F SPORT

sub47110-24340

main47110-24200supersedes 47110-24140iARL10,GRL12..LHD201510-202007

F SPORT

sub47110-24260

main47110-24220iAWL10,GWL10..LHD..GEN201510-202007

F SPORT&FRONT WHEEL BRAKE-18INCHES DISC

sub47110-24320

main47110-30530supersedes 47110-30520iGRL10,11..GCC201410-201510

THE CRAFTED LINE

sub47110-24150

main47110-30570supersedes 47110-30560iGRL10..RHD201201-201309

F SPORT

sub47110-24110

main47110-30590iGWL10..GCC201410-201510

THE CRAFTED LINE&FRONT WHEEL BRAKE-18INCHES DISC

sub47110-30510

main47110-30610supersedes 47110-30600iAWL10,GWL10..RHD201203-201510

F SPORT

sub47110-24130

47121PAD, BRAKE PEDAL

main47121-30080iARL10,AWL10,GRL12,GWL10201510-201901

main47121-48010iARL10,AWL10,GRL12,GWL10201902-201909

main47121-11010iGWL10..GCC201902-201909

F SPORT&FRONT WHEEL BRAKE-18INCHES DISC

main47121-24010iGWL10..GCC201909-202007

F SPORT&FRONT WHEEL BRAKE-18INCHES DISC

main47121-30090supersedes 47121-30080iGWL10..GCC201410-201510

THE CRAFTED LINE&FRONT WHEEL BRAKE-18INCHES DISC

47264APIN(FOR PUSH ROD)

main90249-06180iARL10,GRL12201510-202007

main90249-10199iAWL10,GWL10201203-201510

8401

9046815005

main90468-15005

9167380820

main91673-80820

7 parts on this diagram · 4 diagrams in section
