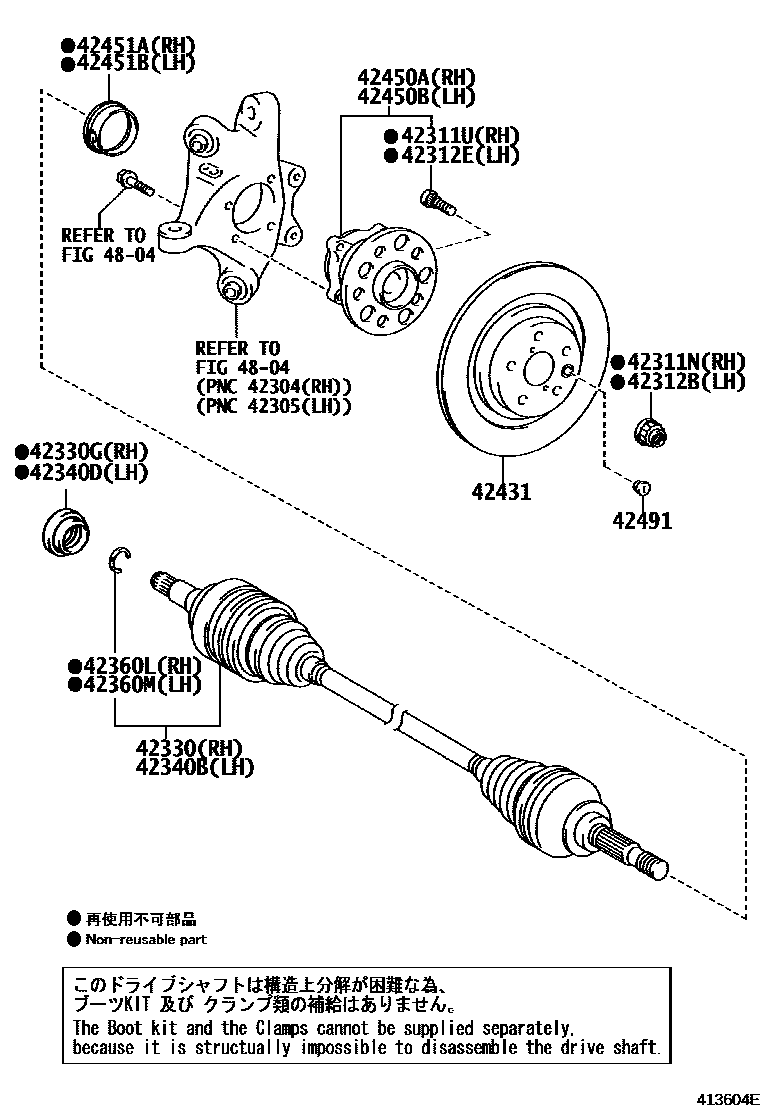

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iGRL10..8FC;AWL10,GRL11,15,GWL10201201-201510

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iAWL10,GRL1#,GWL10201505-201510

main90942-02070×5iGRL10201201-201309

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iARL10,AWL10,GRL12,GWL10201510-202007

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iARL10,AWL10,GRL12,GWL10201510-202007

main90942-02070×5iGRL10201201-201309

42330SHAFT ASSY, REAR DRIVE, RH

main42330-30170iGRL10..8FC;AWL10,GRL15,GWL10201201-201510

main42330-30180iGRL11201201-201510

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-43009iGRL11201201-201510

main90311-47018iAWL10,GRL10,15,GWL10201201-201510

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-30170iGRL10201201-201309

main42340-30180iGRL11201201-201510

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-43009iGRL11201201-201510

main90311-47019iARL10,AWL10,GRL12,GWL10201510-202007

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-34003iGRL10..8FC;AWL10,GRL11,15,GWL10201201-201510

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-34003iGRL10201201-201309

42431DISC, REAR

main42431-30310×2iAWL10,GRL1#;GWL10..ARL,GEN201201-201510

main42431-30320×2iGWL10..GCC201510-202007

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-30040iGRL10..8FC;AWL10,GRL11,15,GWL10201201-201504

main42410-30041iARL10,AWL10,GRL12,GWL10201510-202007

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-30040iGRL10201201-201309

main42410-30041iAWL10,GRL1#,GWL10201505-201510

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-30040iGRL10201201-201309

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-30040iGRL10201201-201309

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010×2iAWL10,GRL1#,GWL10201201-201510

4804

17 parts on this diagram · 1 diagram in section
