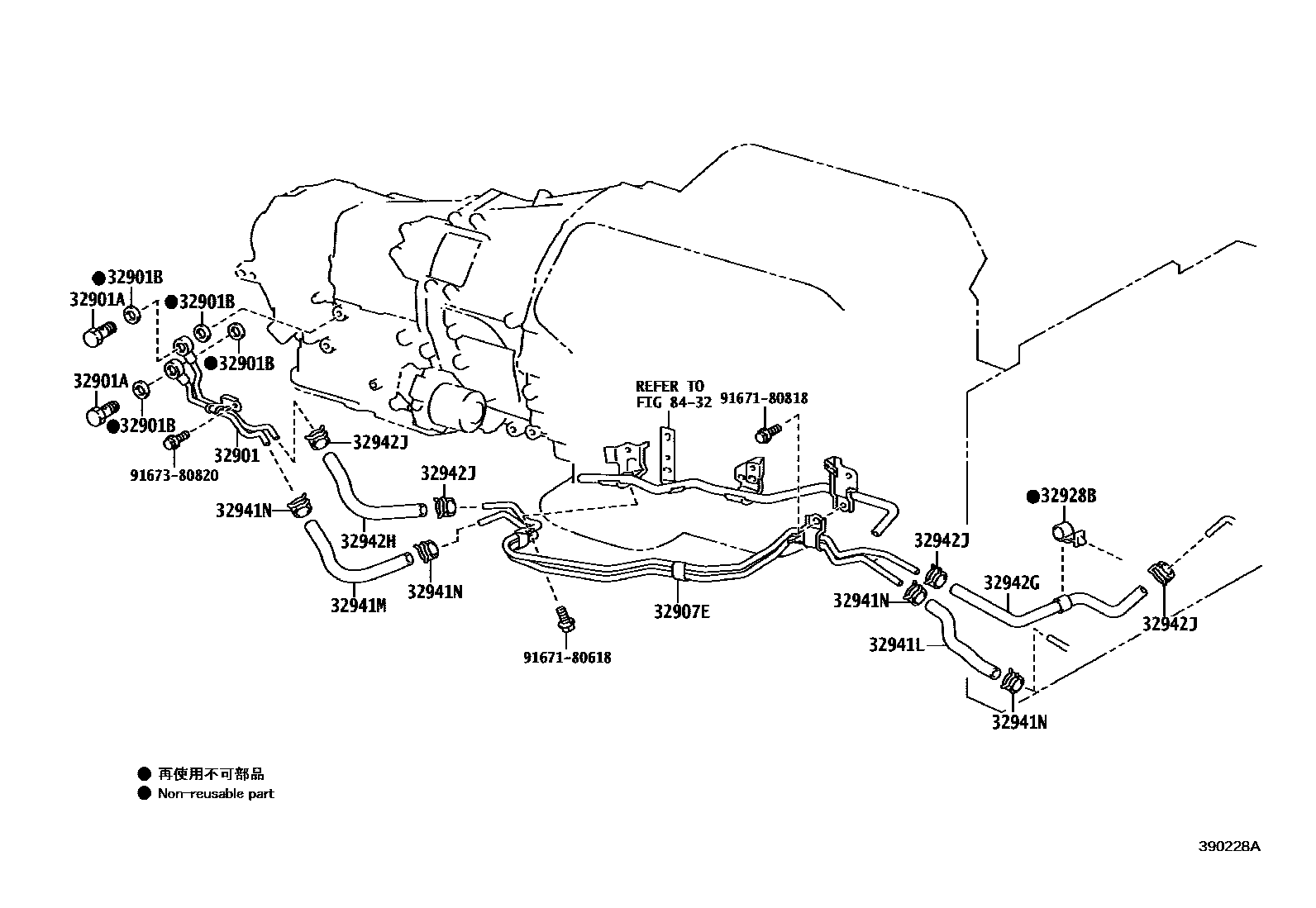

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

0001 1 0002 1

32901UNION SUB-ASSY, OIL COOLER

main32901-30020iGWL10201510-202007

32901ABOLT, UNION(FOR OIL COOLER)

main90401-14003×2iGWL10201203-201510

32901BGASKET(FOR OIL COOLER UNION)

main90430-14013×4iGWL10201203-201510

32907ETUBE SUB-ASSY, OIL COOLER W/O HOSE

main32907-30110iAWL10201510-202007

main32907-30130iGWL10201203-201510

32928BCLAMP, FLEXIBLE HOSE, NO.1

main32928-30120iAWL10,GWL10201203-201510

32941LHOSE, OIL COOLER INLET, NO.1

main32941-30320iGWL10201203-201510

main32941-30340iAWL10201510-202007

32941MHOSE, OIL COOLER INLET, NO.2

main32941-30300iGWL10201203-201510

main32941-30360iAWL10201309-201510

32941NCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×4iAWL10,GWL10201203-201510

32942GHOSE, OIL COOLER OUTLET, NO.1

main32942-30210iGWL10201510-202007

main32942-30230iAWL10201510-202007

32942HHOSE, OIL COOLER OUTLET, NO.2

main32942-30190iGWL10201510-202007

main32942-30250iAWL10201309-201510

32942JCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×4iAWL10,GWL10201203-201510

8432

9167180618

main91671-80618

9167180818

main91671-80818

9167380820

main91673-80820

15 parts on this diagram · 2 diagrams in section
