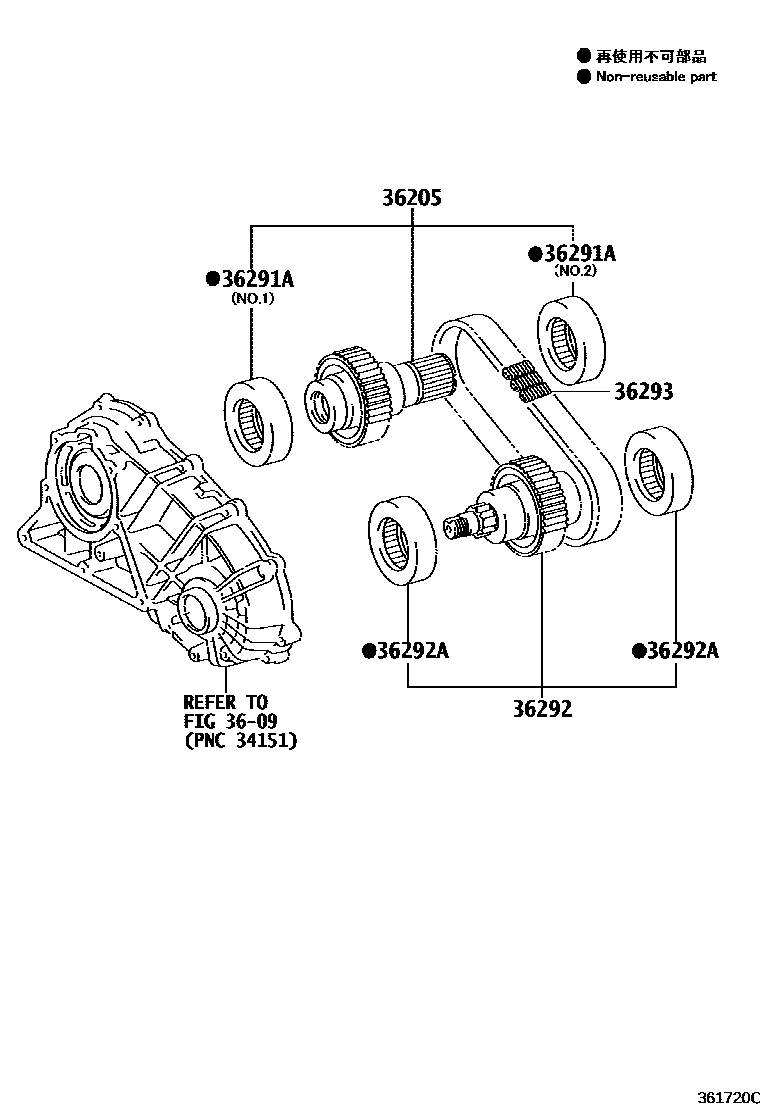

TRANSFER GEAR

3609

36205SPROCKET SUB-ASSY, TRANSFER DRIVE

main36205-30030iGRL15201201-201510

36291ABEARING (FOR TRANSFER DRIVE SPROCKET)

main90363-55002iGRL15201201-201510

NO.2:REFER ILLUST.

main90363-55004iGRL15201201-201510

NO.1:REFER ILLUST.

36292SPROCKET, TRANSFER DRIVEN

main36206-30030iGRL15201201-201510

36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)

main90363-55004×2iGRL15201201-201510

36293CHAIN, TRANSFER FRONT DRIVE

main36293-30020iGRL15201201-201510

6 parts on this diagram · 1 diagram in section
