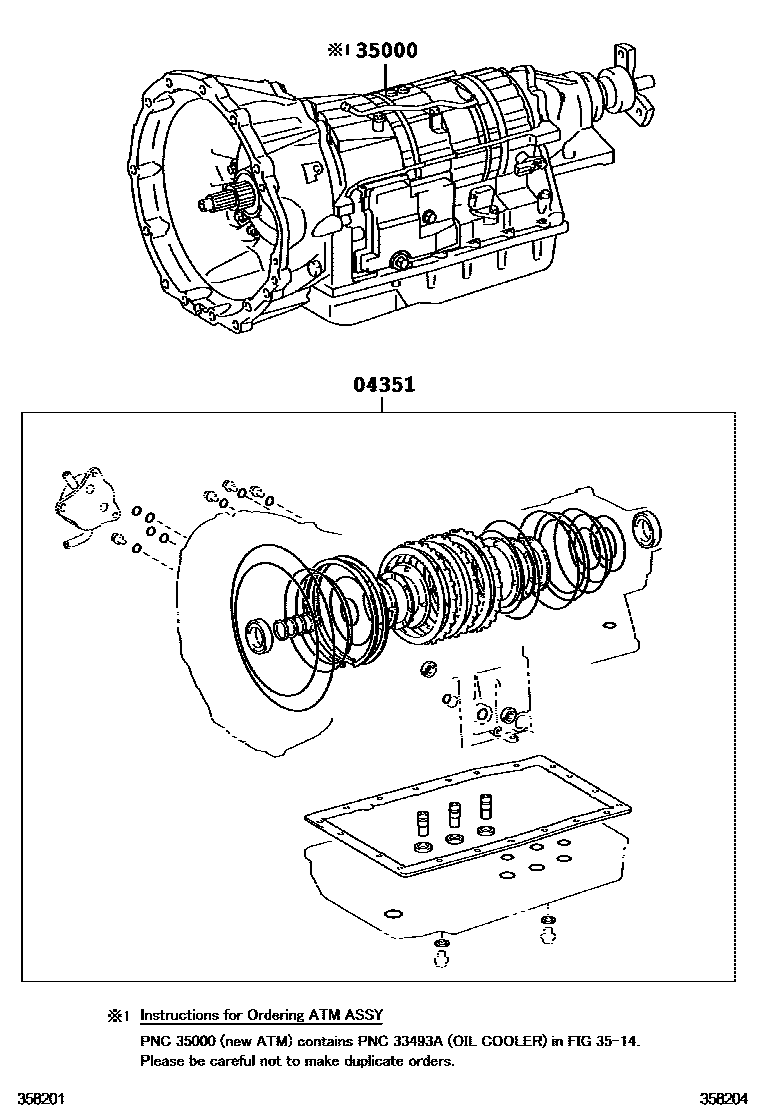

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A760E 0002 1A760H 0003 1A960E 0004 1AA81E 0005 1AA81E

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-30970iGRL11201201-201510

main04351-30980iGRL15201201-201510

main04351-30990iGRL10201201-201309

main04351-30A00iGRL10201309-202007

main04351-53171iARL10201510-202007

35000TRANSMISSION ASSY, AUTOMATIC

main35000-30C40iGRL10..GCC201201-201309

A760E

main35000-30C40iGRL10..GCC201201-201309

A760E,TOWING PACKAGE-1600KG

main35000-30C50iGRL11201201-201510

A960E

main35000-30D80iGRL10..ARL,GEN201201-201309

A760E

main35000-30E00iGRL10..ARL,GEN201309-201510

AA81E

main35000-30F70iGRL10..GCC201309-201510

AA81E,TOWING PACKAGE-1600KG

main35000-30F70iGRL10..GCC201309-201510

AA81E

main35000-30G50iGRL12..ARL,GEN201510-202007

AA81E

main35000-30G60iGRL12..GCC201510-202007

AA81E

main35000-30G60iGRL12..GCC201510-202007

AA81E,ARGENTINA SPEC

main35000-30G60iGRL12..GCC201510-202007

AA81E,TOWING PACKAGE-1600KG

main35000-53280iARL10201510-202007

AA81E

2 parts on this diagram · 5 diagrams in section
