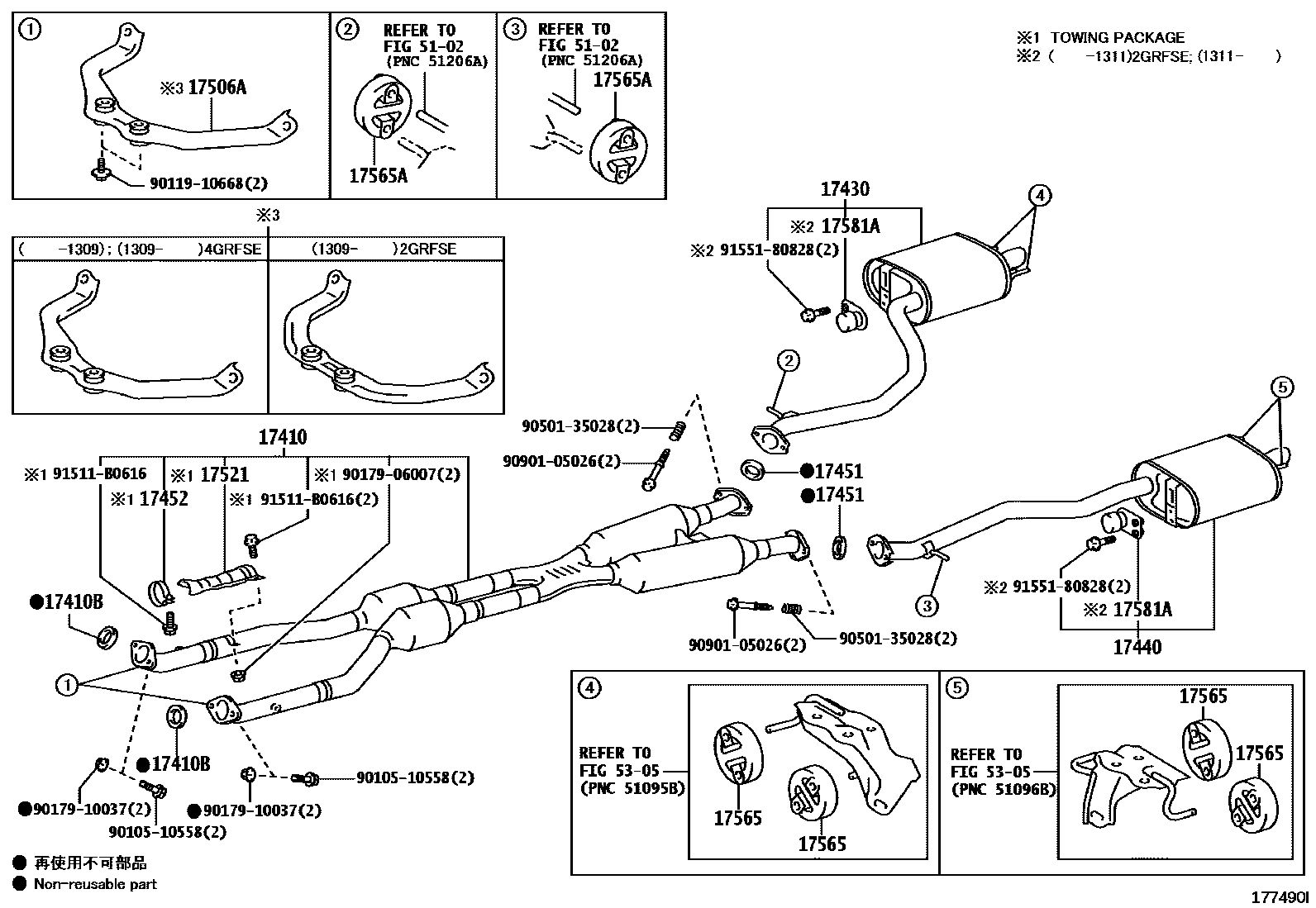

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-31D00i2GRFSE..GRL10201201-201309

main17410-31D10i2GRFSE..GRL10201309-201510

main17410-31D30supersedes 17410-31D20i2GRFSE..GRL15201309-201510

*114=TOYOTA/RA3/Y

main17410-31D40i4GRFSE..GRL11201201-201309

*114=TOYOTA/RA4/Y

main17410-31D50i4GRFSE..GRL11201309-201510

*114=TOYOTA/RA4/Y

main17410-31D70i2GRFXE..GWL10201203-201309

*114=TOYOTA/TF3/Y

main17410-31D80i2GRFXE..GWL10201309-201510

*114=TOYOTA/TF3/Y

main17410-31E90i2GRFKS..GRL12201510-202007

main17410-36390i2ARFSE..AWL10201309-201510

*114=TOYOTA/UE6/Y

main17410-36530i8ARFTS..ARL10201510-202007

main17410-31D90i2GRFSE..GRL10..RHD201201-201510

TOWING PACKAGE-1600KG

main17410-31E10i4GRFSE..GRL11..RHD201201-201510

*114=TOYOTA/RA4/Y,TOWING PACKAGE-1600KG

main17410-31E30i2GRFXE..GWL10..ARL201510-202007

*114=TOYOTA/TF3/Y,TOWING PACKAGE-1500KG

main17410-31F10i2GRFKS..GRL12..RHD201510-202007

TOWING PACKAGE-1600KG

17410BGASKET, EXHAUST PIPE

main90917-06078i2GR#..GRL12,GWL10201510-202007

main90917-06090i8ARFTS..ARL10201510-202007

17430PIPE ASSY, EXHAUST, TAIL

main17430-31B20i4GRFSE..GRL11201201-201309

main17430-31B40i4GRFSE..GRL11201309-201311

main17430-31B50i2GRFXE..GWL10201510-202007

main17430-31B60i2GRFXE..GWL10201203-201309

main17430-31C80i2GRFSE..GRL15;2GRFSE..GRL10..8FC201201-201510

main17430-36290i2ARFSE..AWL10201309-201510

main17430-36461i8ARFTS..ARL10201510-202007

17440PIPE, EXHAUST TAIL, LH

main17440-31080i4GRFSE..GRL11201201-201309

main17440-31100i4GRFSE..GRL11201309-201311

main17440-31110i2GRFXE..GWL10201309-201510

main17440-31120i2GRFXE..GWL10201203-201309

main17440-31160i2GRFSE..GRL15;2GRFSE..GRL10..8FC201201-201510

main17440-36040i2ARFSE..AWL10201510-202007

main17440-36101i8ARFTS..ARL10201510-202007

17451GASKET, EXHAUST PIPE

main17451-28032×2i2GRFSE..GRL10201201-201309

17452CLAMP, EXHAUST PIPE

main90461-12447i2GRFKS..GRL12..RHD201510-202007

TOWING PACKAGE-1600KG

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-31030i2GRFSE..GRL10201201-201309

main17506-31040i2GRFSE..GRL15201201-201310

main17506-31041i2GRFSE..GRL15201311-201510

main17506-31101i2GRFXE..GWL10201510-202007

main17506-31110i2GRFSE..GRL10201309-201510

17521PROTECTOR, EXHAUST PIPE, FRONT NO.1

main17521-31050i2GRFSE..GRL10..RHD201201-201309

TOWING PACKAGE-1600KG

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040×4i2ARFSE,2GR#,4GRFSE..AWL10,GRL1#,GWL10201201-201510

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010×2i2GRFSE..GRL10201201-201309

17581ADAMPER, EXHAUST PIPE

main17581-46120×2i2GRFSE..GRL10201201-201309

5102

5305

9010510558

main90105-10558

9011910668

main90119-10668

9017906007

main90179-06007

9017910037

main90179-10037

9050135028

main90501-35028

9090105026

main90901-05026

91511B0616

main91511-B0616

9155180828

main91551-80828

21 parts on this diagram · 6 diagrams in section
