V-BELT

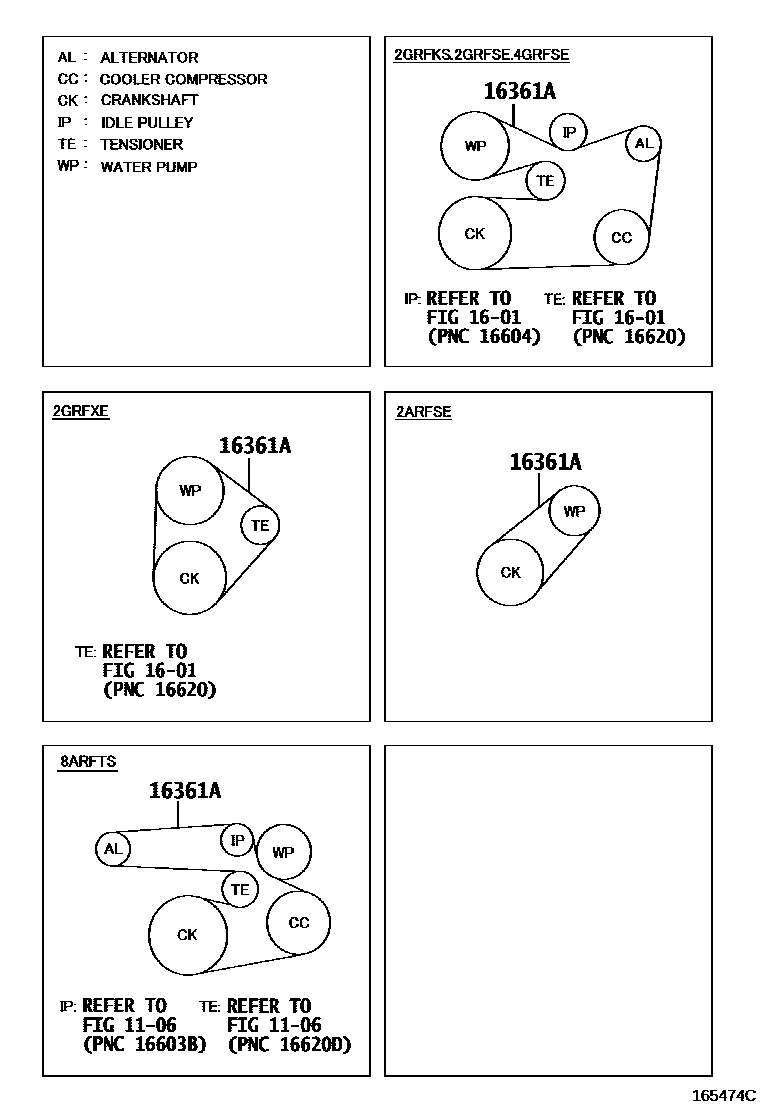

Parts diagram

1106

1601

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02703i201203-201510

main90916-02714i201309-201510

main90916-02728i201510-202007

main90916-02733i201510-202007

main90916-02742i201512-202007

main99367-C1550i201201-201510

3 parts on this diagram · 1 diagram in section
