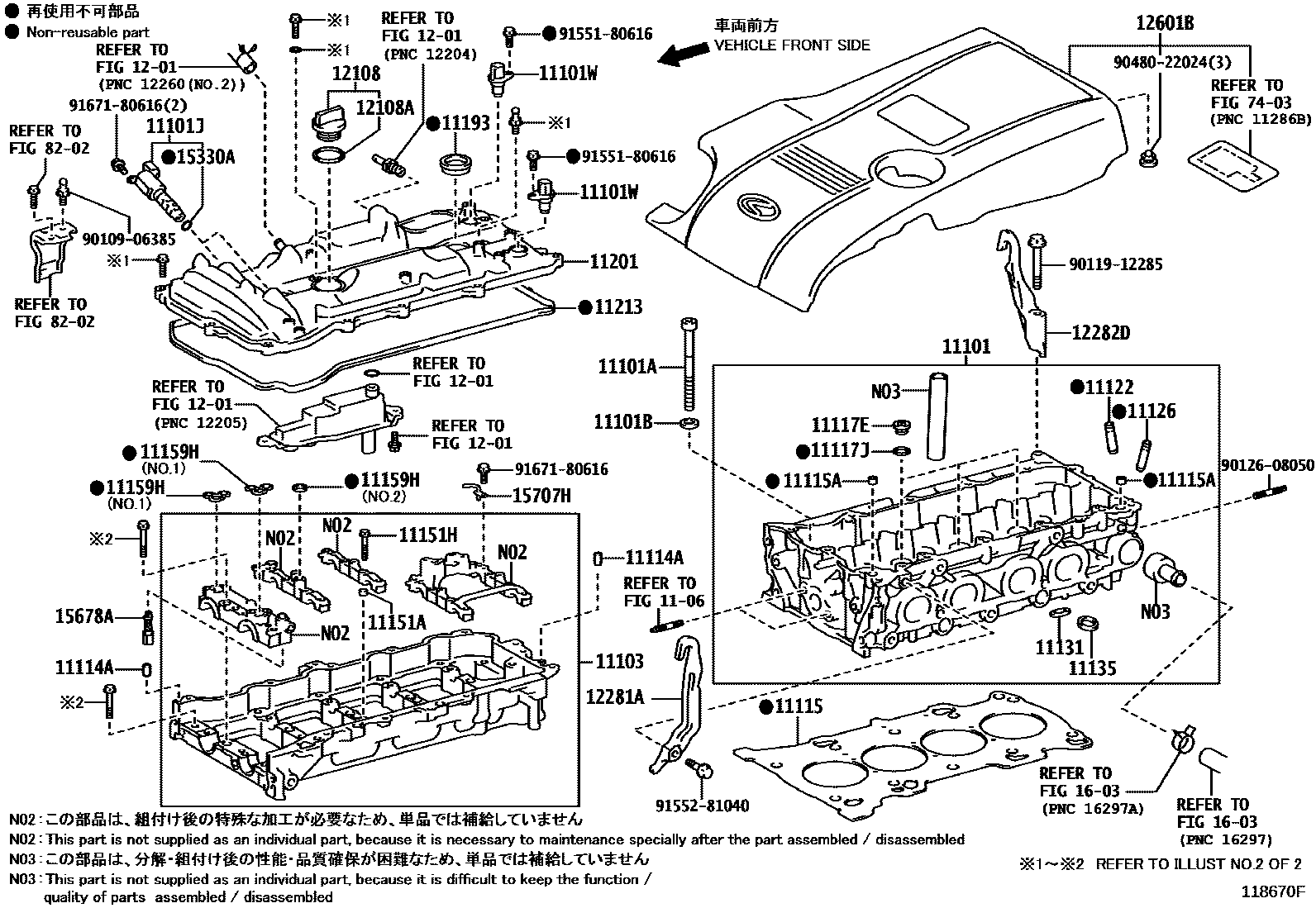

CYLINDER HEAD
1106
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11101WSENSOR, CRANK POSITION, NO.1
11103HOUSING SUB-ASSY, CAMSHAFT
11114APIN, STRAIGHT
L=13.8,OD=5.0
L=14,OD=6
L=34,OD=8
11115GASKET, CYLINDER HEAD
11115APIN, RING
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
NO.2
11122BUSH, INTAKE VALVE GUIDE
STD
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
STD
STD
O/S 0.05
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
STD
STD
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11
L=12.5,OD=8
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
11193GASKET, SPARK PLUG TUBE
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12282DHANGER, ENGINE, NO.2
12601BCOVER SUB-ASSY, ENGINE, NO.1
NO.1
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
15707HPIPE SUB-ASSY, OIL
1603
7403
8202
9010906385
main90109-06385
9011912285
main90119-12285
9012608050
main90126-08050
9048022024
main90480-22024
9155180616
main91551-80616
9155281040
main91552-81040
9167180616
main91671-80616
41 parts on this diagram · 14 diagrams in section
