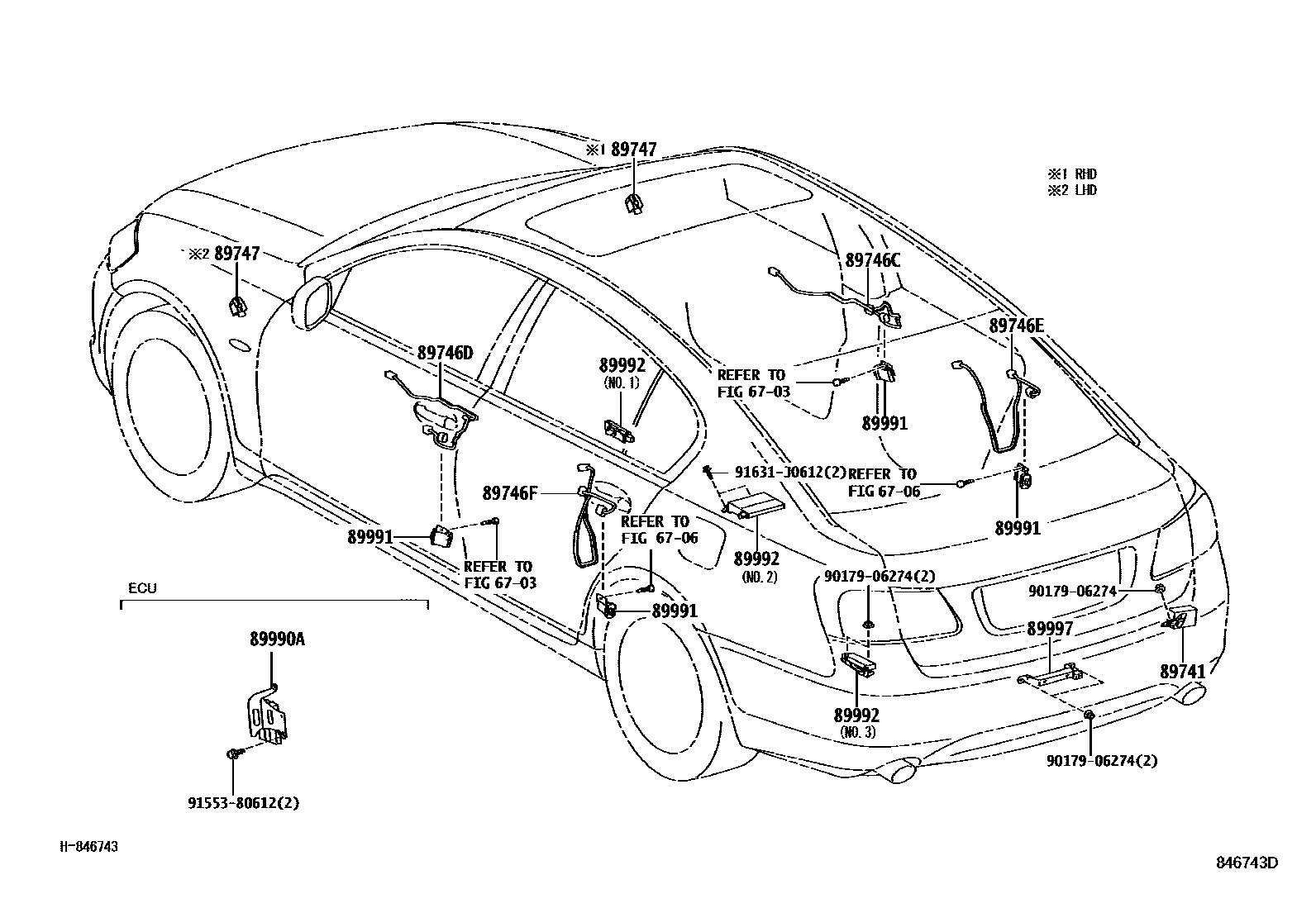

WIRELESS DOOR LOCK
6703FRONT DOOR LOCK & HANDLE
6706REAR DOOR LOCK & HANDLE
89741RECEIVER, DOOR CONTROL
INDONESIA SPEC; SINGAPORE SPEC; THAILAND SPEC
AUSTRALIA SPEC; MALAYSIA SPEC; NEW ZEALAND SPEC
AUSTRALIA SPEC; MALAYSIA SPEC; NEW ZEALAND SPEC
BRUNEI SPEC; BRUNEI SPEC&WITH(CARD KEY); INDONESIA SPEC; INDONESIA SPEC&WITH(CARD KEY); MALAYSIA SPEC; MALAYSIA SPEC&WITH(CARD KEY); SINGAPORE SPEC; SINGAPORE SPEC&WITH(CARD KEY); THAILAND SPEC; THAILAND SPEC&WITH(CARD KEY)
ARGENTINA SPEC; ARGENTINA SPEC&WITH(CARD KEY)
89746CHARNESS, ELECTRICAL KEY WIRE, NO.1
89746DHARNESS, ELECTRICAL KEY WIRE, NO.2
89746EHARNESS, ELECTRICAL KEY WIRE, NO.3
89746FHARNESS, ELECTRICAL KEY WIRE, NO.4
89747BUZZER, WIRELESS DOOR LOCK
89990ACOMPUTER ASSY, SMART KEY
main89990-30160supersedes 89990-30200iGRS19#,URS190..EUR,GEN; GRS190,URS190..GCC; GRS190..GCC; URS190..GCC200909-201006
ARGENTINA SPEC; CHINA SPEC; EGYPT SPEC; MOROCCO SPEC; PHILIPPINE SPEC
WIRELESS DOOR LOCK-WITH(PANIC) FOR JORDAN,433MHZ
89991OSCILLATOR, DOOR ELECTRICAL KEY
FRONT RH,REAR LH
FRONT LH,REAR RH
89992OSCILLATOR, INDOOR ELECTRICAL KEY
NO.2
NO.1
NO.2
NO.3
89997ANTENNA, ELECTRICAL KEY
9017906274
main90179-06274
9155380612
main91553-80612
91631J0612
main91631-J0612
15 parts on this diagram · 1 diagram in section
