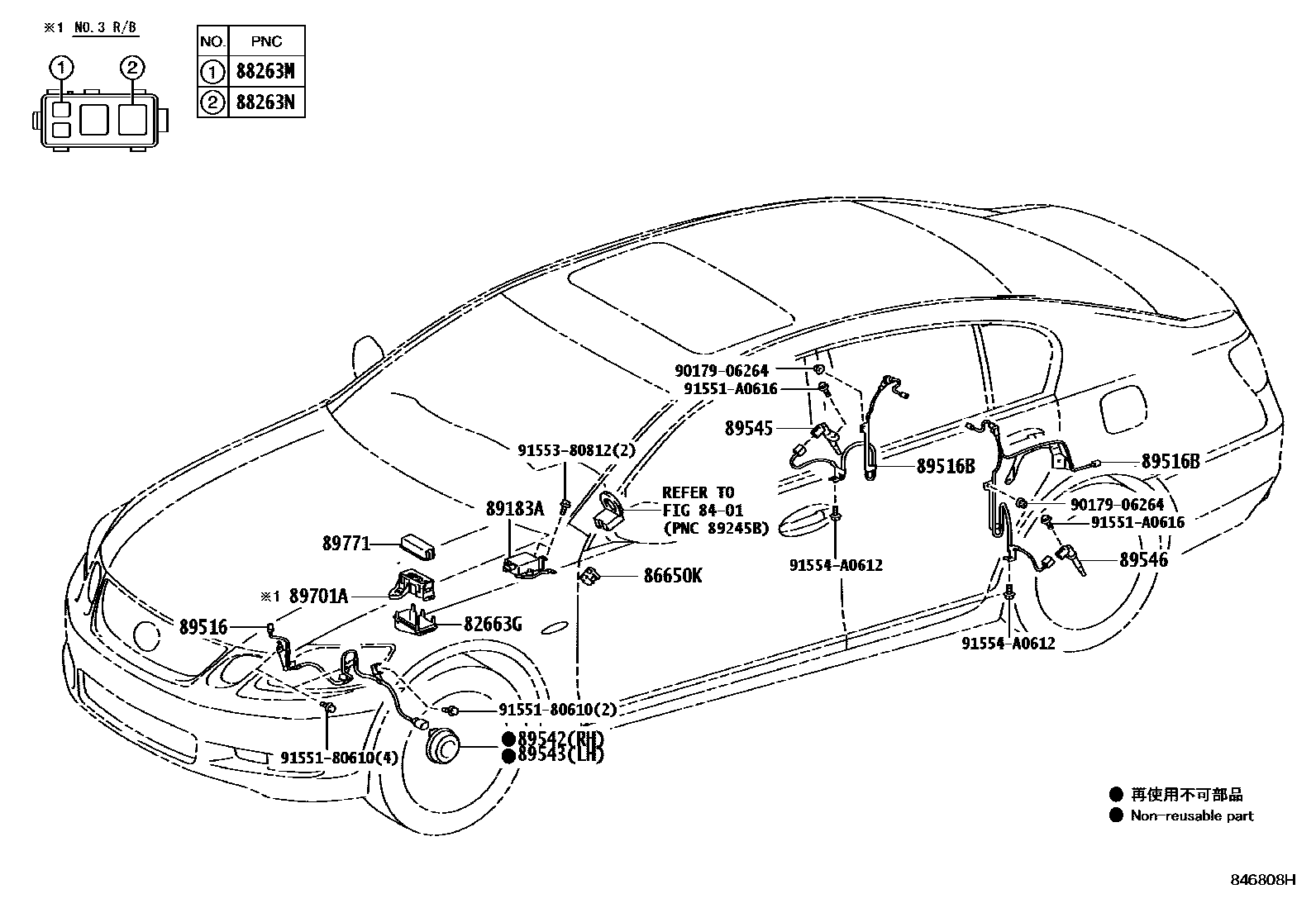

ABS & VSC

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

82663GCOVER, RELAY BLOCK, LOWER

main82663-30220iGRS190,UZS190..RHD200501-200709

main82663-30240iGRS190,UZS190..LHD200501-200709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86650KBUZZER ASSY, SKID CONTROL

main86652-48010iGRS190,UZS190200501-200709

main86652-50010iGRS19#,URS190,UZS190200709-201112

88263MRELAY, ABS SOLENOID

main88263-32070×2iGRS190; UZS190200501-200709

88263NRELAY, ABS MOTOR

main88263-21010×2iGRS190; UZS190200501-200709

89183ASENSOR, YAWRATE

main89180-30070iGRS190,UZS190200501-200709

main89180-30100iGRS19#,URS190200909-201112

89516WIRE, SKID CONTROL SENSOR

main89516-30020iGRS190,UZS190200501-200709

RH

main89516-30030iGRS190,UZS190200501-200709

LH

main89516-30060iURS190200709

LH

main89516-30100supersedes 89516-30050iGRS196200907

RUSSIA SPEC,RH; UKRAINE SPEC,RH

main89516-30110supersedes 89516-30050iGRS196200907

RUSSIA SPEC,LH; UKRAINE SPEC,LH

89516BWIRE, SKID CONTROL SENSOR

main89516-22020iGRS190,UZS190200506-200709

RH

main89516-22040iGRS190,UZS190200506-200709

LH

main89516-30080iGRS190,UZS190200501-200505

RH

main89516-30130iGRS190,UZS190200501-200505

LH

89542SENSOR, SPEED, FRONT RH

main89542-30260iGRS190,UZS190200501-200709

main89542-30270iGRS196200907-201112

89543SENSOR, SPEED, FRONT LH

main89543-30260iGRS190,UZS190200501-200709

main89543-30270iGRS196200907-201112

89545SENSOR, SPEED, REAR RH

main89545-30070iGRS190,UZS190200501-200709

89546SENSOR, SPEED, REAR LH

main89546-30070iGRS190,UZS190200501-200709

89701ABLOCK SUB-ASSY, ABS RELAY

main82743-30020iGRS190..RHD200501-200709

main82743-30030iUZS190..RHD200501-200709

main82743-30040iGRS190..LHD200501-200709

main82743-30050iUZS190..LHD200501-200709

89771COVER, ABS RELAY BLOCK, UPPER

main82662-30560iGRS190,UZS190200501-200709

9017906264

main90179-06264

9155180610

main91551-80610

91551A0616

main91551-A0616

9155380812

main91553-80812

91554A0612

main91554-A0612

19 parts on this diagram · 10 diagrams in section
