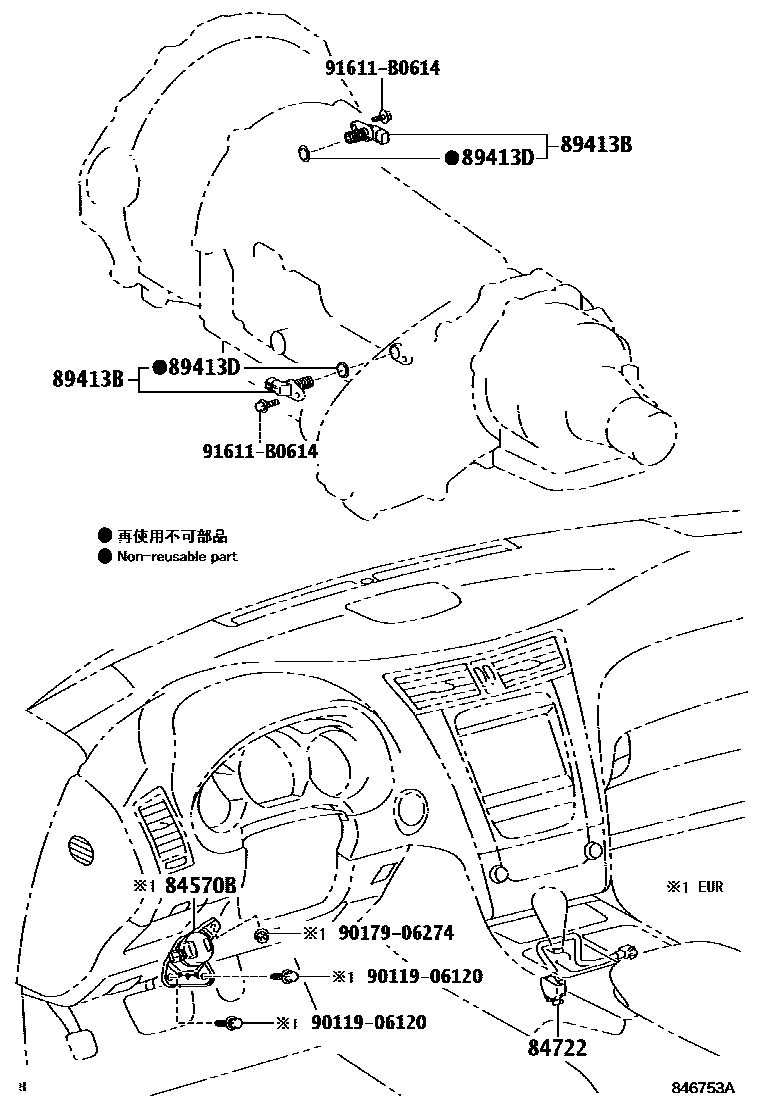

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1

84570BSWITCH ASSY, KICK DOWN

main84570-30090iGRS190,UZS190..RHD..EUR200501-200709

main84570-30100iGRS190,UZS190..LHD..EUR200501-200709

84722SWITCH, TRANSMISSION CONTROL

main84722-20230iGRS190,URS190..RHD200709-201112

main84722-20240iGRS190,UZS190..LHD200501-200709

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010×2iGRS190,UZS190200501-200709

main89413-50010iURS190200709-201112

NO.1

main89413-50020×2iURS190200709-201112

NO.2

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008×2iGRS190,UZS190200501-200709

9011906120

main90119-06120

9017906274

main90179-06274

91611B0614

main91611-B0614

7 parts on this diagram · 4 diagrams in section
