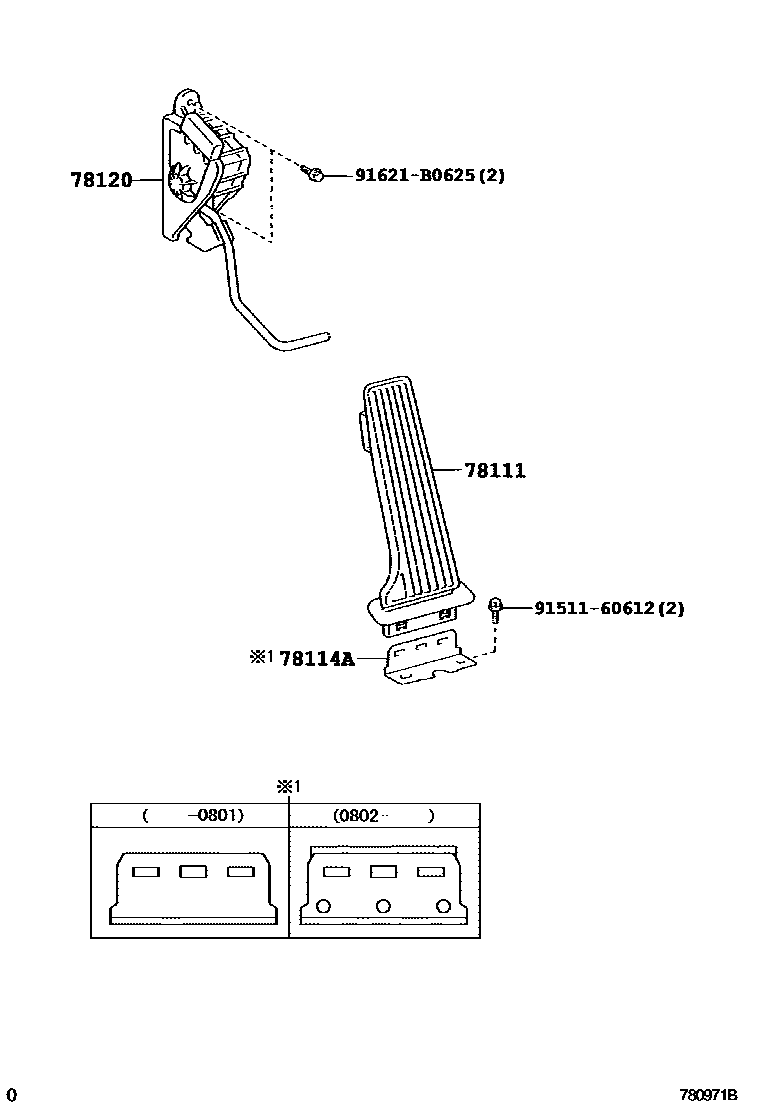

ACCELERATOR LINK

0001 1 0002 1

78111PEDAL, ACCELERATOR

main78111-20060iGRS196200907

main78111-30130iGRS190,UZS190200501-200709

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78108-30130iUZS190200802-200809

main78114-30100iGRS190,UZS190200501-200801

78120ROD, ACCELERATOR LINK

main78120-30A00iGRS190,UZS190..RHD200501-200506

sub78120-30A01

main78120-30A10iGRS190,UZS190..LHD200501-200506

sub78120-30A11

main78120-30A30iGRS196200907

sub78120-30A31

main78120-30A40iGRS190,UZS190..LHD200507-200709

sub78120-30A41

main78120-30A50iGRS190,UZS190..RHD200507-200709

sub78120-30A51

9151160612

main91511-60612

91621B0625

main91621-B0625

5 parts on this diagram · 2 diagrams in section
