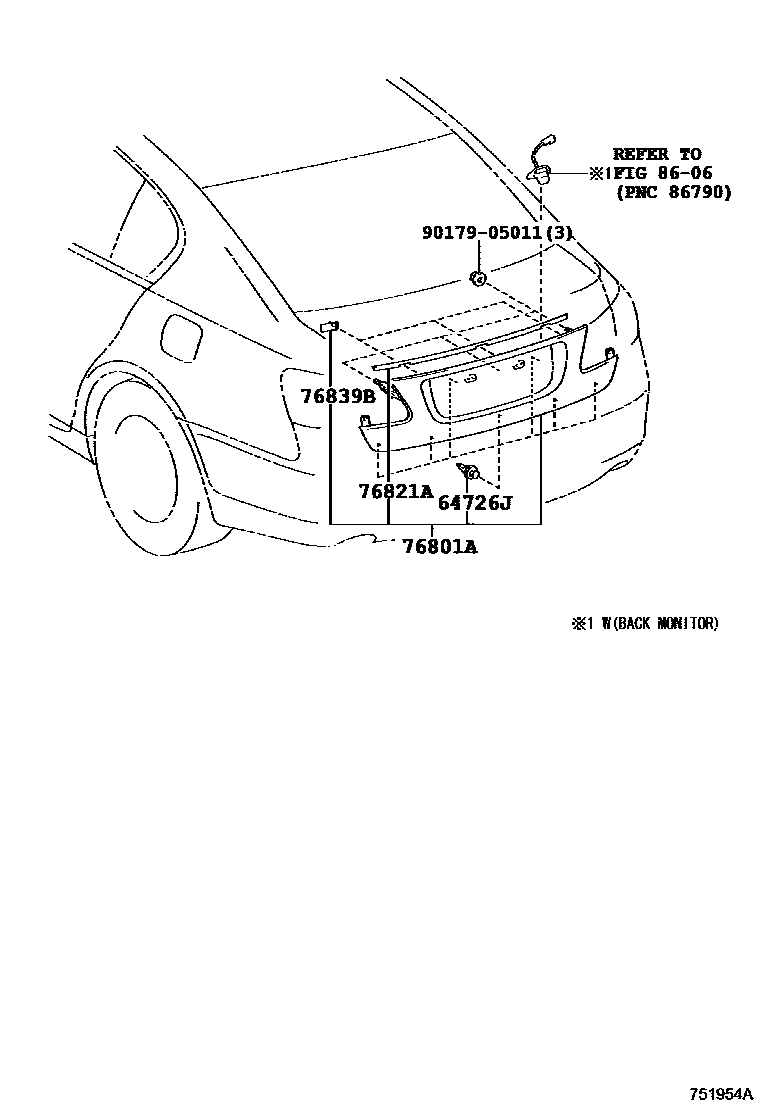

REAR MOULDING
64726JCLIP, LUGGAGE TRIM, REAR
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
main76801-30150-A2supersedes 76801-30140-A2iGRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR; UZS190;GRS190,URS190..GCC;GRS190,URS190..RHD..EUR200709-201006
WHITE PEARL CS.,077; WITH(BACK GUIDE MONITOR),WHITE PEARL CS.,077; WITH(BACK MONITOR),WHITE PEARL CS.,077
main76801-30150-B1supersedes 76801-30141-B1iGRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR; UZS190;GRS190,URS190..GCC;GRS190,URS190..RHD..EUR200709-201006
PREMIUM SILVER,1F2; WITH(BACK GUIDE MONITOR),PREMIUM SILVER,1F2; WITH(BACK MONITOR),PREMIUM SILVER,1F2
main76801-30150-B2supersedes 76801-30140-B2iGRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR; UZS190;GRS190,URS190..GCC;GRS190,URS190..RHD..EUR200709-201006
DK.GRAY MC.,1G0; WITH(BACK GUIDE MONITOR),DK.GRAY MC.,1G0; WITH(BACK MONITOR),DK.GRAY MC.,1G0
main76801-30150-B3supersedes 76801-30141-B3iGRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR; UZS190;GRS190,URS190..GCC;GRS190,URS190..RHD..EUR200709-201006
FROSTY PEARL MC.,1G5; WITH(BACK GUIDE MONITOR),FROSTY PEARL MC.,1G5; WITH(BACK MONITOR),FROSTY PEARL MC.,1G5
main76801-30150-C1supersedes 76801-30141-C1iGRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR; UZS190;GRS190,URS190..GCC;GRS190,URS190..RHD..EUR200709-201006
BLACK,212; WITH(BACK GUIDE MONITOR),BLACK,212; WITH(BACK MONITOR),BLACK,212
main76801-30150-C2supersedes 76801-30140-C2iGRS190,URS190..LHD..EUR; GRS190..GEN;GRS190,URS190..LHD..EUR; UZS190;GRS190..GCC;GRS190,URS190..RHD..EUR200709-201006
BLACK OPAL MC.,214; WITH(BACK GUIDE MONITOR),BLACK OPAL MC.,214; WITH(BACK MONITOR),BLACK OPAL MC.,214
main76801-30150-D0supersedes 76801-30141-D0iGRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR; UZS190;GRS190,URS190..GCC;GRS190,URS190..RHD..EUR200709-201006
RED MC.CS.,3R1; WITH(BACK GUIDE MONITOR),RED MC.CS.,3R1; WITH(BACK MONITOR),RED MC.CS.,3R1
main76801-30150-E1supersedes 76801-30140-E1iGRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR; UZS190;GRS190,URS190..GCC;GRS190,URS190..RHD..EUR200709-200909
BEIGE ME.,4T1; WITH(BACK GUIDE MONITOR),BEIGE ME.,4T1; WITH(BACK MONITOR),BEIGE ME.,4T1
main76801-30150-E2supersedes 76801-30140-E2iGRS190,URS190..GCC;GRS190,URS190..RHD..EUR; GRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR200909-201006
SLEEK ECRU ME.,4U7; WITH(BACK GUIDE MONITOR),SLEEK ECRU ME.,4U7; WITH(BACK MONITOR),SLEEK ECRU ME.,4U7
main76801-30150-G1supersedes 76801-30140-G1iGRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR; UZS190;GRS190,URS190..GCC;GRS190,URS190..RHD..EUR200709-200909
JADE GREEN ME.,6V0; WITH(BACK GUIDE MONITOR),JADE GREEN ME.,6V0; WITH(BACK MONITOR),JADE GREEN ME.,6V0
main76801-30150-G2supersedes 76801-30140-G2iGRS190,URS190..GCC;GRS190,URS190..RHD..EUR; GRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR200909-201006
DEEP PERIDOT MC.,6V6; WITH(BACK GUIDE MONITOR),DEEP PERIDOT MC.,6V6; WITH(BACK MONITOR),DEEP PERIDOT MC.,6V6
main76801-30150-J1supersedes 76801-30140-J1iGRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR; UZS190;GRS190,URS190..GCC;GRS190,URS190..RHD..EUR200709-201006
PREMIUM LT.BLUE.,8T9; WITH(BACK GUIDE MONITOR),PREMIUM LT.BLUE.,8T9; WITH(BACK MONITOR),PREMIUM LT.BLUE.,8T9
main76801-30150-J2supersedes 76801-30140-J2iGRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR; UZS190;GRS190,URS190..GCC;GRS190,URS190..RHD..EUR200709-200909
DK.BLUE MC. CC.,8U0; WITH(BACK GUIDE MONITOR),DK.BLUE MC. CC.,8U0; WITH(BACK MONITOR),DK.BLUE MC. CC.,8U0
main76801-30150-J3supersedes 76801-30140-J3iGRS190,URS190..GCC;GRS190,URS190..RHD..EUR; GRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR200909-201006
LAPIS LAZULI MC.,8V3; WITH(BACK GUIDE MONITOR),LAPIS LAZULI MC.,8V3; WITH(BACK MONITOR),LAPIS LAZULI MC.,8V3
main76801-30151-A2iGRS190,URS190..GCC;GRS190,URS190..RHD..EUR; GRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR201006-201112
WHITE PEARL CS.,077; WITH(BACK GUIDE MONITOR),WHITE PEARL CS.,077; WITH(BACK MONITOR),WHITE PEARL CS.,077
main76801-30151-B1iGRS190,URS190..GCC;GRS190,URS190..RHD..EUR; GRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR201006-201112
PREMIUM SILVER,1F2; WITH(BACK GUIDE MONITOR),PREMIUM SILVER,1F2; WITH(BACK MONITOR),PREMIUM SILVER,1F2
main76801-30151-B2iGRS190,URS190..GCC;GRS190,URS190..RHD..EUR; GRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR201006-201112
DK.GRAY MC.,1G0; WITH(BACK GUIDE MONITOR),DK.GRAY MC.,1G0; WITH(BACK MONITOR),DK.GRAY MC.,1G0
main76801-30151-B3iGRS190,URS190..GCC;GRS190,URS190..RHD..EUR; GRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR201006-201112
FROSTY PEARL MC.,1G5; WITH(BACK GUIDE MONITOR),FROSTY PEARL MC.,1G5; WITH(BACK MONITOR),FROSTY PEARL MC.,1G5
main76801-30151-C1iGRS190,URS190..GCC;GRS190,URS190..RHD..EUR; GRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR201006-201112
BLACK,212; WITH(BACK GUIDE MONITOR),BLACK,212; WITH(BACK MONITOR),BLACK,212
main76801-30151-C3supersedes 76801-30141-C3iGRS19#,URS190..LHD..EUR; GRS190,URS190..GCC;GRS190,URS190..RHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR201007-201112
STARLIGHT BLACK GF.,217; WITH(BACK GUIDE MONITOR),STARLIGHT BLACK GF.,217; WITH(BACK MONITOR),STARLIGHT BLACK GF.,217
main76801-30151-D0iGRS190,URS190..GCC;GRS190,URS190..RHD..EUR; GRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR201006-201112
RED MC.CS.,3R1; WITH(BACK GUIDE MONITOR),RED MC.CS.,3R1; WITH(BACK MONITOR),RED MC.CS.,3R1
main76801-30151-E2supersedes 76801-30141-E2iGRS190,URS190..GCC;GRS190,URS190..RHD..EUR; GRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR201006-201112
SLEEK ECRU ME.,4U7; WITH(BACK GUIDE MONITOR),SLEEK ECRU ME.,4U7; WITH(BACK MONITOR),SLEEK ECRU ME.,4U7
main76801-30151-G2supersedes 76801-30141-G2iGRS190,URS190..GCC;GRS190,URS190..RHD..EUR; GRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR201006-201112
DEEP PERIDOT MC.,6V6; WITH(BACK GUIDE MONITOR),DEEP PERIDOT MC.,6V6; WITH(BACK MONITOR),DEEP PERIDOT MC.,6V6
main76801-30151-J3supersedes 76801-30141-J3iGRS190,URS190..GCC;GRS190,URS190..RHD..EUR; GRS190,URS190..LHD..EUR; GRS190..GEN;GRS19#,URS190..LHD..EUR201006-201112
LAPIS LAZULI MC.,8V3; WITH(BACK GUIDE MONITOR),LAPIS LAZULI MC.,8V3; WITH(BACK MONITOR),LAPIS LAZULI MC.,8V3
WITH(BACK GUIDE MONITOR),WHITE PEARL CS.,062; WITH(BACK MONITOR),WHITE PEARL CS.,062
WITH(BACK GUIDE MONITOR),BLUISH PEARL CS.,074; WITH(BACK MONITOR),BLUISH PEARL CS.,074
WITH(BACK GUIDE MONITOR),DK.GRAY MC.,1E0; WITH(BACK MONITOR),DK.GRAY MC.,1E0
WITH(BACK GUIDE MONITOR),BLACK,202; WITH(BACK MONITOR),BLACK,202
WITH(BACK GUIDE MONITOR),PREMIUM BEIGE,4S7; WITH(BACK MONITOR),PREMIUM BEIGE,4S7
WITH(BACK GUIDE MONITOR),OLIVE M.M.,6T7; WITH(BACK MONITOR),OLIVE M.M.,6T7
WITH(BACK GUIDE MONITOR),DARK BLUE MC.,8P8; WITH(BACK MONITOR),DARK BLUE MC.,8P8
WITH(BACK GUIDE MONITOR),DK.PURPLE M.M.,9AB; WITH(BACK MONITOR),DK.PURPLE M.M.,9AB
76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76839BCOVER, BACK DOOR GARNISH
8606CAMERA & REAR MONITOR DISPLAY
9017905011
main90179-05011
6 parts on this diagram · 1 diagram in section
