E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

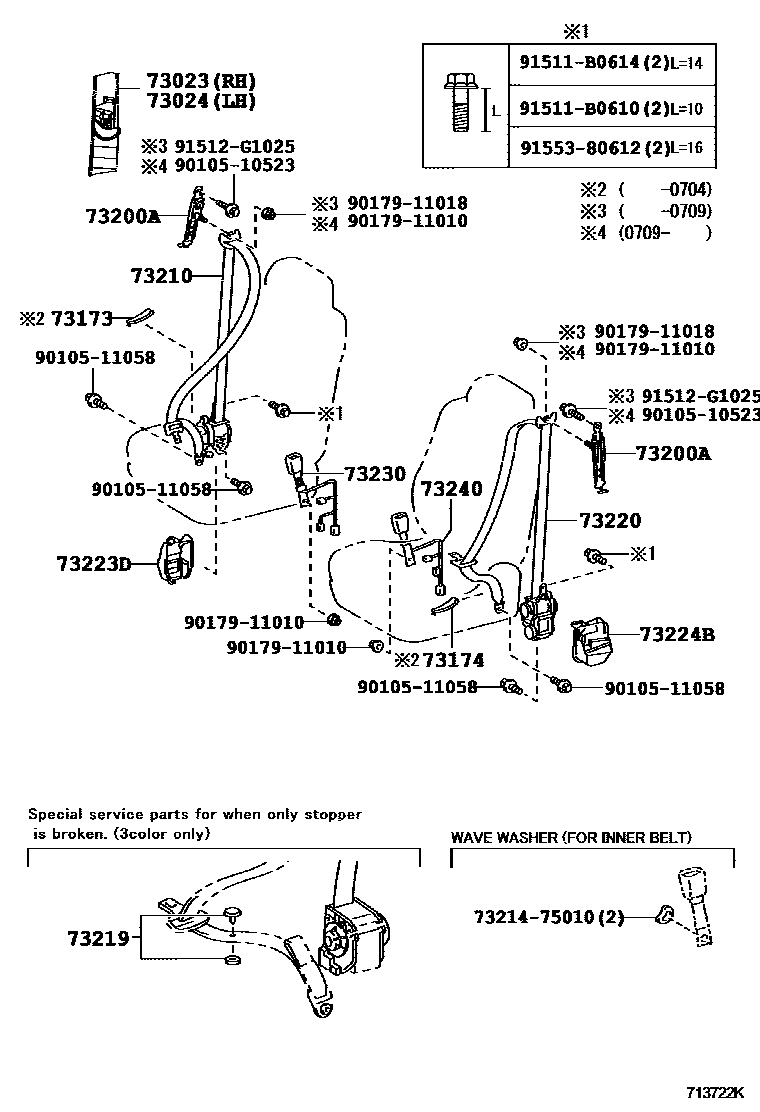

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-30010-A2i200709-200809
IVORY,TRIM0#
main73023-30010-B2i200709-200809
LT.GRAY,TRIM1#,2#
main73023-30010-B5i200501-200709
GRAY,TRIM1#,2#
main73023-30020-A0i200809-200909
IVORY,TRIM0#
main73023-30020-A1i200909-201112
IVORY,TRIM0#
main73023-30020-B0i200809-201112
LT.GRAY,TRIM1#,2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-30010-A2i200709-200809
IVORY,TRIM0#
main73024-30010-B2i200709-200809
LT.GRAY,TRIM1#,2#
main73024-30010-B5i200501-200709
GRAY,TRIM1#,2#
main73024-30020-A0i200809-200909
IVORY,TRIM0#
main73024-30020-A1i200909-201112
IVORY,TRIM0#
main73024-30020-B0i200809-201112
LT.GRAY,TRIM1#,2#
73173COVER, FRONT SEAT BELT HOLE, RH
main73173-30060-A0i200501-200704
IVORY,TRIM0#
main73173-30060-B0i200501-200704
GRAY,TRIM1#
main73173-30060-C0i200501-200704
BLACK,TRIM2#
73174COVER, FRONT SEAT BELT HOLE, LH
main73174-30060-A0i200501-200704
IVORY,TRIM0#
main73174-30060-B0i200501-200704
GRAY,TRIM1#
main73174-30060-C0i200501-200704
BLACK,TRIM2#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-51020×2i200501-200709
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-30A60-A0i200501-200507
IVORY,TRIM0#,MODEL NO. 7M7190-P
main73210-30A60-B0i200501-200507
GRAY,TRIM1#,MODEL NO. 7M7190-P
main73210-30A60-C0i200501-200507
BLACK,TRIM2#,MODEL NO. 7M7190-P
main73210-30A80-A0i200501-200507
IVORY,TRIM0#,MODEL NO. 7M7210-P
main73210-30A80-B0i200501-200507
GRAY,TRIM1#,MODEL NO. 7M7210-P
main73210-30A80-C0i200501-200507
BLACK,TRIM2#,MODEL NO. 7M7210-P
main73210-30B20-A0i200507-200709
IVORY,TRIM0#,MODEL NO. 7Q1620-P
main73210-30B20-B0i200507-200709
GRAY,TRIM1#,MODEL NO. 7Q1620-P
main73210-30B20-B1i200709-200808
GRAY,TRIM1#
main73210-30B20-C0i200507-200709
BLACK,TRIM2#,MODEL NO. 7Q1620-P
main73210-30B20-C1i200709-200808
BLACK,TRIM2#
main73210-30B40-A0i200507-200709
IVORY,TRIM0#,MODEL NO. 7Q1650-P
main73210-30B40-B0i200507-200709
GRAY,TRIM1#,MODEL NO. 7Q1650-P
main73210-30B40-B1i200709-200808
GRAY,TRIM1#
main73210-30B40-C0i200507-200709
BLACK,TRIM2#,MODEL NO. 7Q1650-P
main73210-30B40-C1i200709-200808
BLACK,TRIM2#
main73210-30D30-A0i200809-200909
IVORY,TRIM0#
main73210-30D30-A1i200909-201112
IVORY,TRIM0#
main73210-30D30-B0i200809-200909
GRAY,TRIM1#
main73210-30D30-B3i200912-201112
GRAY/LT.GRAY,TRIM1#
main73210-30D30-C0i200809-200909
BLACK,TRIM2#
main73210-30D30-C2i200909-201112
BLACK,TRIM2#
main73210-30D50-A0i200809-200908
FRONT SEAT BELT-TENSION REDUCED,IVORY,TRIM0#; IVORY,TRIM0#
main73210-30D50-B0i200809-200908
FRONT SEAT BELT-TENSION REDUCED,GRAY,TRIM1#; GRAY,TRIM1#
main73210-30D50-C0i200809-200908
BLACK,TRIM2#; FRONT SEAT BELT-TENSION REDUCED,BLACK,TRIM2#
main73210-30D51-A0i200909-200912
FRONT SEAT BELT-TENSION REDUCED,IVORY,TRIM00; IVORY,TRIM00
main73210-30D51-A1i200909-200912
FRONT SEAT BELT-TENSION REDUCED,IVORY,TRIM02; IVORY,TRIM02
main73210-30D51-B0i200909-200912
FRONT SEAT BELT-TENSION REDUCED,GRAY,TRIM10; GRAY,TRIM10
main73210-30D51-B3i200909-200912
FRONT SEAT BELT-TENSION REDUCED,GRAY/LT.GRAY,TRIM10; GRAY/LT.GRAY,TRIM10
main73210-30D51-C2i200909-200912
BLACK,TRIM2#; FRONT SEAT BELT-TENSION REDUCED,BLACK,TRIM2#
main73210-30E70-C0i200912-201112
BLACK/LT.GRAY,TRIM2#
main73210-30A00-A0i200501-200507
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#,MODEL NO. 7M3570-P
main73210-30A00-B0i200501-200507
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#,MODEL NO. 7M3570-P
main73210-30A00-C0i200501-200507
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#,MODEL NO. 7M3570-P
main73210-30A10-A0i200501-200507
CHINA SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM03,MODEL NO. 7M3580-P
main73210-30A10-B0i200501-200507
CHINA SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM13,MODEL NO. 7M3580-P
main73210-30A10-C0i200501-200507
CHINA SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM28,MODEL NO. 7M3580-P
main73210-30A70-A0i200501-200507
CHINA SPEC,IVORY,TRIM0#,MODEL NO. 7M7200-P
main73210-30A70-B0i200501-200507
CHINA SPEC,GRAY,TRIM1#,MODEL NO. 7M7200-P
main73210-30A70-C0i200501-200507
CHINA SPEC,BLACK,TRIM2#,MODEL NO. 7M7200-P
main73210-30B00-A0i200709-200808
TAIWAN SPEC,IVORY,TRIM0#
main73210-30B00-B1i200709-200808
TAIWAN SPEC,GRAY,TRIM1#
main73210-30B00-C1i200709-200808
TAIWAN SPEC,BLACK,TRIM2#
main73210-30B10-A0i200709-200808
IVORY,TRIM0#; PHILIPPINE SPEC,IVORY,TRIM0#
main73210-30B10-B0i200607-200709
PHILIPPIN SPEC,GRAY,TRIM1#,MODEL NO. 7Q1600-P
main73210-30B10-B1i200709-200808
GRAY,TRIM1#; PHILIPPINE SPEC,GRAY,TRIM1#
main73210-30B10-C0i200607-200709
PHILIPPIN SPEC,BLACK,TRIM2#,MODEL NO. 7Q1600-P
main73210-30B10-C1i200709-200808
BLACK,TRIM2#; PHILIPPINE SPEC,BLACK,TRIM2#
main73210-30B30-A0i200709-200809
CHINA SPEC,IVORY,TRIM0#; IVORY,TRIM0#
main73210-30B30-B0i200507-200709
CHINA SPEC,GRAY,TRIM1#,MODEL NO. 7Q1640-P
main73210-30B30-B1i200709-200809
CHINA SPEC,GRAY,TRIM1#; GRAY,TRIM1#
main73210-30B30-C0i200507-200709
CHINA SPEC,BLACK,TRIM2#,MODEL NO. 7Q1640-P
main73210-30B30-C1i200709-200809
BLACK,TRIM2#; CHINA SPEC,BLACK,TRIM2#
main73210-30B50-A0i200709-200809
TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#
main73210-30B50-B1i200709-200809
TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#
main73210-30B50-C1i200709-200809
TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#
main73210-30B60-A0supersedes 73210-30B10-A0i200507-200709
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#,MODEL NO. 7Q1590-P
main73210-30B60-B0supersedes 73210-30B10-B0i200507-200709
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#,MODEL NO. 7Q1590-P
main73210-30B60-B1supersedes 73210-30B10-B1i200709-200808
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#
main73210-30B60-C0supersedes 73210-30B10-C0i200507-200709
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#,MODEL NO. 7Q1590-P
main73210-30B60-C1supersedes 73210-30B10-C1i200709-200808
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#
main73210-30B70-A0i200507-200709
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#,MODEL NO. 7Q1610-P
main73210-30B70-B0i200507-200709
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#,MODEL NO. 7Q1610-P
main73210-30B70-B1i200709-200808
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#
main73210-30B70-C0i200507-200709
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#,MODEL NO. 7Q1610-P
main73210-30B70-C1i200709-200808
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#
main73210-30B80-A0supersedes 73210-30B30-A0i200507-200709
CHINA SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#,MODEL NO. 7Q1630-P
main73210-30B80-B0supersedes 73210-30B30-B1i200507-200709
CHINA SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#,MODEL NO. 7Q1630-P
main73210-30B80-C0supersedes 73210-30B30-C1i200507-200709
CHINA SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#,MODEL NO. 7Q1630-P
main73210-30D10-A0i200809-200909
CHINA SPEC&FRONT SEAT BELT-TENSION REDUCED,IVORY,TRIM0#
main73210-30D10-A1i201007-201112
CHINA SPEC,IVORY,TRIM0#
main73210-30D10-B0i200809-200909
CHINA SPEC&FRONT SEAT BELT-TENSION REDUCED,GRAY,TRIM1#
main73210-30D10-B3i201007-201112
CHINA SPEC,GRAY/LT.GRAY,TRIM1#
main73210-30D10-C0i200809-200909
CHINA SPEC&FRONT SEAT BELT-TENSION REDUCED,BLACK,TRIM2#
main73210-30D10-C2i201007-201112
CHINA SPEC,BLACK,TRIM2#
main73210-30D20-A0i200809-200909
CHINA SPEC&FRONT SEAT BELT-PRE-COLLISION & TENSION REDUCED,IVORY,TRIM0#
main73210-30D20-A1i201007-201112
CHINA SPEC&PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA,IVORY,TRIM0#
main73210-30D20-B0i200809-200909
CHINA SPEC&FRONT SEAT BELT-PRE-COLLISION & TENSION REDUCED,GRAY,TRIM1#
main73210-30D20-B2i201007-201112
CHINA SPEC&PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA,GRAY/LT.GRAY,TRIM1#
main73210-30D20-C0i200809-200909
CHINA SPEC&FRONT SEAT BELT-PRE-COLLISION & TENSION REDUCED,BLACK,TRIM2#
main73210-30D20-C2i200909-201007
CHINA SPEC&FRONT SEAT BELT-PRE-COLLISION & TENSION REDUCED,BLACK,TRIM2#
main73210-30D40-A0i200809-200909
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#; THAILAND SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#
main73210-30D40-A1i200909-201112
PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA,IVORY,TRIM0#; THAILAND SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#
main73210-30D40-B0i200809-200909
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#; THAILAND SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#
main73210-30D40-B3i200909-201112
PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA,GRAY/LT.GRAY,TRIM1#; THAILAND SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY/LT.GRAY,TRIM1#
main73210-30D40-C0i200809-200909
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#; THAILAND SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#
main73210-30D40-C2i200909-201112
PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA,BLACK,TRIM2#; THAILAND SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#
main73210-30D60-A0i200809-200908
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#
main73210-30D60-B0i200809-200908
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#
main73210-30D60-C0i200809-200908
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#
main73210-30D61i200909-200912
PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA
main73210-30E10-A0supersedes 73210-30E00-A0i200809-200908
FRONT SEAT BELT-PRE-COLLISION,IVORY,TRIM0#
main73210-30E10-B0supersedes 73210-30E00-B0i200809-200908
FRONT SEAT BELT-PRE-COLLISION,GRAY,TRIM1#
main73210-30E10-C0supersedes 73210-30E00-C0i200809-200908
FRONT SEAT BELT-PRE-COLLISION,BLACK,TRIM2#
main73210-30E11-A0supersedes 73210-30E70-A0i200909-200912
FRONT SEAT BELT-PRE-COLLISION,IVORY,TRIM0#
main73210-30E11-B0supersedes 73210-30E70-B0i200909-200912
FRONT SEAT BELT-PRE-COLLISION,GRAY,TRIM1#
main73210-30E80-A0i201007-201112
PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA,IVORY,TRIM0#
main73210-30E80-B0i201007-201112
PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA,GRAY/LT.GRAY,TRIM1#
main73210-30E80-C0i200912-201007
FRONT SEAT BELT-PRE-COLLISION,BLACK/LT.GRAY,TRIM2#
main73210-3A040-A0supersedes 73210-30B10-A0i200501-200507
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#,MODEL NO. 7M3560-P
main73210-3A040-B0supersedes 73210-30B10-B0i200501-200507
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#,MODEL NO. 7M3560-P
main73210-3A040-C0supersedes 73210-30B10-C0i200501-200507
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#,MODEL NO. 7M3560-P
73219STOPPER, TONGUE PLATE
main73219-33010i200709
BLACK
main73219-33020i200709
GRAY
main73219-33030i200709
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-30A60-A0i200501-200507
IVORY,TRIM0#,MODEL NO. 7M8190-P
main73220-30A60-B0i200501-200507
GRAY,TRIM1#,MODEL NO. 7M8190-P
main73220-30A60-C0i200501-200507
BLACK,TRIM2#,MODEL NO. 7M8190-P
main73220-30A80-A0i200501-200507
IVORY,TRIM0#,MODEL NO. 7M8210-P
main73220-30A80-B0i200501-200507
GRAY,TRIM1#,MODEL NO. 7M8210-P
main73220-30A80-C0i200501-200507
BLACK,TRIM2#,MODEL NO. 7M8210-P
main73220-30B20-A0i200709-200808
IVORY,TRIM0#
main73220-30B20-B0i200507-200709
GRAY,TRIM1#,MODEL NO. 7Q2620-P
main73220-30B20-B1i200709-200808
GRAY,TRIM1#
main73220-30B20-C0i200507-200709
BLACK,TRIM2#,MODEL NO. 7Q2620-P
main73220-30B20-C1i200709-200808
BLACK,TRIM2#
main73220-30B30-A0i200709-200809
CHINA SPEC,IVORY,TRIM0#; IVORY,TRIM0#
main73220-30B30-B1i200709-200809
CHINA SPEC,GRAY,TRIM1#; GRAY,TRIM1#
main73220-30B30-C1i200709-200809
BLACK,TRIM2#; CHINA SPEC,BLACK,TRIM2#
main73220-30B40-A0i200709-200808
IVORY,TRIM0#
main73220-30B40-B0i200507-200709
GRAY,TRIM1#,MODEL NO. 7Q2650-P
main73220-30B40-B1i200709-200808
GRAY,TRIM1#
main73220-30B40-C0i200507-200709
BLACK,TRIM2#,MODEL NO. 7Q2650-P
main73220-30B40-C1i200709-200808
BLACK,TRIM2#
main73220-30C90-A0i200809-200908
IVORY,TRIM0#
main73220-30C90-B0i200809-200908
GRAY,TRIM1#
main73220-30C90-C0i200809-200908
BLACK,TRIM2#
main73220-30C91-A1i200909-200912
IVORY,TRIM0#
main73220-30C91-B3i200909-200912
GRAY/LT.GRAY,TRIM1#
main73220-30C91-C2i200909-200912
BLACK,TRIM2#
main73220-30D10-A0i200809-200909
FRONT SEAT BELT-TENSION REDUCED,IVORY,TRIM0#; IVORY,TRIM0#
main73220-30D10-A1i200912-201112
IVORY,TRIM0#
main73220-30D10-B0i200809-200909
FRONT SEAT BELT-TENSION REDUCED,GRAY,TRIM1#; GRAY,TRIM1#
main73220-30D10-B3i200909-201112
GRAY/LT.GRAY,TRIM1#
main73220-30D10-C0i200809-200909
BLACK,TRIM2#; FRONT SEAT BELT-TENSION REDUCED,BLACK,TRIM2#
main73220-30D10-C2i200909-201112
BLACK,TRIM2#
main73220-30D40-A1i200909-201112
IVORY,TRIM0#
main73220-30D40-B2i200909-201112
GRAY/LT.GRAY,TRIM1#
main73220-30D40-C2i200909-201112
BLACK,TRIM2#
main73220-30890-A0supersedes 73220-30B10-A0i200501-200507
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#,MODEL NO. 7M4560-P
main73220-30890-B0supersedes 73220-30B10-B0i200501-200507
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#,MODEL NO. 7M4560-P
main73220-30890-C0supersedes 73220-30B10-C0i200501-200507
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#,MODEL NO. 7M4560-P
main73220-30A00-A0i200501-200507
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#,MODEL NO. 7M4570-P
main73220-30A00-B0i200501-200507
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#,MODEL NO. 7M4570-P
main73220-30A00-C0i200501-200507
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#,MODEL NO. 7M4570-P
main73220-30A10-A0i200501-200507
CHINA SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM03,MODEL NO. 7M4580-P
main73220-30A10-B0i200501-200507
CHINA SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM13,MODEL NO. 7M4580-P
main73220-30A10-C0i200501-200507
CHINA SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM28,MODEL NO. 7M4580-P
main73220-30A70-A0i200501-200507
CHINA SPEC,IVORY,TRIM0#,MODEL NO. 7M8200-P
main73220-30A70-B0i200501-200507
CHINA SPEC,GRAY,TRIM1#,MODEL NO. 7M8200-P
main73220-30A70-C0i200501-200507
CHINA SPEC,BLACK,TRIM2#,MODEL NO. 7M8200-P
main73220-30B00-A0i200709-200808
TAIWAN SPEC,IVORY,TRIM0#
main73220-30B00-B1i200709-200808
TAIWAN SPEC,GRAY,TRIM1#
main73220-30B00-C1i200709-200808
TAIWAN SPEC,BLACK,TRIM2#
main73220-30B10-A0i200709-200808
IVORY,TRIM0#; PHILIPPINE SPEC,IVORY,TRIM0#
main73220-30B10-B0i200607-200709
PHILIPPIN SPEC,GRAY,TRIM1#,MODEL NO. 7Q2600-P
main73220-30B10-B1i200709-200808
GRAY,TRIM1#; PHILIPPINE SPEC,GRAY,TRIM1#
main73220-30B10-C0i200607-200709
PHILIPPIN SPEC,BLACK,TRIM2#,MODEL NO. 7Q2600-P
main73220-30B10-C1i200709-200808
BLACK,TRIM2#; PHILIPPINE SPEC,BLACK,TRIM2#
main73220-30B30-B0i200507-200709
CHINA SPEC,GRAY,TRIM1#,MODEL NO. 7Q2640-P
main73220-30B30-C0i200507-200709
CHINA SPEC,BLACK,TRIM2#,MODEL NO. 7Q2640-P
main73220-30B50-A0i200709-200809
TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#
main73220-30B50-B1i200709-200809
TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#
main73220-30B50-C1i200709-200809
TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#
main73220-30B60-A0supersedes 73220-30B10-A0i200507-200709
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#,MODEL NO. 7Q2590-P
main73220-30B60-B0supersedes 73220-30B10-B0i200507-200709
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#,MODEL NO. 7Q2590-P
main73220-30B60-B1supersedes 73220-30B10-B1i200709-200808
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#
main73220-30B60-C0supersedes 73220-30B10-C0i200507-200709
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#,MODEL NO. 7Q2590-P
main73220-30B60-C1supersedes 73220-30B10-C1i200709-200808
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#
main73220-30B70-A0i200709-200808
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#
main73220-30B70-B0i200507-200709
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#,MODEL NO. 7Q2610-P
main73220-30B70-B1i200709-200808
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#
main73220-30B70-C0i200507-200709
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#,MODEL NO. 7Q2610-P
main73220-30B70-C1i200709-200808
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#
main73220-30B80-A0i200507-200709
CHINA SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#,MODEL NO. 7Q2630-P
main73220-30B80-B0i200507-200709
CHINA SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#,MODEL NO. 7Q2630-P
main73220-30B80-C0i200507-200709
CHINA SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#,MODEL NO. 7Q2630-P
main73220-30C70-A0supersedes 73220-30D40-A0i200809-200909
CHINA SPEC&FRONT SEAT BELT-TENSION REDUCED,IVORY,TRIM0#
main73220-30C70-A1i201007-201112
CHINA SPEC,IVORY,TRIM0#
main73220-30C70-B0supersedes 73220-30D40-B0i200809-200909
CHINA SPEC&FRONT SEAT BELT-TENSION REDUCED,GRAY,TRIM1#
main73220-30C70-B3i201007-201112
CHINA SPEC,GRAY/LT.GRAY,TRIM1#
main73220-30C70-C0supersedes 73220-30D40-C0i200809-200909
CHINA SPEC&FRONT SEAT BELT-TENSION REDUCED,BLACK,TRIM2#
main73220-30C70-C2i200909-201007
CHINA SPEC&FRONT SEAT BELT-TENSION REDUCED,BLACK,TRIM2#
main73220-30C80-A0supersedes 73220-30D40-A0i200809-200909
CHINA SPEC&FRONT SEAT BELT-PRE-COLLISION & TENSION REDUCED,IVORY,TRIM0#
main73220-30C80-A1i200909-201007
CHINA SPEC&FRONT SEAT BELT-PRE-COLLISION & TENSION REDUCED,IVORY,TRIM0#
main73220-30C80-B0supersedes 73220-30D40-B0i200809-200909
CHINA SPEC&FRONT SEAT BELT-PRE-COLLISION & TENSION REDUCED,GRAY,TRIM1#
main73220-30C80-B2i201007-201112
CHINA SPEC&PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA,GRAY/LT.GRAY,TRIM1#
main73220-30C80-C0supersedes 73220-30D40-C0i200809-200909
CHINA SPEC&FRONT SEAT BELT-PRE-COLLISION & TENSION REDUCED,BLACK,TRIM2#
main73220-30C80-C2i200909-201007
CHINA SPEC&FRONT SEAT BELT-PRE-COLLISION & TENSION REDUCED,BLACK,TRIM2#
main73220-30D00-A0i200809-200908
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#; THAILAND SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#
main73220-30D00-B0i200809-200908
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#; THAILAND SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#
main73220-30D00-C0i200809-200908
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#; THAILAND SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#
main73220-30D01-A0i200909-200912
PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA,IVORY,TRIM00; THAILAND SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM00
main73220-30D01-A1i200909-200912
PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA,IVORY,TRIM02; THAILAND SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM02
main73220-30D01-B0i200909-200912
PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA,GRAY,TRIM10; THAILAND SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM10
main73220-30D01-B3i200909-200912
PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA,GRAY/LT.GRAY,TRIM10; THAILAND SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY/LT.GRAY,TRIM10
main73220-30D20-A0i200809-200909
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#
main73220-30D20-A1i200912-201112
PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA,IVORY,TRIM0#; THAILAND SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,IVORY,TRIM0#
main73220-30D20-B0i200809-200909
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY,TRIM1#
main73220-30D20-B3i200912-201112
PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA,GRAY/LT.GRAY,TRIM1#; THAILAND SPEC&PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,GRAY/LT.GRAY,TRIM1#
main73220-30D20-C0i200809-200909
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE,BLACK,TRIM2#
main73220-30D20-C2i200909-201112
PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA,BLACK,TRIM2#
main73220-30D50-A0supersedes 73220-30D40-A0i200809-200909
FRONT SEAT BELT-PRE-COLLISION,IVORY,TRIM0#
main73220-30D50-A1i201007-201112
PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA,IVORY,TRIM0#
main73220-30D50-B0supersedes 73220-30D40-B0i200809-200909
FRONT SEAT BELT-PRE-COLLISION,GRAY,TRIM1#
main73220-30D50-B1i200909-201007
FRONT SEAT BELT-PRE-COLLISION,GRAY/LT.GRAY,TRIM1#
main73220-30D50-C0supersedes 73220-30D40-C0i200809-200909
FRONT SEAT BELT-PRE-COLLISION,BLACK,TRIM2#
main73220-30D50-C1i200909-201007
FRONT SEAT BELT-PRE-COLLISION,BLACK,TRIM2#
73223COVER, SEAT BELT RETRACTOR
main73223-30070i200501-200709
73223DCOVER, FRONT SEAT BELT RETRACTOR, RH
main73223-30110i200501-200507
main73223-30120i200507-200709
main73223-30100i200501-200507
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
main73224-30080i200501-200507
main73224-30090i200507-200709
main73224-30070i200501-200507
PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-30A10-A0i200709-200909
IVORY,TRIM0#
main73230-30A10-A1i200909-201112
IVORY,TRIM0#
main73230-30A10-B0i200501-200709
GRAY,TRIM1#
main73230-30A10-B1i200709-201112
LT.GRAY,TRIM1#
main73230-30A10-C0i200501-200709
BLACK,TRIM2#
main73230-30A20-A0i200501-200709
IVORY,TRIM0#
main73230-30A20-A1i200909-201112
IVORY,TRIM0#
main73230-30A20-B0i200501-200709
GRAY,TRIM1#
main73230-30A20-B1i200709-201112
LT.GRAY,TRIM1#
main73230-30A20-C0i200501-200709
BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-30A10-A0i200501-200709
IVORY,TRIM0#
main73230-30A10-A1i200909-201112
IVORY,TRIM0#
main73230-30A10-B0i200501-200709
GRAY,TRIM1#
main73230-30A10-B1i200709-201112
LT.GRAY,TRIM1#
main73230-30A10-C0i200501-200709
BLACK,TRIM2#
main73230-30A20-A0i200501-200709
IVORY,TRIM0#
main73230-30A20-A1i200909-201112
IVORY,TRIM0#
main73230-30A20-B0i200501-200709
GRAY,TRIM1#
main73230-30A20-B1i200709-201112
LT.GRAY,TRIM1#
main73230-30A20-C0i200709-201112
BLACK,TRIM2#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511058
main90105-11058
9017911010
main90179-11010
9017911018
main90179-11018
91511B0610
main91511-B0610
91511B0614
main91511-B0614
91512G1025
main91512-G1025
9155380612
main91553-80612

22 parts on this diagram · 2 diagrams in section

SEAT BELT & CHILD RESTRAINT SEAT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
