04641DAM KIT, BACK WINDOW GLASS

main56117-30350×2i200501-200709

NO.1

main56118-30090i200709

NO.2

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120×2i200501-200709

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050×2i200709

5701HOLE PLUG

→ Go to FIG 57-01

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-30270supersedes 63102-30260i200709-200902

MOON ROOF-WITH

main63102-30901supersedes 63102-30900i200903

MOON ROOF-WITH

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-30080i200501-200709

63111PANEL, ROOF

main63111-30630supersedes 63111-30620i200501-200709

MOON ROOF-WITH

main63111-30640i200909

CHINA SPEC

main63111-30650i200909-201007

CHINA SPEC&MOON ROOF-WITH

63118SUPPORT, ROOF PANEL, RH

main63118-30121i200501-200709

MOON ROOF-WITH

63119SUPPORT, ROOF PANEL, LH

main63118-30121i200501-200709

MOON ROOF-WITH

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-30040i200501-200709

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-30210i200501-200709

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-30120i200501-200709

MOON ROOF-WITH

63143AREINFORCEMENT, ROOF PANEL

main63143-30250i200501-200709

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-30180i200501-200709

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-30110×2i200501-200709

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-30110i200501-200709

MOON ROOF-WITH

63149EBRACKET, ROOF PANEL REINFORCEMENT, NO.2

main63149-30080×2i200501-200709

MOON ROOF-WITH

64101PANEL SUB-ASSY, UPPER BACK

main64101-30860i200501-200709

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-30050i200501-200705

main64206-30051i200705-200709

64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1

main64227-30120i200501-200709

64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2

main64228-30100i200501-200709

64811GLASS, BACK WINDOW

main64801-30A30supersedes 64801-30A50i200709

*UVCEHT,T=3.5,GREEN; *UVCEHT,T=3.5,GREEN,AUSTRALIA SPEC; *UVCEHT,T=3.5,GREEN,NEW ZEALAND SPEC; *UVCEHT,T=3.5,GREEN,TAIWAN SPEC

main64801-30A50i200709-200805

*UVCEHT,T=3.5,GREEN; *UVCEHT,T=3.5,GREEN,INDONESIA SPEC; *UVCEHT,T=3.5,GREEN,PHILIPPINE SPEC; *UVCEHT,T=3.5,GREEN,THAILAND SPEC

main64801-30A51i200806

*UVCEHT,T=3.5,GREEN; *UVCEHT,T=3.5,GREEN,PHILIPPINE SPEC

main64801-30A60i200501-200709

*UVCEHT,T=3.5,GREEN

main64801-30B20i200809-201007

*UVCEHT,T3.5,C.GREEN,CHINA SPEC&BACK GLASS-PRIVACY

main64801-30B40i200909-201101

*UVCEHT,T3.5,C.GREEN,INDONESIA SPEC&BACK GLASS-PRIVACY; *UVCEHT,T3.5,C.GREEN,MALAYSIA SPEC&BACK GLASS-PRIVACY; *UVCEHT,T3.5,C.GREEN,THAILAND SPEC&BACK GLASS-PRIVACY

main64801-30B41i201102

*UVCEHT,T3.5,C.GREEN,INDONESIA SPEC&BACK GLASS-PRIVACY; *UVCEHT,T3.5,C.GREEN,MALAYSIA SPEC&BACK GLASS-PRIVACY; *UVCEHT,T3.5,C.GREEN,PHILIPPINE SPEC&BACK GLASS-PRIVACY; *UVCEHT,T3.5,C.GREEN,SINGAPORE SPEC&BACK GLASS-PRIVACY; *UVCEHT,T3.5,C.GREEN,SOUTH AFRICA SPEC&BACK GLASS-PRIVACY; *UVCEHT,T3.5,C.GREEN,THAILAND SPEC&BACK GLASS-PRIVACY

75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1

main75571-30380i200501-200709

9017906274

main90179-06274

9046710018

main90467-10018

9151160612

main91511-60612

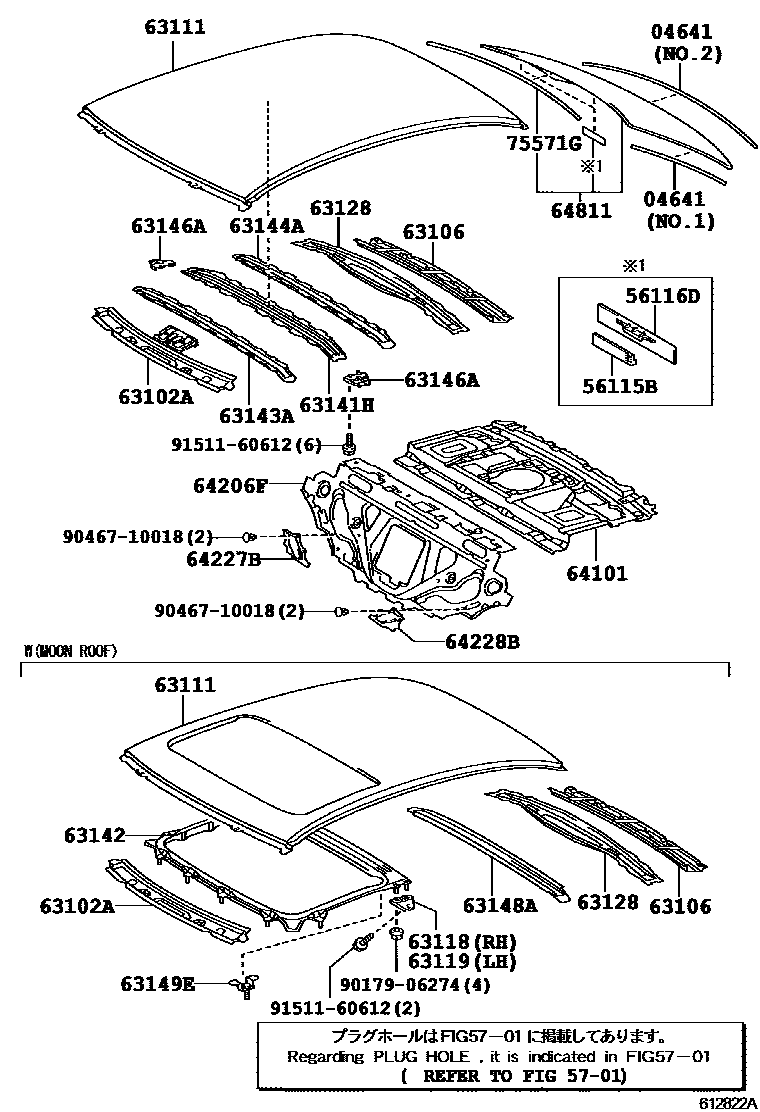

ROOF PANEL & BACK WINDOW GLASS
