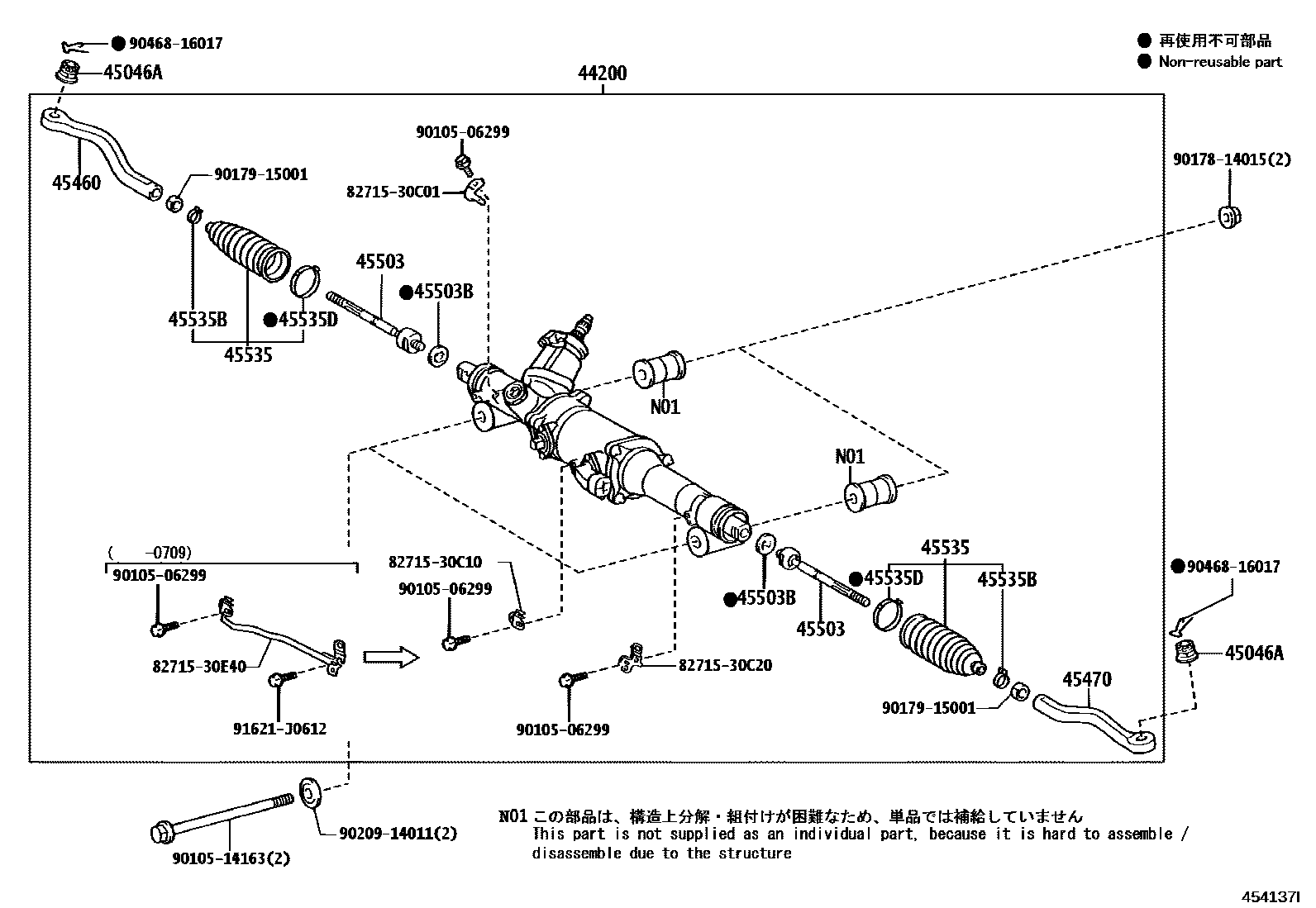

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1W(ACTIVE STABILIZER SUSPENSIO0004 1

44200LINK ASSY, POWER STEERING

main44200-30330iGRS190,UZS190..RHD200501-200505

main44200-30331iGRS190,UZS190..RHD200506-200607

main44200-30340iGRS190,UZS190..LHD200501-200607

main44200-30460iGRS190,UZS190..RHD200608-200709

main44200-30470iGRS190,UZS190..LHD200608-200709

main44200-30600iGRS190,URS190..RHD200709-201109

main44200-30610iGRS190,URS190,UZS190..LHD200709-201109

main44200-30640iGRS196200907-201109

main44200-30A50iGRS190,URS190..RHD201110-201112

main44200-30A60iGRS190,URS190..LHD201110-201112

main44200-30A90iGRS196201110-201112

main44200-30560iUZS190..LHD..EUR200607-200709

SPARE TIRE-WITHOUT

main44200-30620iURS190..LHD..EUR200709-201007

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002×2iGRS190,UZS190200501-200709

main90178-12017×2iGRS196200907

45460ROD ASSY, TIE, RH

main45460-39715iGRS196200907

main45463-30130iGRS190,URS190,UZS190200709

45470ROD ASSY, TIE, LH

main45464-30060iGRS190,UZS190200501-200709

main45470-39255iGRS196200907

45503END SUB-ASSY, STEERING RACK

main45503-30070×2iGRS190,UZS190200507-200709

main45503-30080×2iGRS196200907

main45503-30090×2iGRS190,UZS190200501-200507

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14011×2iGRS19#,URS190,UZS190200709

OD=40

45535BOOT, STEERING RACK, NO.1

main45535-30030×2iGRS190,UZS190200501-200709

main45535-59045×2iGRS19#,URS190201110-201112

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iGRS190,UZS190200501-200709

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016×2iGRS190,UZS190200501-200709

8271530C01BRACKET,WIRING HARNESS CLAMP

main82715-30C01

8271530C10BRACKET,WIRING HARNESS CLAMP

main82715-30C10

8271530C20BRACKET,WIRING HARNESS CLAMP

main82715-30C20

8271530E40BRACKET,WIRING HARNESS CLAMP

main82715-30E40

9010506299

main90105-06299

9010514163

main90105-14163

9017814015

main90178-14015

9017915001

main90179-15001

9020914011

main90209-14011

9046816017

main90468-16017

91621J0612

main91621-J0612

20 parts on this diagram · 4 diagrams in section
