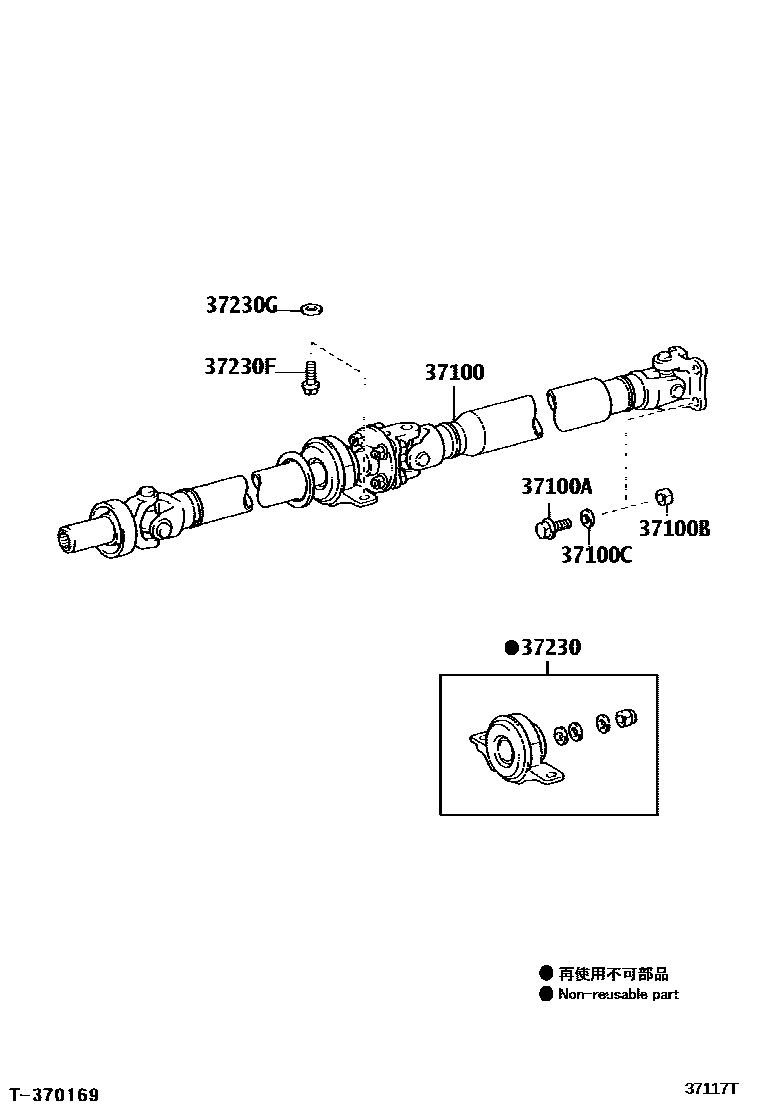

PROPELLER SHAFT & UNIVERSAL JOINT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
L=33
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
T=4.5
T=9.0
T=6.5
T=11.0
T=2.0
7 parts on this diagram · 4 diagrams in section
