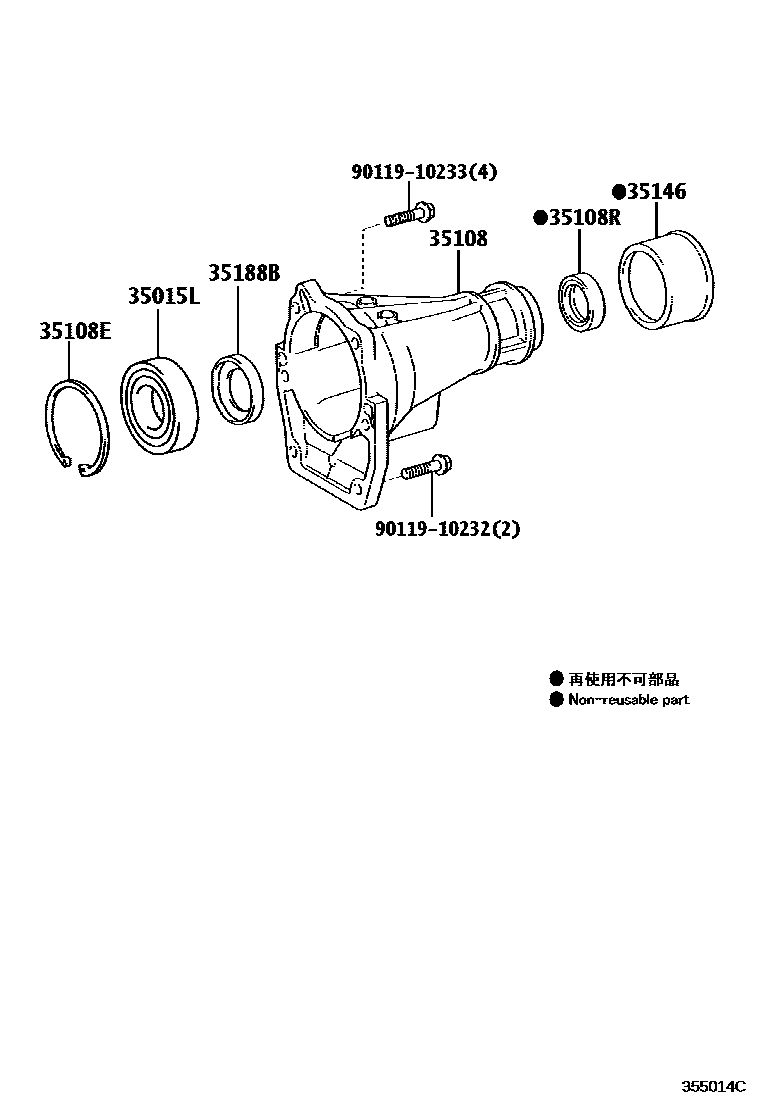

EXTENSION HOUSING (ATM)

0001 1A760E,A960E 0002 1A761E

35015LBEARING, RADIAL BALL(FOR TRANSMISSION CASE ADAPTER)

main90363-34001iGRS190..EUR200709-200803

main90363-34006iGRS190..EUR200803

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-30260iGRS190200501-200709

main35108-50030iUZS190200501-200709

35108ERING, HOLE SNAP (FOR ATM EXTENSION HOUSING)

main90521-66006iGRS190200709

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-40001iGRS190200709-200804

main90311-40034iGRS190200805

main90311-42024iUZS190200709-200809

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30020iGRS190200501-200709

35188BRETAINER, EXTENSION HOUSING BUSH

main35188-35020iGRS190200501-200709

9011910232

main90119-10232

9011910233

main90119-10233

8 parts on this diagram · 2 diagrams in section
